#540 ESP-12 DIY Dev Board

Building a programming board for the ESP8266 07/12 variants.



I have some ESP8266 modules in the ESP-7 and ESP-12E variants. They both work with adapter boards like this.

However, it turns out that programming them on a breadboard can be a bit flakey - mainly due to power/connection issues. See LEAP#534 ESP-12 Programming for the background.

So I decided to try a quick build of a programming board to see if performance was more reliable.

The result - excellent. Very reliable programming.

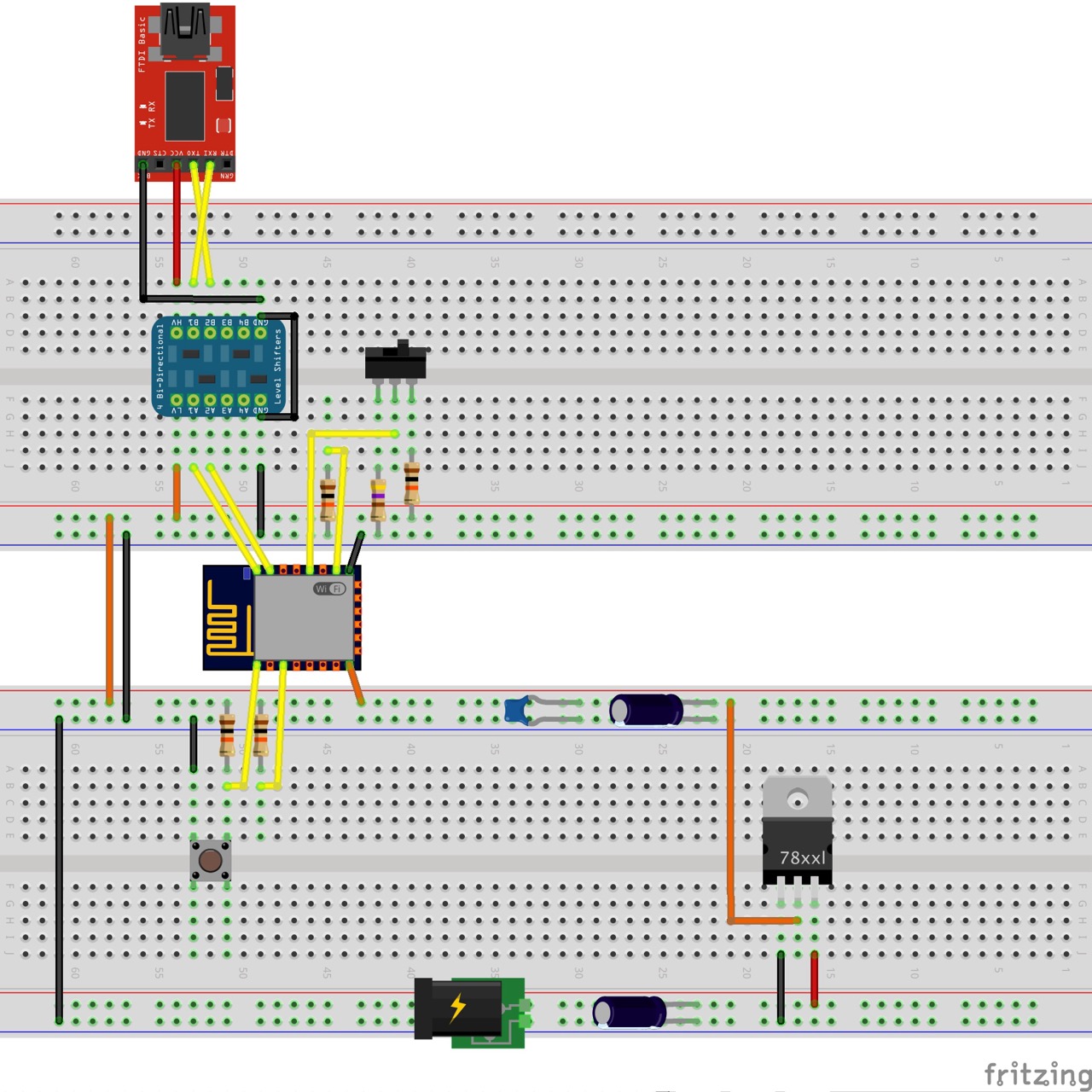

Circuit Design

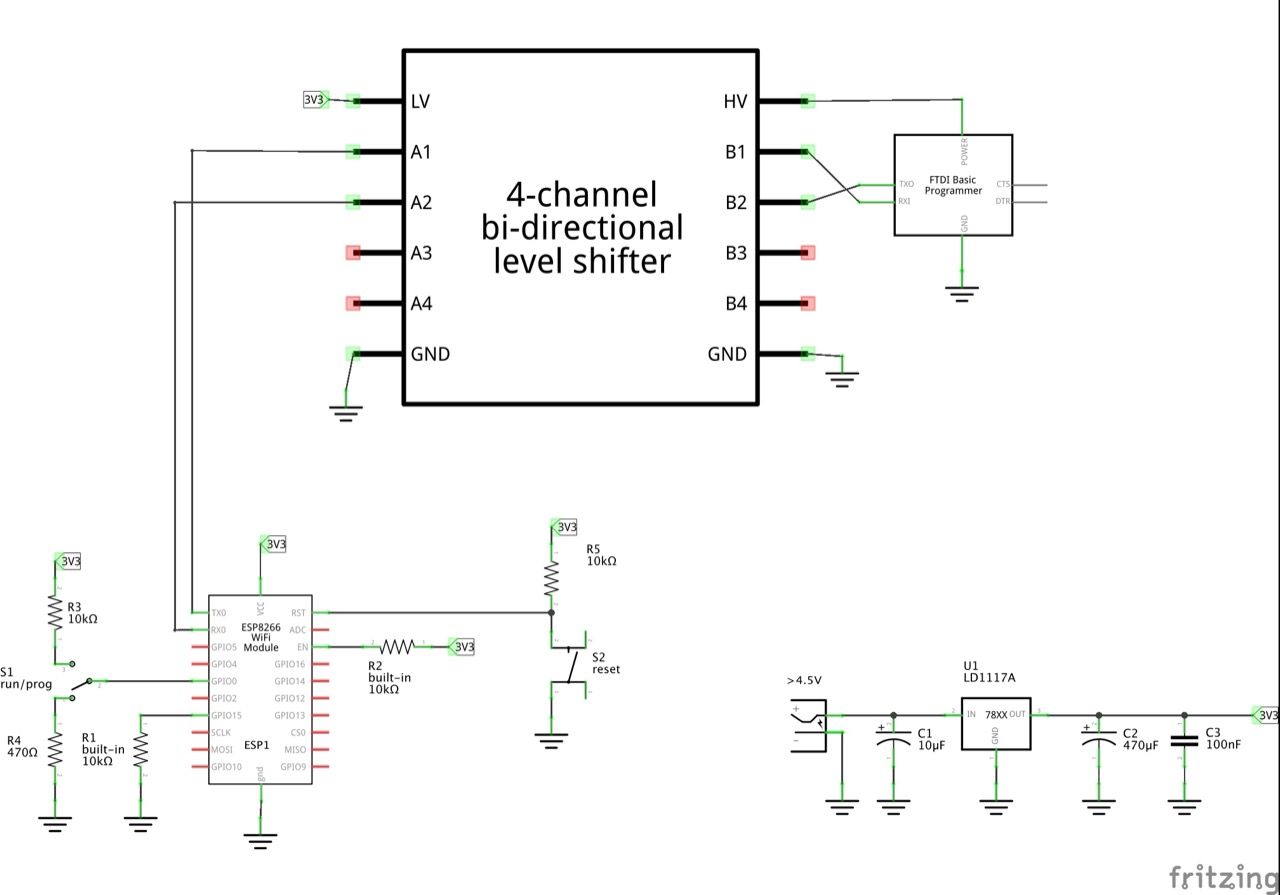

The circuit implements the recommended programming/runtime circuit. Note that some of the pull-up resistors are actually on the adapter board - these are marked as “built-in” in the schematic.



Protoboard Construction

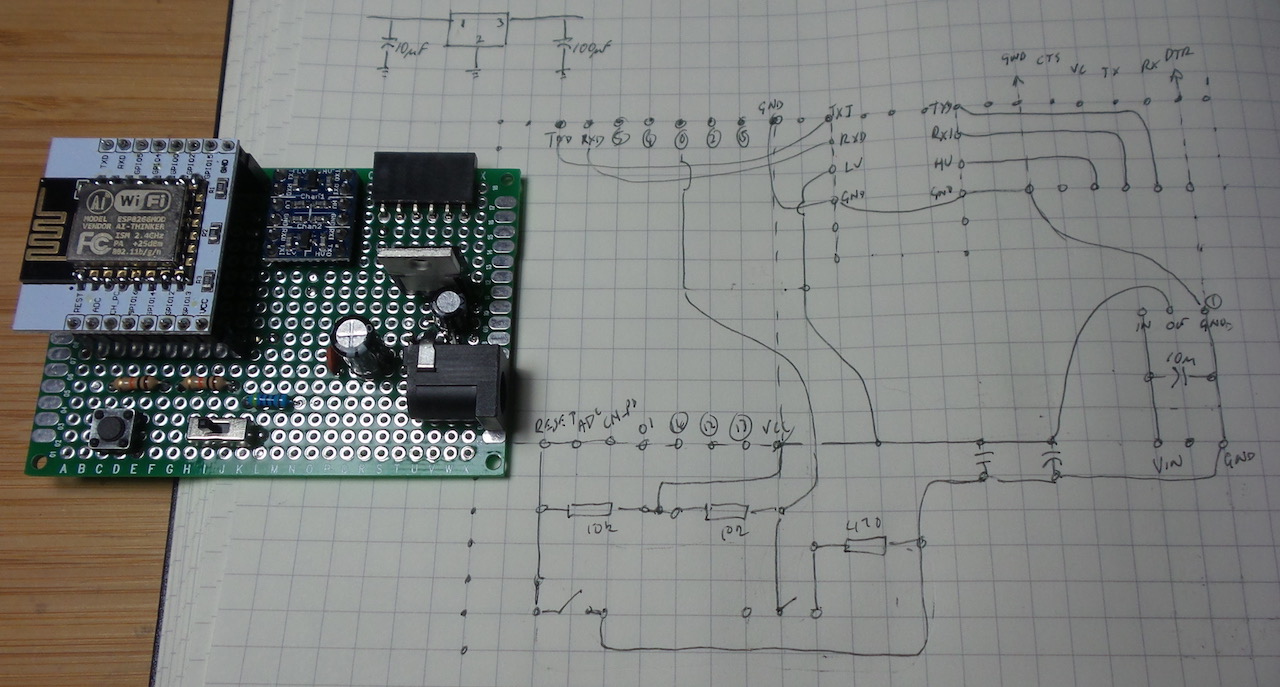

I used a piece of 5x7cm protoboard, with the circuit layed out as follows:

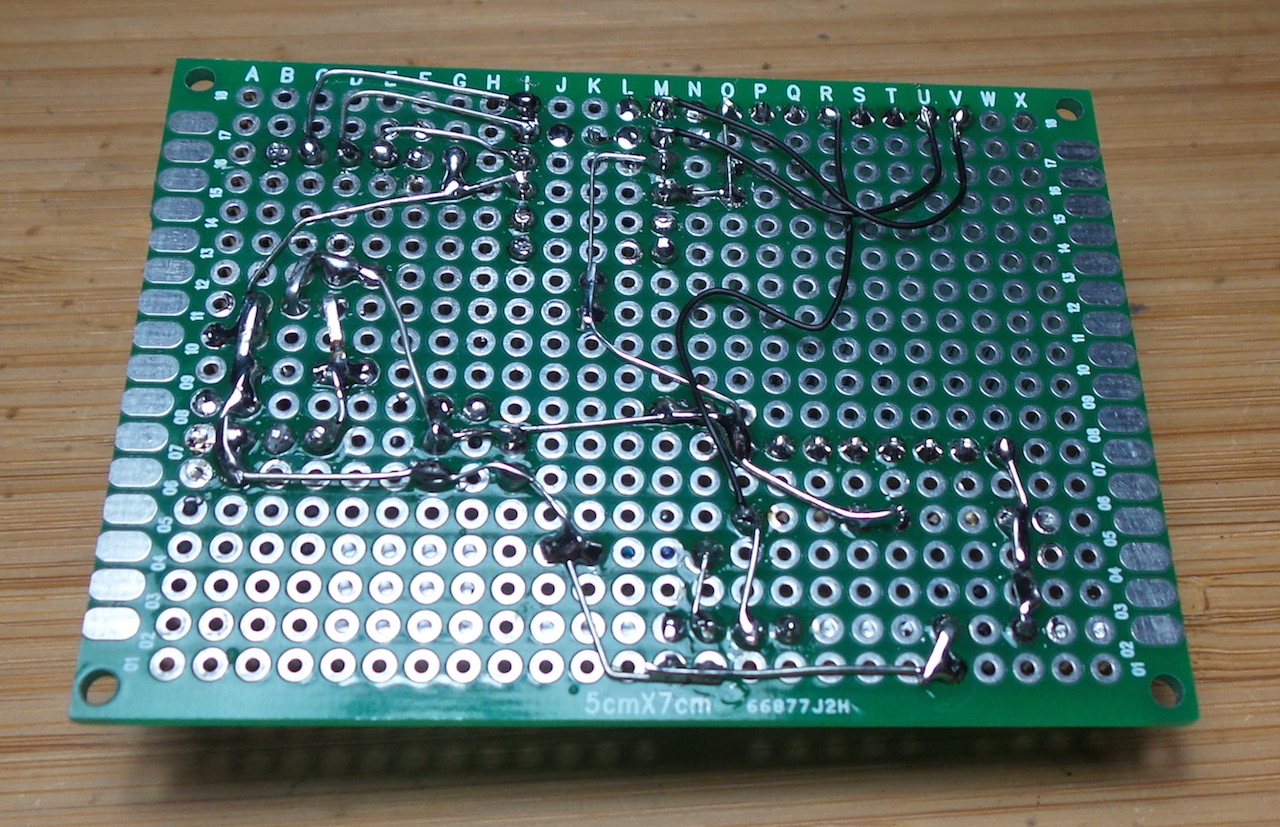

Some quick and dirty soldering..

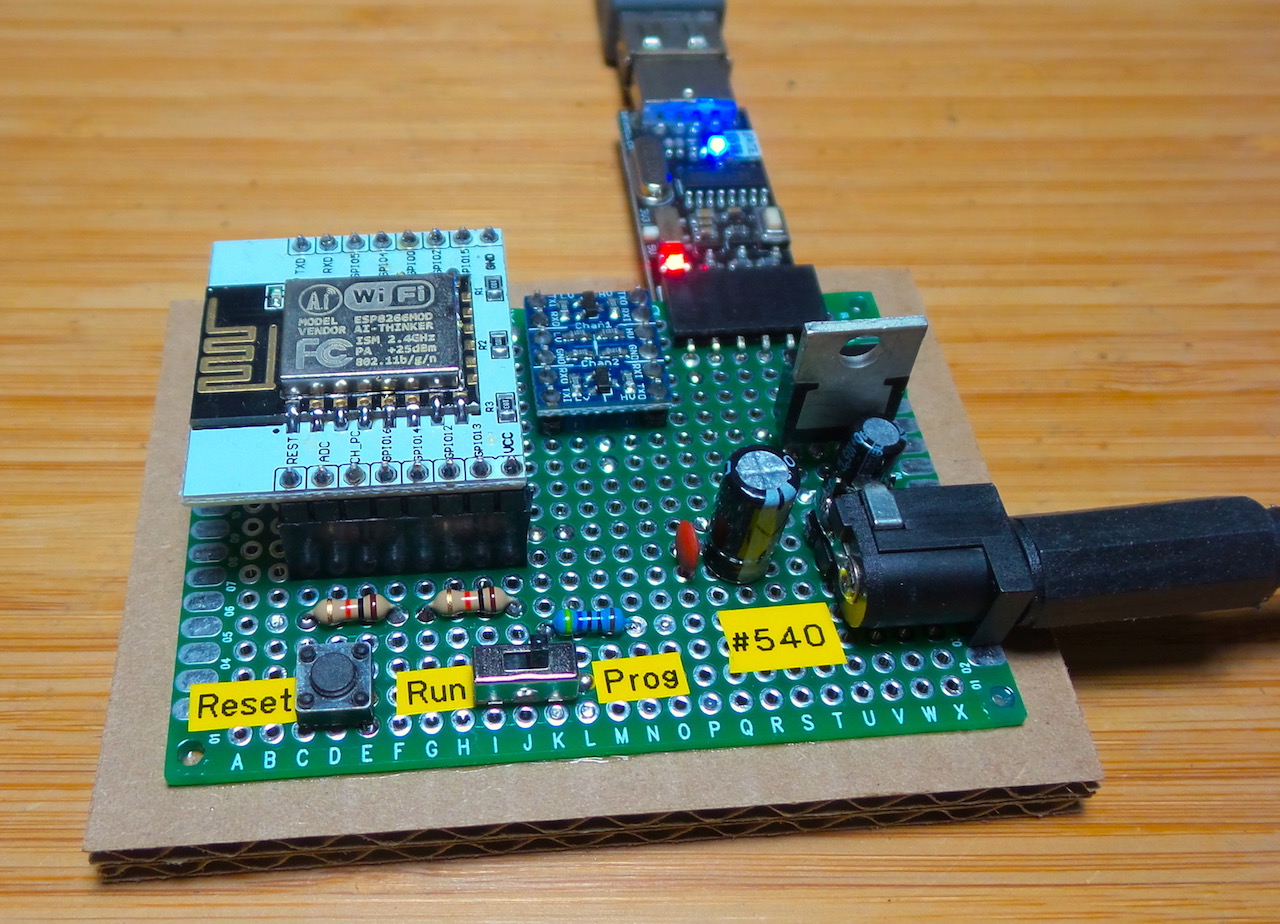

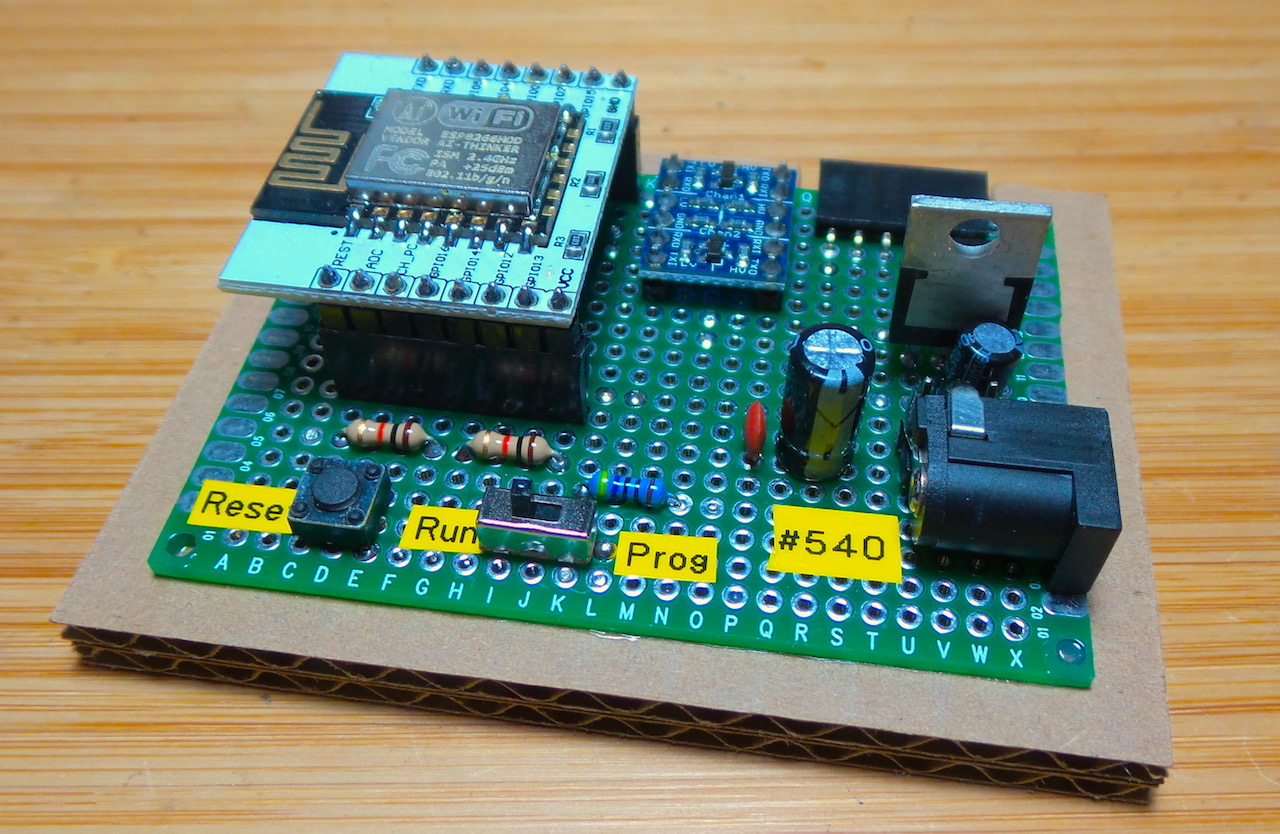

Final build, on a cardboard base:



The process:

  • seat the ESP-12 board
  • connect USB adapter
  • connect power >4.5V
  • set the “Run/Prog” switch to “Prog”
  • press “Reset” to reset the board into programming mode
  • upload the program

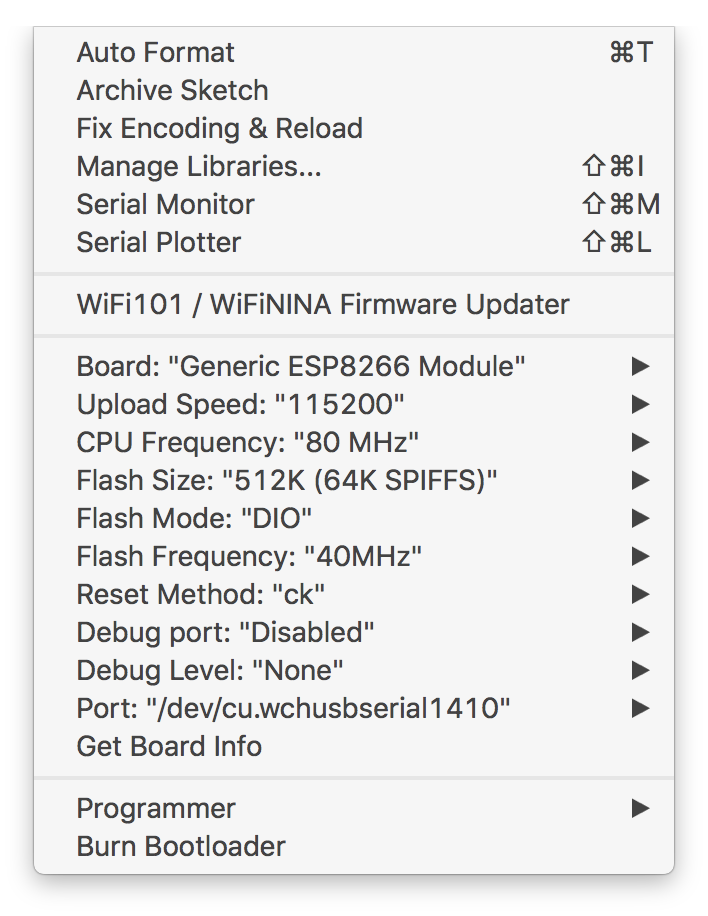

When using the Arduino IDE, the most recent settings I used were as follows:


Credits and References
