#744 MLA-30+ Active Loop Antenna

About the MLA-30+ Active Loop Antenna, designed to receive MW/SW/HF from 500kHz to 30MHz.

Build

Notes

The MLA-30+ Active Loop Antenna antenna is effective for reception across a wide frequency band from 500kHz to 30MHz.

I got mine from aliexpress for SGD$30 (2025), but it is available from a range of sellers on aliexpress, eBay, and Tecsun Radios (AU).

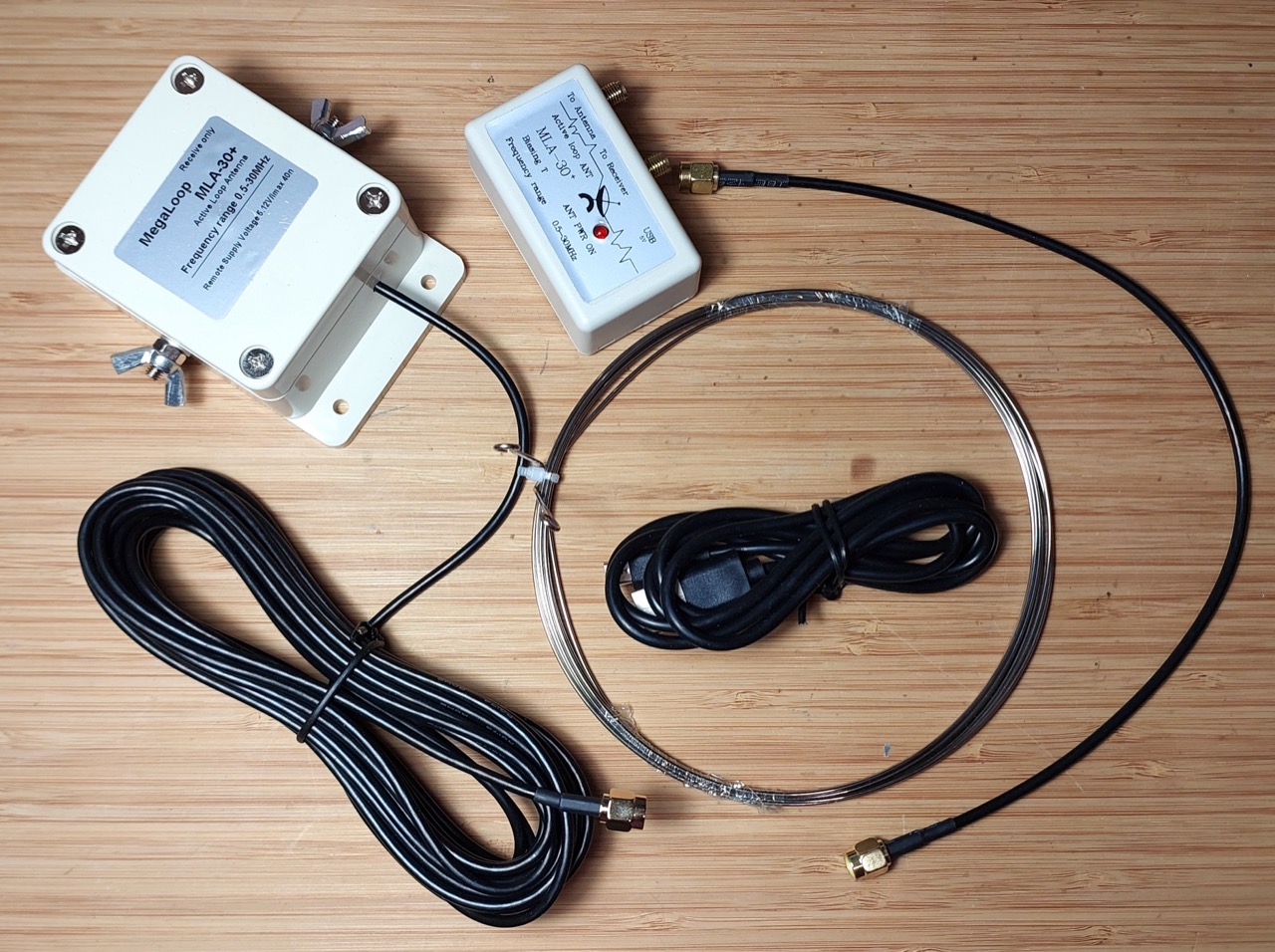

kit-parts

Features:

  • Reception frequency: 500 kHz to 30 MHz (reduced performance to 100kHz)
  • Pre-amplifier included
  • Bias-T power supply via supplied USB cable
  • Power Supply: 5 V USB
  • Current Drain: 750uA
  • No adjustments required
  • Weatherproof external case

Parts:

  • 1x Stainless Steel Wire
  • 1x Antenna Box
  • 1x Bias-T Power Supply
  • 1x 10m SMA Head Line
  • 1x SMA to SMA Male Cable
  • 1x USB Cable

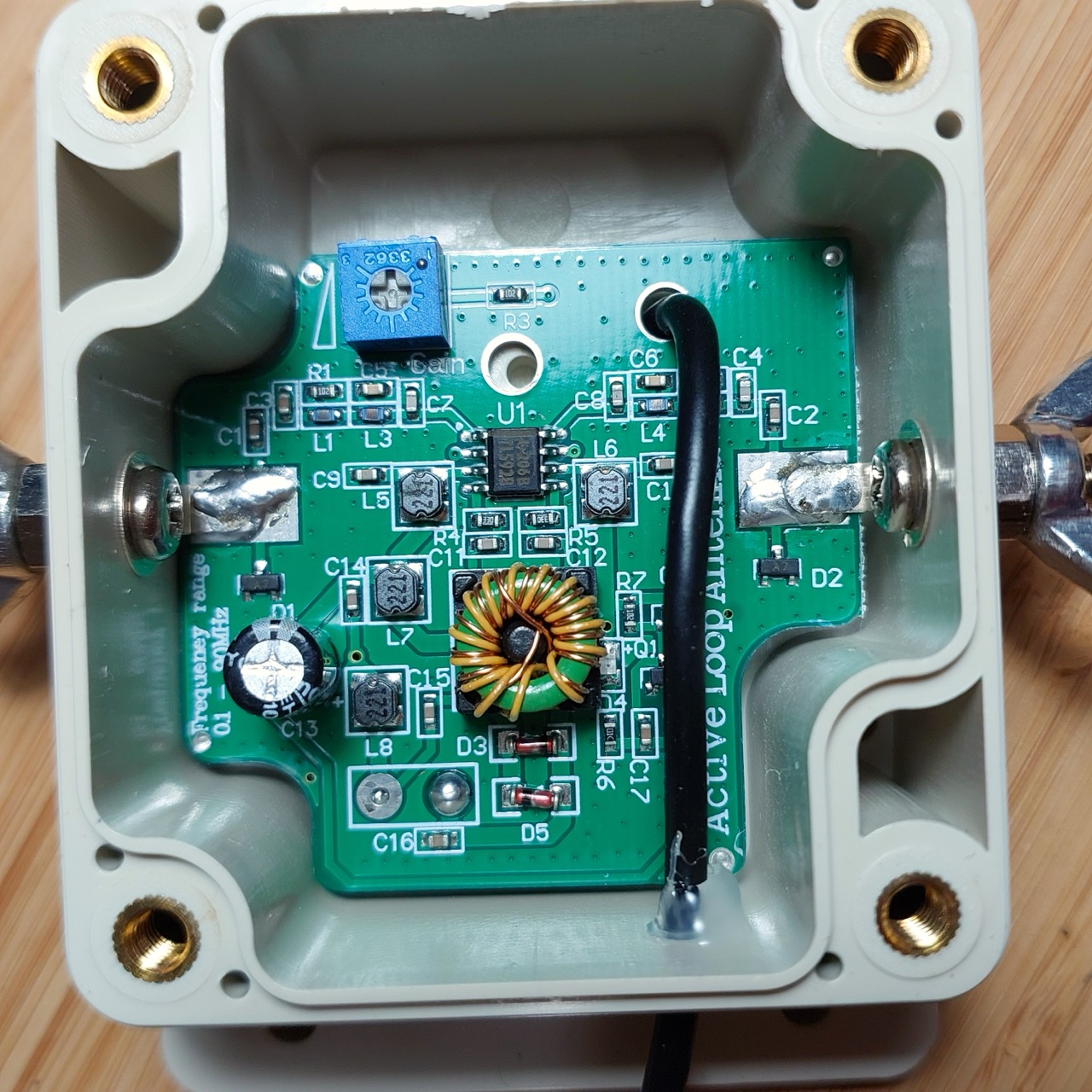

Inside the antenna box:

kit-internal1

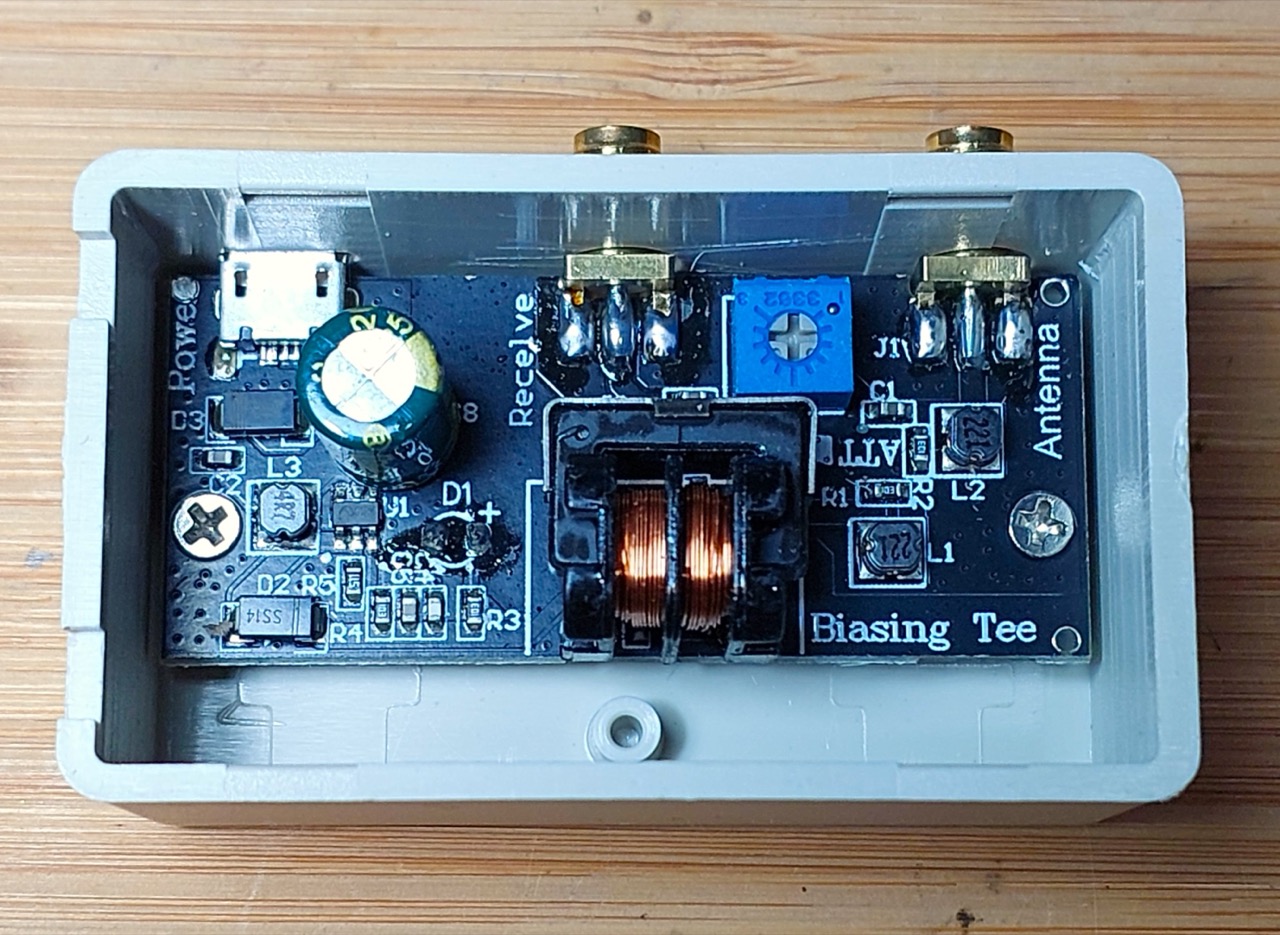

Inside the biasing tee:

kit-internal2

Mounting

The loop element of the antenna has a design diameter of 60cm and is connected to the active amplifier housing by two stainless steel wingnuts.

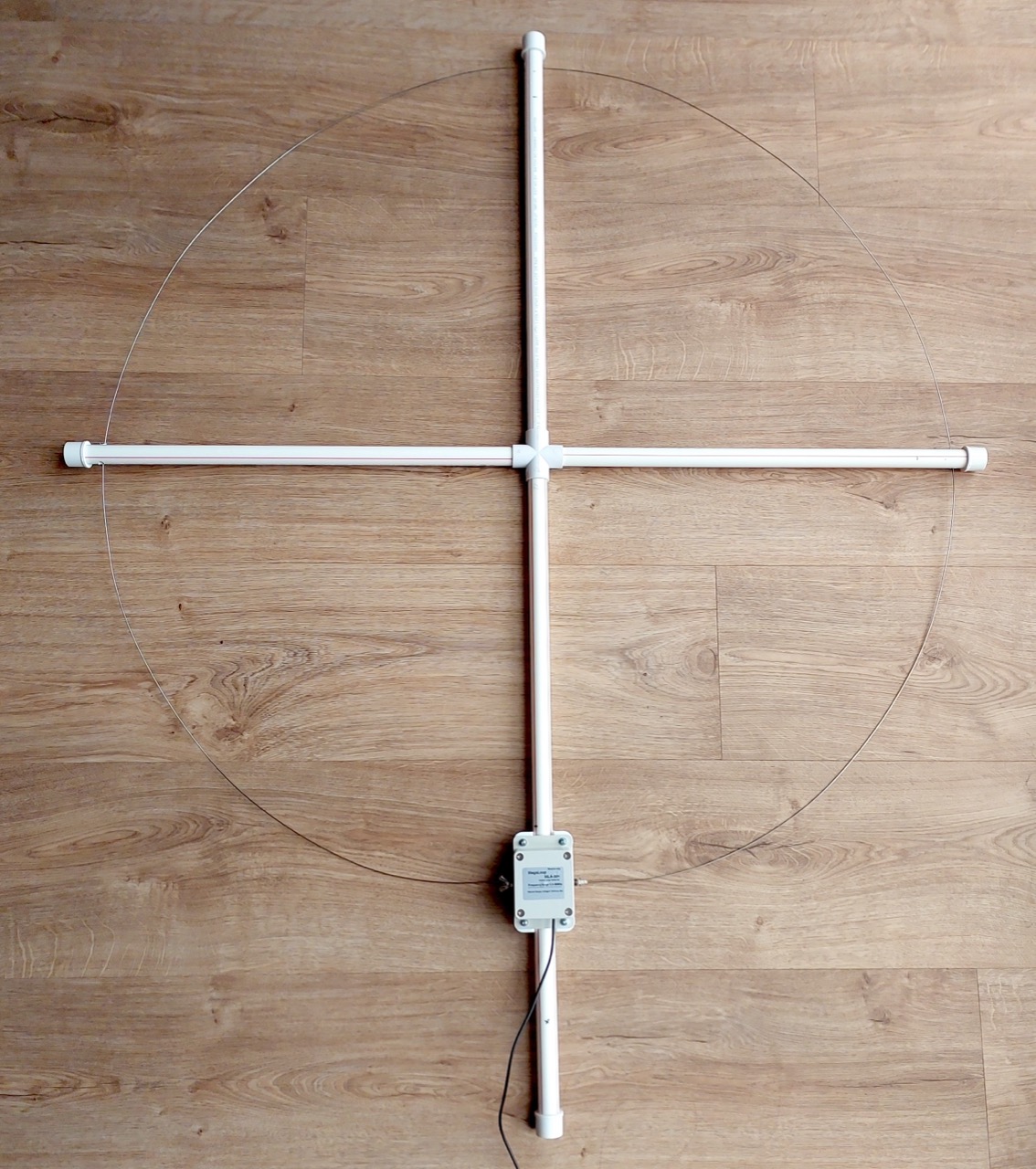

I used some 20mm PVC pip and fittings to mount the antenna.

Build

Installation

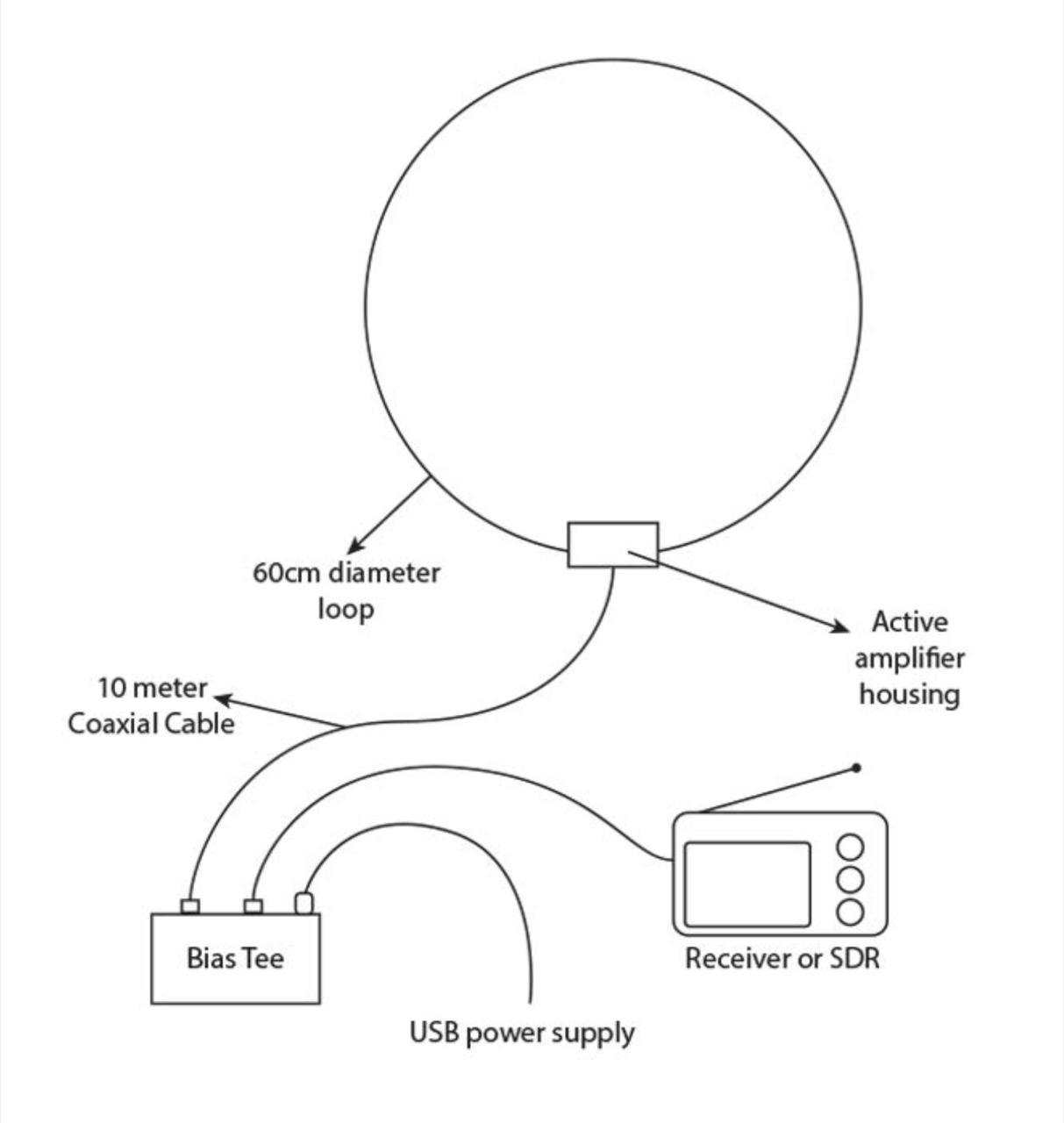

installation
