#002 Variable LED brightness with PWM

Using a variable resistor to control the brightness of an LED with PWM.

The Build

Notes

A simple demonstration of using pulse-width modulation to drive an LED to variable “apparent” brightness.

Construction

Designed with Fritzing: see VariableLED.fzz.

The Breadboard

The Schematic

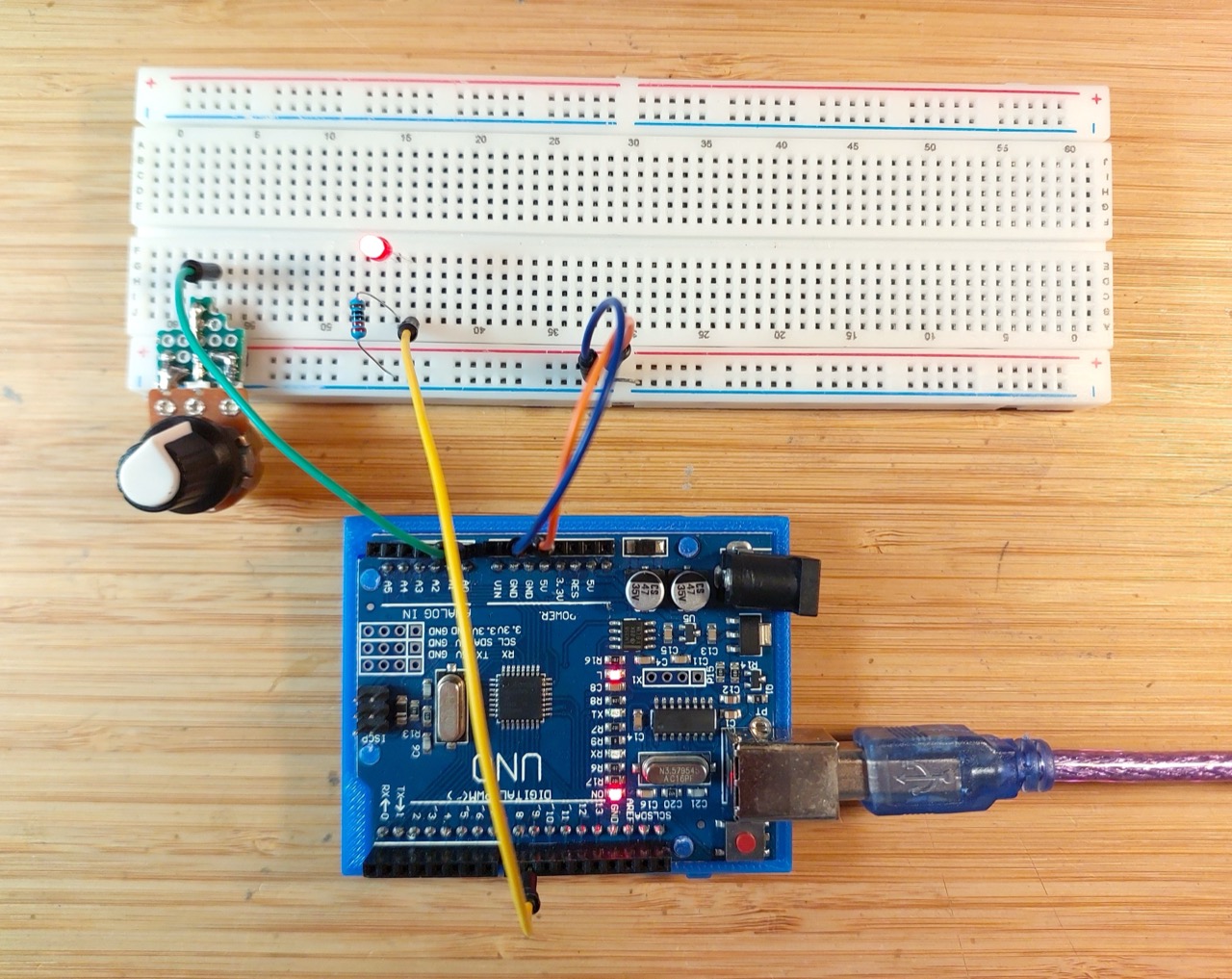

Wired up on a breadboard:

Breadboard Build

The Sketch

See VariableLED.ino.

Test Results

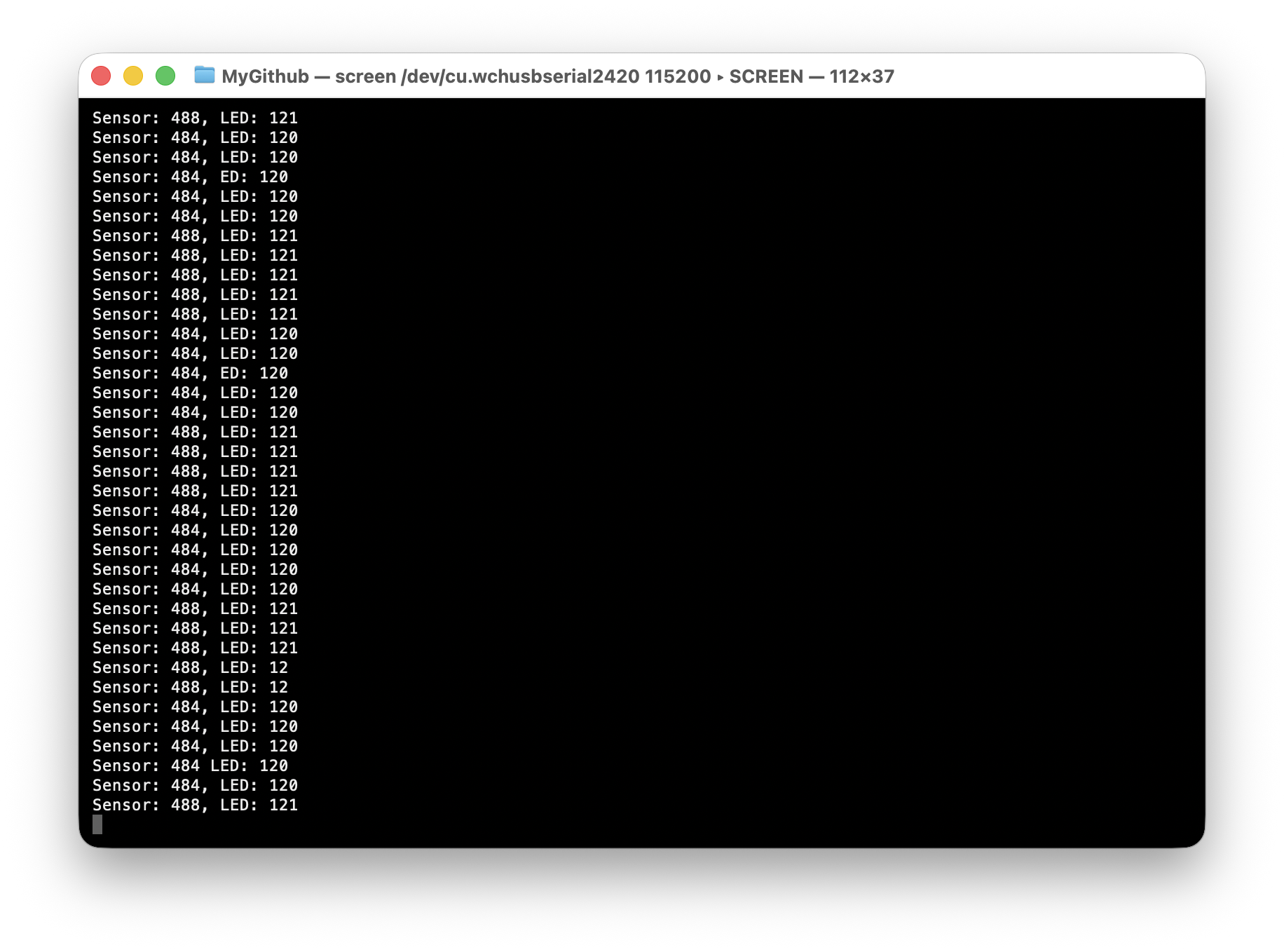

Connecting to the serial console using screen (e.g. screen /dev/cu.wchusbserial2420 115200) I can following the readings:

console

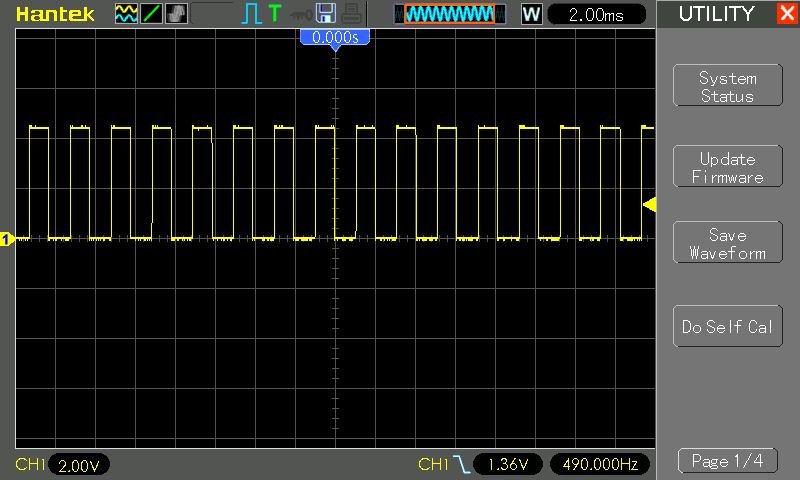

Attaching an oscilloscope illustrates the PWM output wave, in this case with Sensor: 484, LED: 120:

scope

Credits and References

About LEAP#2
LEDArduino

This page is a web-friendly rendering of my project notes shared in the LEAP GitHub repository.

Project Source on GitHub Return to the LEAP Catalog
