#523 JP-QR701 Thermal Printer Basics

Learning how to use the JP-QR701 thermal printer module with an Arduino, including QR codes generated with Python.

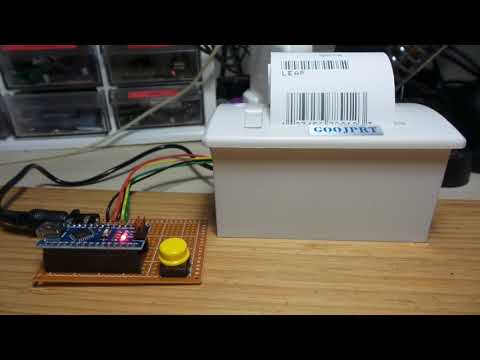

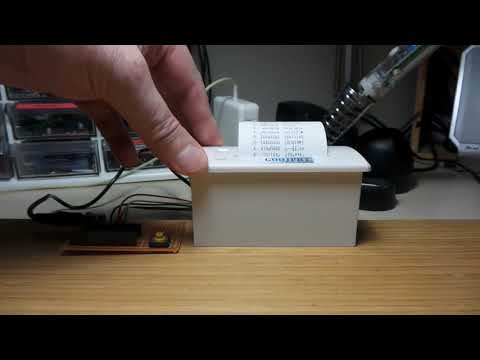

Here’s a quick demo..



I’ve wanted to play around with a thermal printer for a while, now I finally have the chance since I snagged a GOOJPRT QR701 Mini 58mm Embedded Receipt Thermal Printer on aliexpress.

After a bit of investigation, I discovered the OEM is 厦门精普电子科技有限公司 Xiamen Jingpu Electronic Technology Co Ltd, and they specialise in a wide range of thermal printing products. The JP-QR701 is a very similar (idential OEM?) to products available from AdaFruit, Sparkfun and other retailers.


JP-QR701 Specs

JP-QR701 58mm embedded miniature thermal printer

  • small size, light weight, fully functional
  • simple, easy connection
  • high-speed, high-quality, stylish
  • standard GB2312 large font
  • Printing method: Thermal dot line printing
  • RS232 / TTL interfaces, voltage 5-9V / 12V
Feature Sepcification
printing method Thermal line
Print width 48 mm
Dot density 384 points / line
printing speed 90 mm / s
Interface Type RS232 / TTL
Paper roll diameter ≦ 40mm
Paper thickness 0.06-0.08mm
Paper roll Width: 57.5 ± 0.5 mm
Character size ANK character, Font A: 12 × 24 dots, Font B: 9 × 17 dots
Barcode Hard font GB2312 font
Barcode type UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
Input buffer 32k bytes
NV Flash 64k bytes
Printer input voltage DC 5V / 2A
Cash drawer control DC 5V / 1A
weight 0.183 kg
dimension 109 × 94 × 66mm (depth × width × height)
working environment Temperature: 0 ~ 45 °C, Humidity: 10 ~ 80%
Storage environment Temperature: -10 ~ 60 °C, humidity: 10 ~ 90%
Print head life 50 km



Hold down the button on the top of the printer (or on the control board) while plugging in the power. A diagnostic is printed. This worked for me without issue (using a 5V 2A power supply).



I have the TTL version of the JP-QR701, so driving it from an Arduino presents no problems.

I put together a simple protoboard test base for a Nano, power supply and printer connections:

  • barrel jack for 5V 2A power supply
  • mounted the leads for the printer connection
  • females headers for mounting an Arduino Nano
  • jumper selects whether to power the Nano from the same supply as the printer, with a couple of bulk caps for the Nano supply to smooth out any power fluctuations caused by the printer.



Example Code

The QR701Basics.ino sketch is a simple test of the printer, based on an example from the Adafruit Arduino Library for Small Thermal Printers.

I’ve customised it a bit:

  • prints the test page on a button press (instead of at startup)
  • add my own QR code

The QR code data in qrcode.h was generated with a python script from here. I think I need to fiddle with the ESC 7 Setting Control Parameter Command and/or DC2 # printing density settings, because so far while the printer generates a recognizable QR code, I can’t scan it with my phone without first colouring it in with a black pen!
