#624 IR Dumper

Reverse-engineering infrared protocols using the Arduino-IRremote library.

Build

Here’s a quick demo..

Notes

notes

IR Receiver

I’m using a CHO 1838 - compatible with the TSOP1838

pin	function
1	data out
2	GND
3	VCC (5V)

Construction

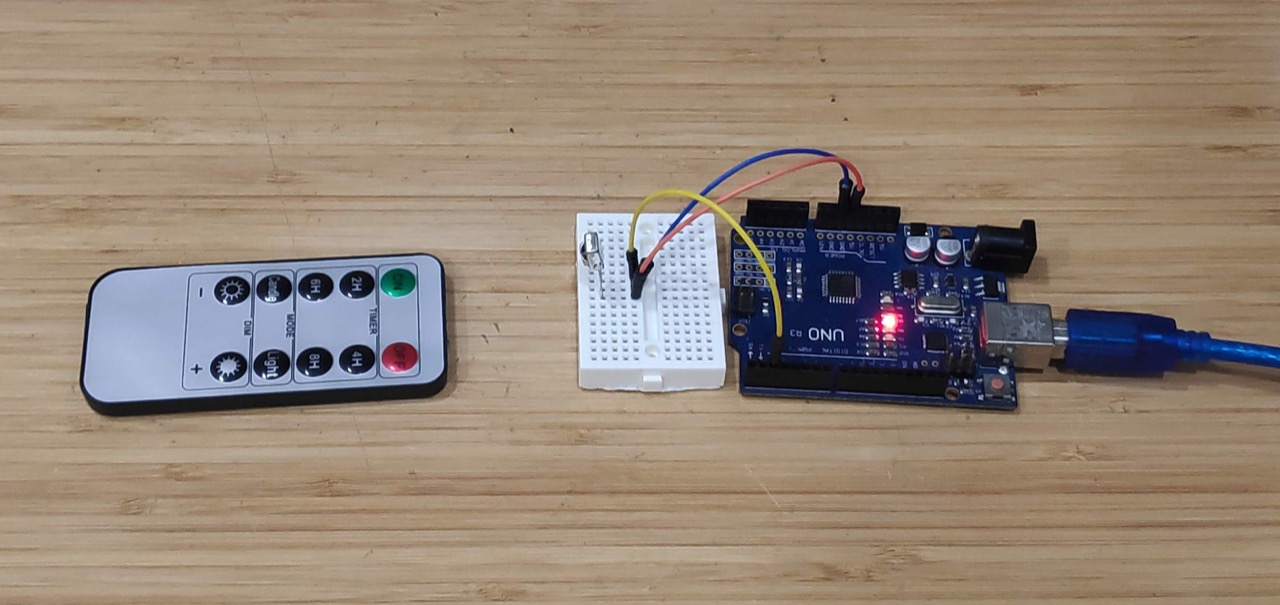

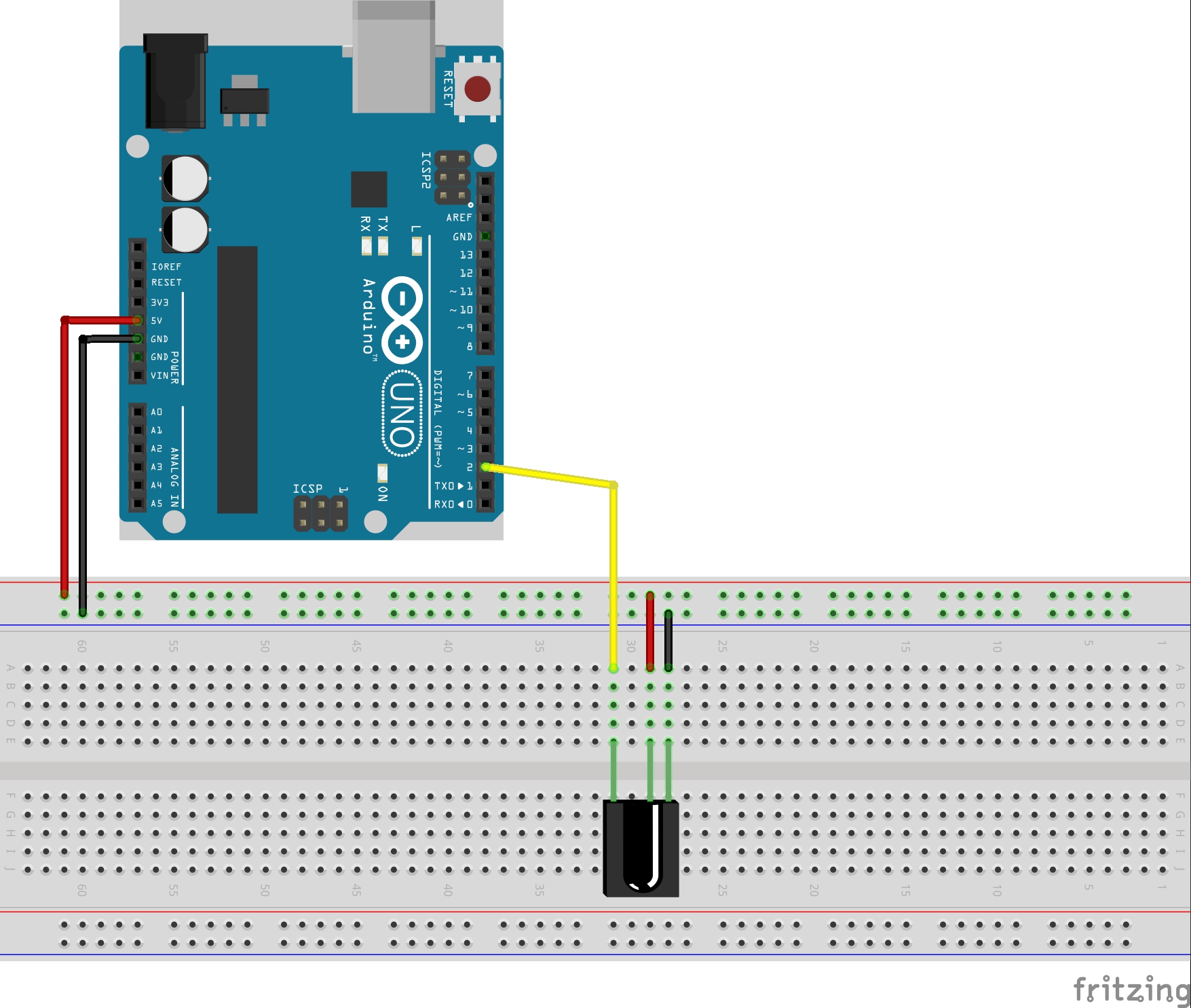

Just need the IR receiver connected to the Arduino Uno..

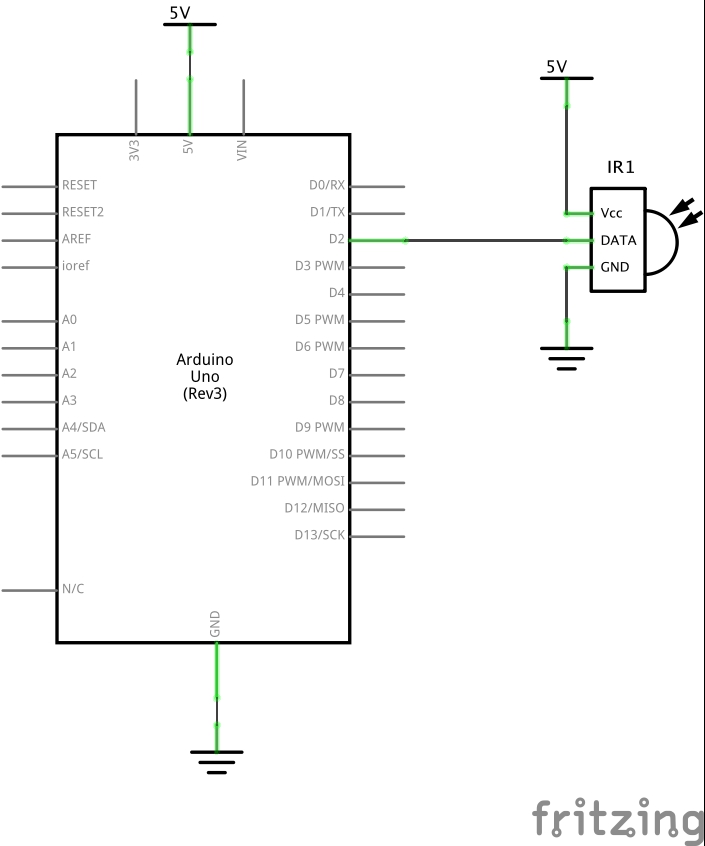

schematic

Code

The Dumper.ino sketch is based on the ReceiveDump.cpp demo from the Arduino-IRremote library.

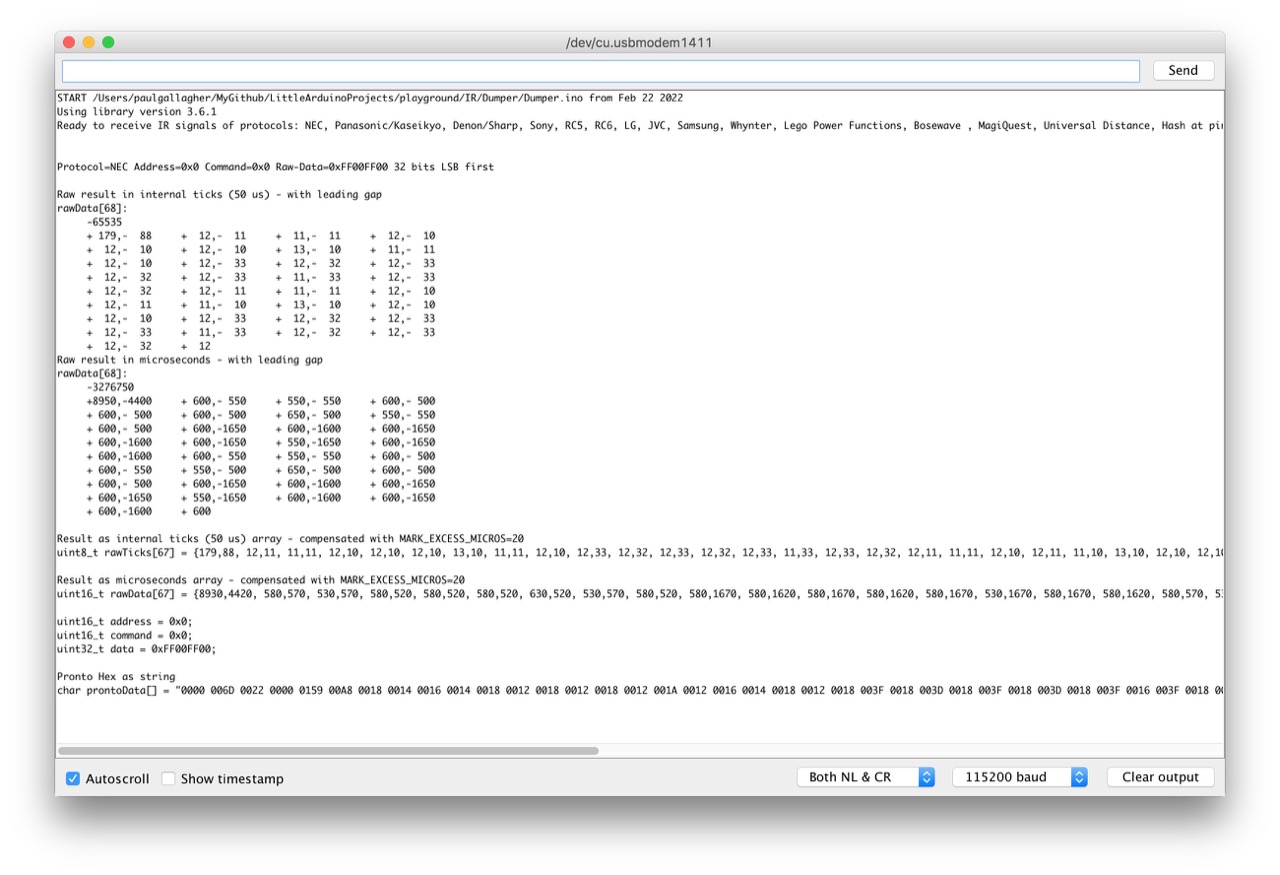

Point a remote control at the receiver and press a button. The full dump of the pack is echoed to the console:

console

Arduino-IRremote library supported protocols: Denon / Sharp, JVC, LG, NEC / Onkyo / Apple, Panasonic / Kaseikyo, RC5, RC6, Samsung, Sony, (Pronto), BoseWave, Lego, Whynter and optional MagiQuest.
