#006 Better with Bacon on an LCD

A simple “Hello World” test of a 16x2 LCD module.

The Build

Notes

Demonstrates the use a 16x2 LCD display. The LiquidCrystal library works with all LCD displays that are compatible with the Hitachi HD44780 driver. There are many of them out there, and you can usually tell them by the 16-pin interface.

A variable resistor is used to trim contrast, and the LCD backlight is powered from the 5V rail.

Construction

Designed with Fritzing: see BetterWithBacon.fzz.

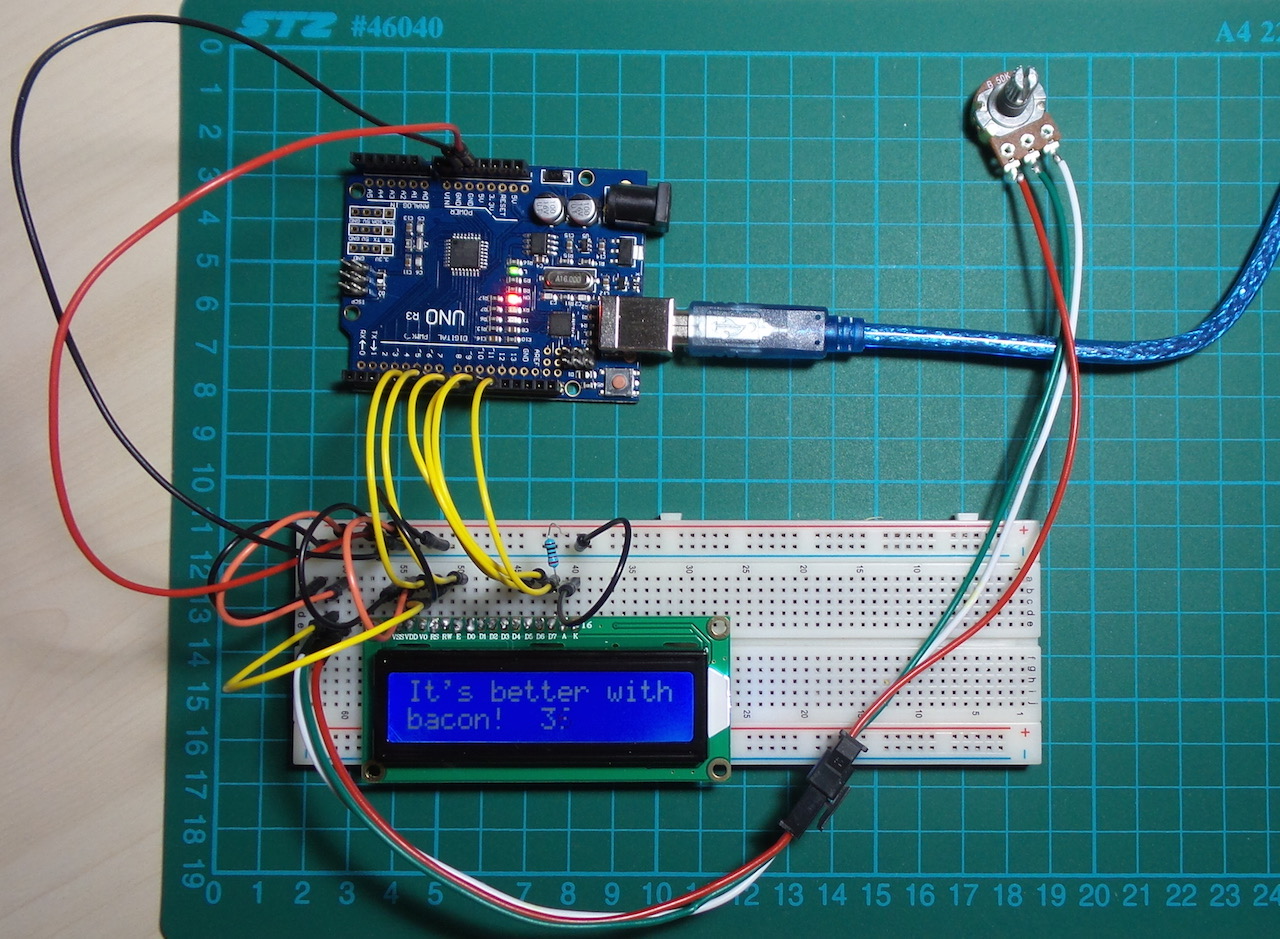

The Breadboard

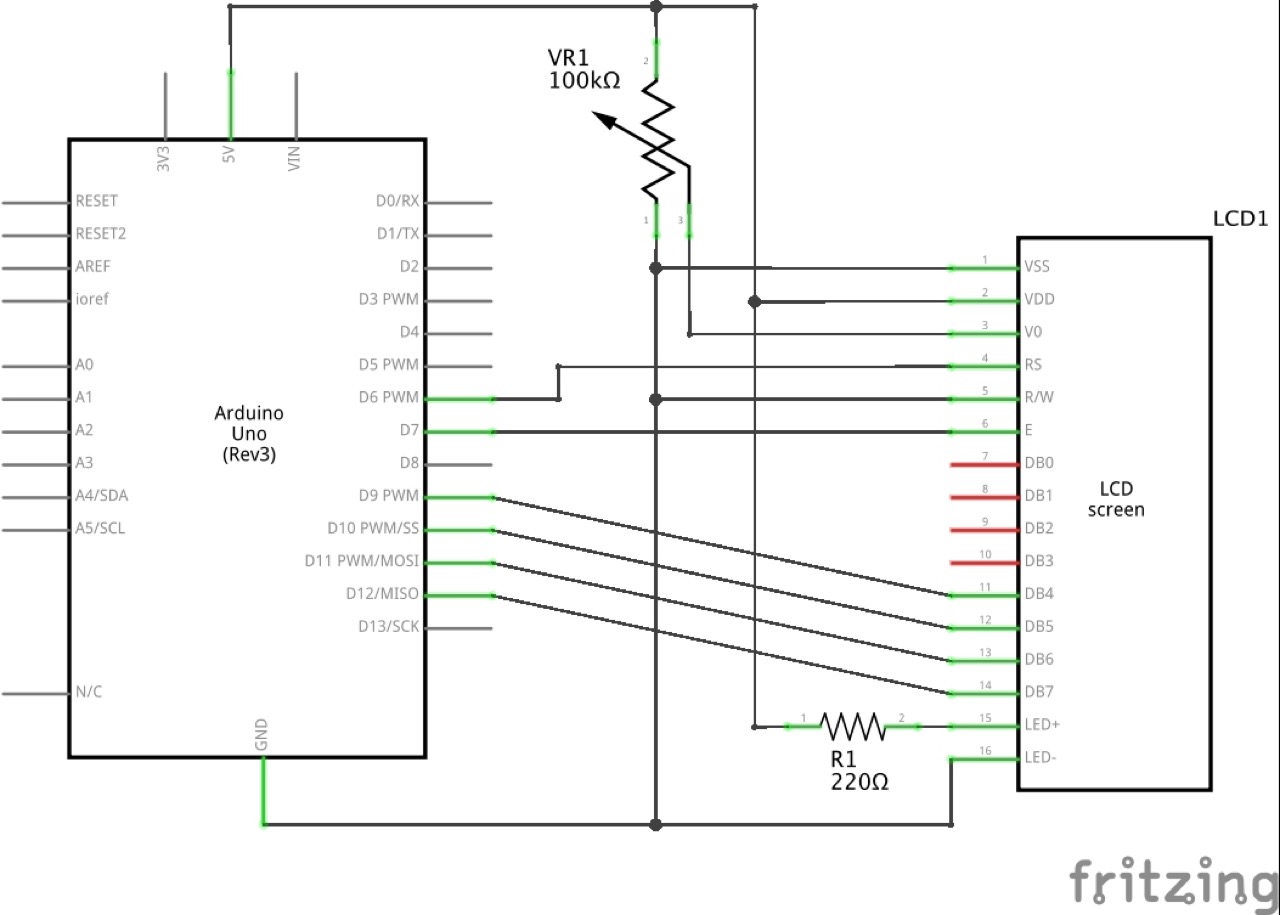

The Schematic

The Build

The Sketch

See BetterWithBacon.ino.

Credits and References

About LEAP#6
LCDArduinoHD44780

This page is a web-friendly rendering of my project notes shared in the LEAP GitHub repository.
