#483 WyLed!

.. when you allow an exploration of a chip (TM1638) to get a little out of hand! The WyLed free-form sculpture reacts to sound and blinks a 4-digit LED display. An ATTiny85 provides a little brain, and the TM1638 handles all input and output.

Build

Here’s a quick demo..

clip

Notes

I checked out the basic operation of the TM1638 in LEAP#481. This project tries to do something a little more interesting with the chip.

One thing led to another … and I ended up with a freeform sculpture that got a little out of hand!

Sound Detector

Sound input is detected with a circuit borrowed from LEAP#482 Electret Sound-level Trigger.

It provides a binary signal based on a preset threshold (adjustable with a pot). This is presented to the TM1638 as a “key” input via a 2N7000 mosfet.

LED Display

A 4-digit LED 7-segment display is used as a pair of “eyes”. For the display unit I have, the pin connections are as follows:

LED Module pin Function TM1638 pin
1 E SEG5/9
2 D SEG4/8
3 dp SEG8/12
4 C SEG3/7
5 G SEG7/11
6 D4 GRID1/24
7 B SEG2/6
8 D3 GRID2/23
9 D2 GRID3/22
10 F SEG6/10
11 A SEG1/5
12 D1 GRID4/21

Note: numbering the digits is pretty arbitrary - just need to follow a convention. In my case:

  • pins on the LED module are labelled D1-D4 from left to right
  • I have mapped these so that GRID1-GRID4 operate from right to left

Programming the ATtiny85

The WyLed.ino has some supporting classes TM1638.h and KeyController.h for interfacing with the TM1638, but does not require any additional libraries.

I used an ATtiny85 for the final build, and programmed it using the Arduino ISP.

See my notes on LEAP#070 for how this is done.

Construction

Breadboard

Schematic

Breadboard Build

Especially for moderately complex freeform builds, validation of a breadboard is a smart first step! Note that I switched the SPI pin connections for the final ATtiny build (more convenient for construction).

WyLed_bb_build

Freeform Build

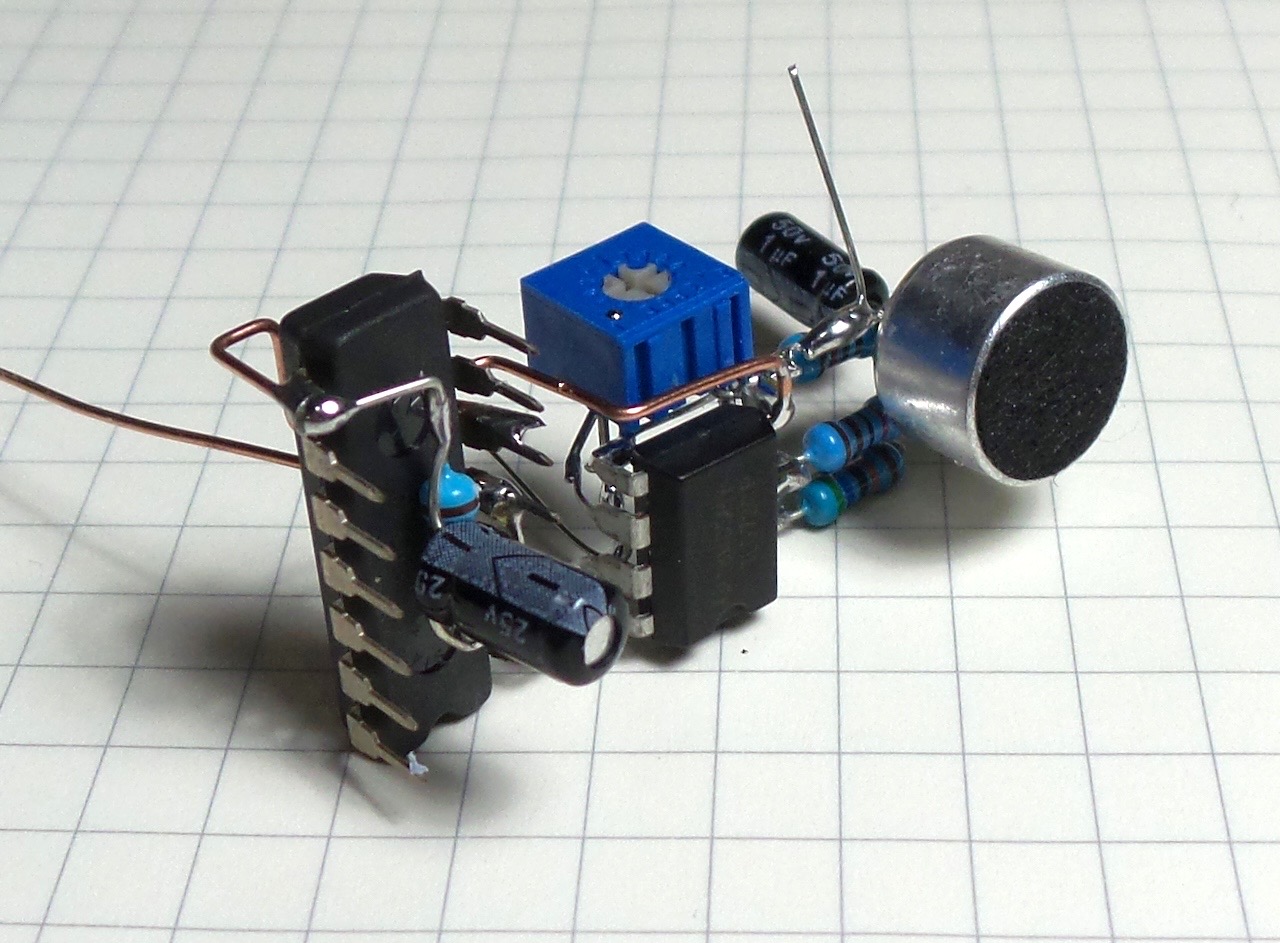

Came together in separately tested modules. First the electret input..

build01_electrect_module

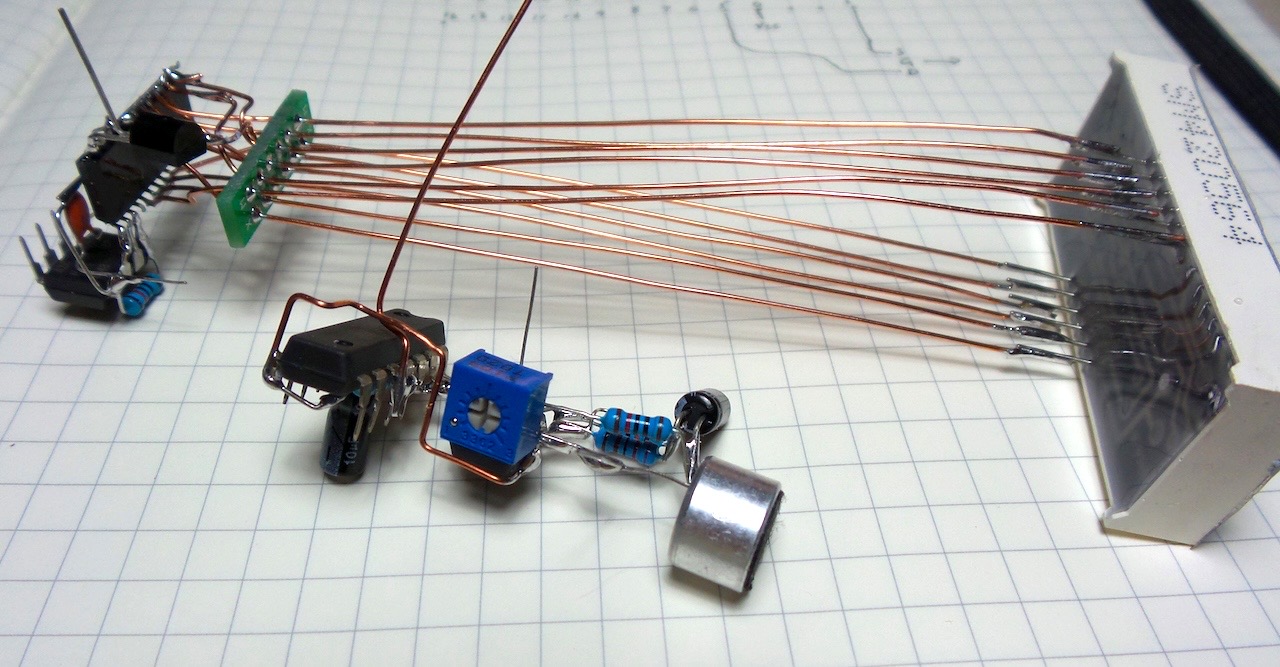

I’ve got some SMD TM1638 so I used a bit of perfboard to make wiring them up a little easier..

build02_electrect_and_TM1638_modules

Bending the display module to shape..

build03_display_module

Rabbit Ears? Why … beacause!

build04_rabbit_ears

Adding a little more bling to the base..

build05_rabbit_ears_lit

Final build…

Build

Credits and References

  • Titam TM1638 - info from the original manufacturer, Shenzhen Titan Micro Electronics Co., Ltd. (深圳市天微电子股份有限公司)
