#441 Pollen8

Pollen8 is a freeform wire sculpture with LEDs driven by a light-sensitive 555/4017 counter circuit.

Build

Here’s a quick demo..

clip

Notes

“Pollen8” is an exploration of contrasts and patterns in a freeform wire circuit.

I was interest in playing with a design that avoided the harsh angularity of most electronic circuits, instead using graceful lines that attempt to mimic a more organic structure.

The second goal was to achieve a chameleon-like LED display, where the visual effect depends on the perspective of the viewer: random from some angles, but clearly sequenced from others.

I created this for the Hackaday Circuit Sculpture Contest.

The Main Frame

The skeleton is made with 0.9mm and 0.55mm copper wire. The idea started as a very rough sketch in a notebook, and improvised in 3D by eye.

build_bare_structure

The Beating Heart

At first I was thinking of embedding a microprocessor in the project, but eventually decided to keep it old school with a classic 555 timer and CD4017 decade counter combo.

I was thinking along the lines of crafting and electronic “stamen” for the plant. Building this itself became a pleasurable little side-project.

build_timer_unit

build_counter_unit

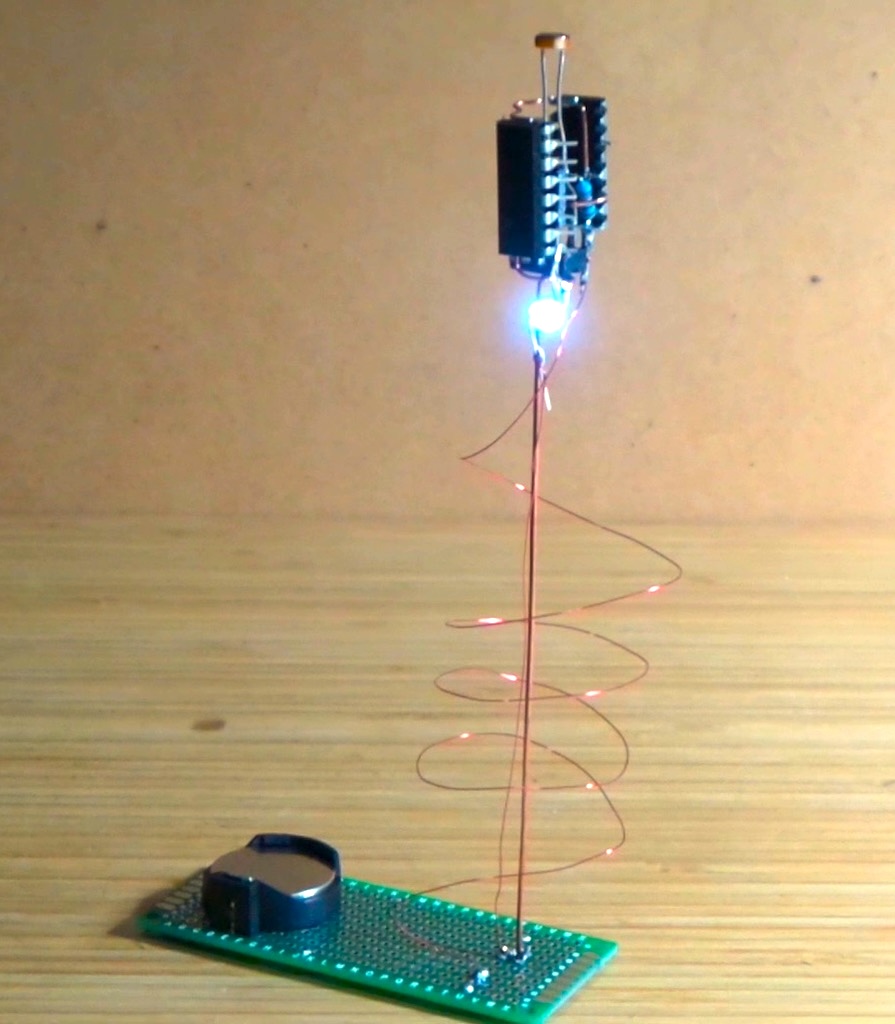

I liked the look of the “counter unit” so much, I went off on a little tangent for testing purposes. You can probably tell I was thinking it looked like some kind of sci-fi planetary sensing outpost..

counter_tower_tengent

Base

The base is made from some copper PCB stock and 3 cork coasters. It includes a CR2032 coin cell holder, switch and some external power connector pins.

build_base_1

Middle cork coaster has a cut-out for the wiring:

build_base_2

build_base_3

The finished base:

build_base_4

Circuit Construction

A very simple variation of the classic CD4017 counter with a 555 astable clock source. A light-dependent resistor provides some frequency variation depending on available light. The LDR ranges from around 1kΩ when in light to 10kΩ when in darkness, corresponding to a clock frequency range of perhaps 6.5Hz to 34Hz.

The two CD4017 counters are wired in parallel - mainly for symmetry in the final design. Up to 5 LEDs are chained from each counter output (not all pins are actually used in my final build).

Breadboard

Schematic

Pollen8_bb_build

Parts

The main electronic components:

Item Description
U1 555 Timer
U2,3 CD4017 decade counter
C1 10µF electolytic capacitor
R1 2.2kΩ
R2 10kΩ LDR
  ~ 25 yellow 0805 LEDs
  ~ 35 red 0805 LEDs
  lots of 0805 220Ω resistors - one for each LED

Wire stock:

  • 0.9mm copper wire - main structural elements
  • 0.55mm copper wire - secondary structural elements
  • 0.2mm magnet wire - LED and power connections

Putting it all Together

The final step in construction was to assmble the individual LEDs with their current-limiting resistor. these are grounded on the wire frame and connected to the CD4017 outputs with magnet wire. This proved to be an extremely finnecky process to the point that I was cursing myself for deciding on such a construction. The main problem is that soldering one connection can easily de-solder another if you are not careful!

build_led_detail

I tried a range of processes and eventually settled on first soldering the LEDs to the resistors, then adding the magnet wire, and finally attaching to the frame.

build_led_1

Half the LEDs were attached prior to inserting the central timer/counter unit. The rest were attached afterwards.

build_led_2

A close-up of the final construction from the front:

build_front_close

And from the rear:

build_rear_close

Demonstration

The circuit works nicely on a 3.3V coin cell, but can also take power from the two pins at the rear. It’s quite efficient (seems to draw < 5mA at peak), but I’ve been conservative with the LED current-limiting resistors - they are not driven very hard.

When viewed directly from the front, a distinct “runway lights” pattern is apparent in the LEDs. This is produced with yellow LEDs that are angled forward.

demo_front

When viewed from other angles, the LED display is more chaotic. This is mainly produced by LEDs angled outwards.

demo_side
