Fritzing Part for the Boldport Cuttle

The Cuttle is perhaps the most beautiful ATmega328-based board around.

As an Arduino-compatible board, I thought it made sense there should be a Frtizing part for it! Since the design files are open source, it didn’t take much effort to get a decent looking part working. I used pcbmode to generate an initial SVG from the cuttle design files.

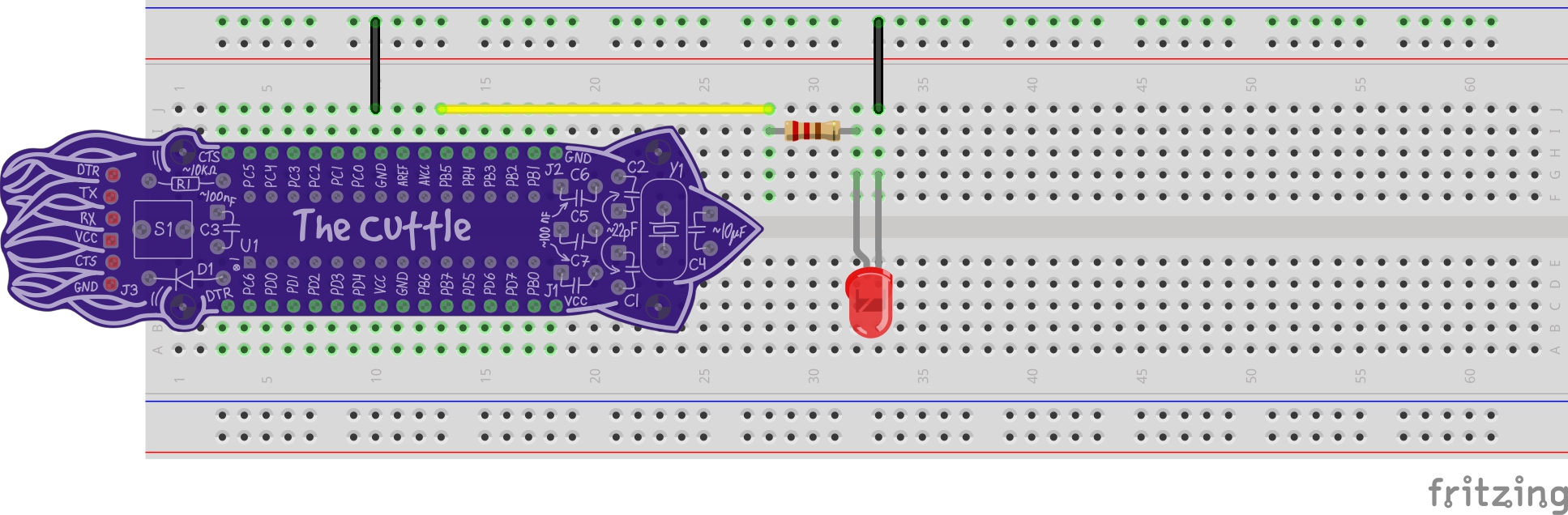

This is an example of what it looks like in a sketch:

cuttle_blinky_example_bb

Fritzing Sources

The part is packaged in TheCuttle.fzpz and the source SVG files are here if anyone would like to try and improve it.

Example

See cuttle_blinky_example for an example sketch - simple D13 blinky using the Cuttle
