#713 USB Multifunction Tester

Examining the KWS-MX17 inline USB multi-function tester

Build

Notes

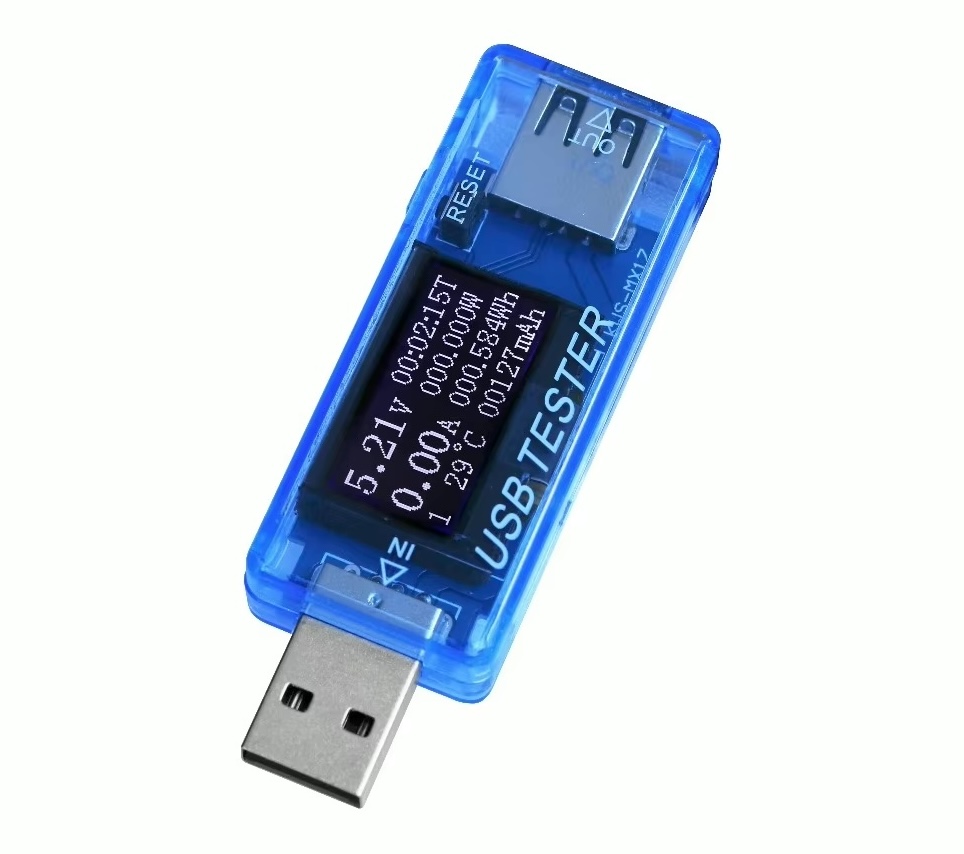

The KWS-MX17 device sites inline and monitors USB voltage, current, power, timing and temperature. It is very handy for keeping an eye on current drawn by an appliance for example.

It is widely available, for example from sellers on aliexpress, with listings such as: 8 in1 QC2.0 3.0 4-30v Electrical power USB capacity voltage tester current meter monitor voltmeter ammeter

Specifications

Model:KWS-MX17

  • Voltage: DC4-30V
  • Current: 0-5A
  • Time: 0-99hours
  • Power: 0-150W
  • Capacity: 0-99999mAh
  • Electrical energy: 0-999.999Wh

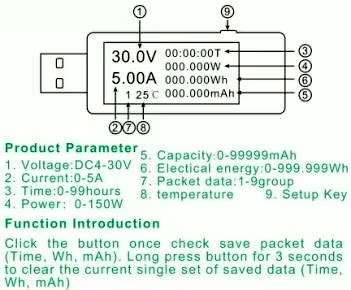

instructions1

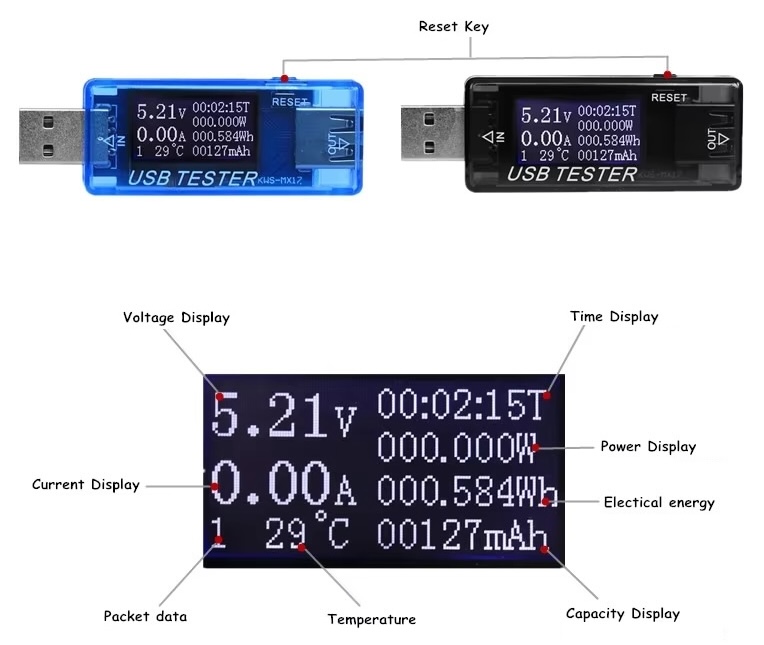

instructions2
