#163 VariableSawtoothGenerator

Test a variable-geometry, fixed-amplitude sawtooth wave generator circuit

Notes

This is an interesting sawtooth wave generator that’s described in an excellent w2aew tutorial.

It uses two independently-controlled BJT current sources to sequentially charge and discharge a capacitor - generating the rising and falling slopes of the wave.

A comparator with hysteresis is used to switch the current sources.

Components and Limitations

I’m using an LM324 op-amp for the comparator and buffer circuits. This is just borderline acceptable, since it is not rail-to-rail and so the resulting votage differential in the hysteresis cycle is only about 1V. It also seems to be contributing some degree of crossover distortion.

1N4148 diodes are recommended, but I did try replacing them all with standard 1N4007 rectifers. While the circuit still functioned, with 1N4007 diodes there was more distortion of the waveform - I think primarily because of the lower switching speed.

Results - LM324

The following trace is with a 5V supply. It’s a bit hard to read because I crammed 4 measurements in one. The inputs are all DC coupled with no offset to the centre 0V line. comparator output swings from ~0.7V to ~3.7V (showing how far from rail-rail the LM324 is!) *

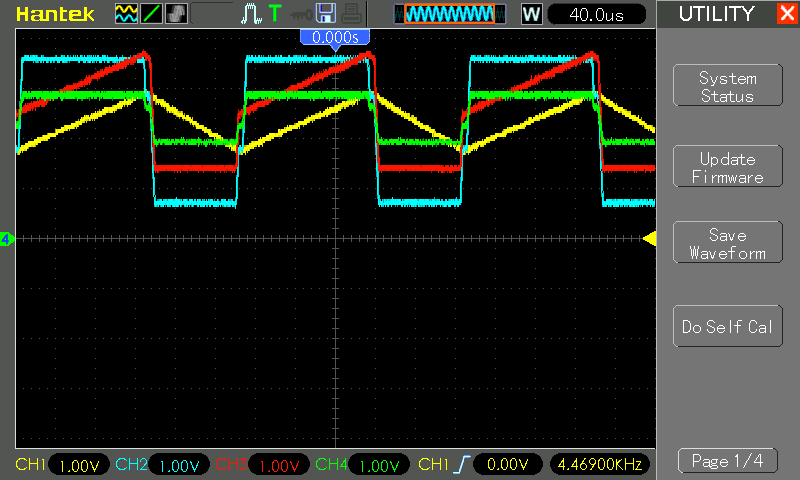

5v trace LM324

Channel Colour Probe Point Measurement
CH1 yellow SAWOUT saw output
CH2 blue SQUAREOUT comparator output / left of diode bridge, swinging from ~0.7V to ~3.7V
CH3 red P3 charging current source
CH4 green P4 comparator voltage threshold

LF347N

Replacing the LM324 with LF347N, circuit loses dynamic range but still produced a relatively undistorted wave.

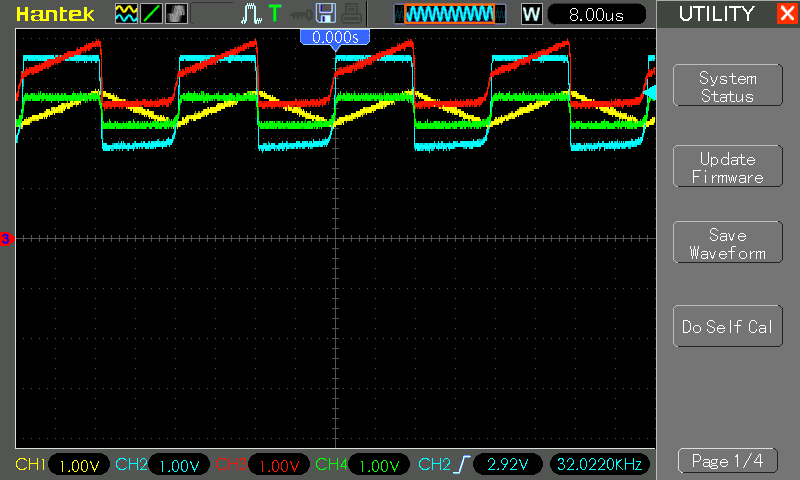

5v trace LF347N

TL074CN

Replacing the LM324 with TL074CN, circuit loses some dynamic range and has significant crossover distortion.

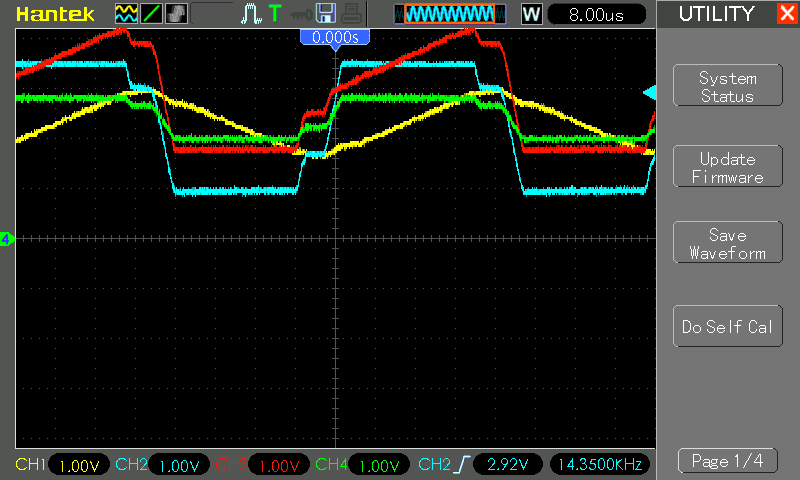

5v trace TL074CN

Construction

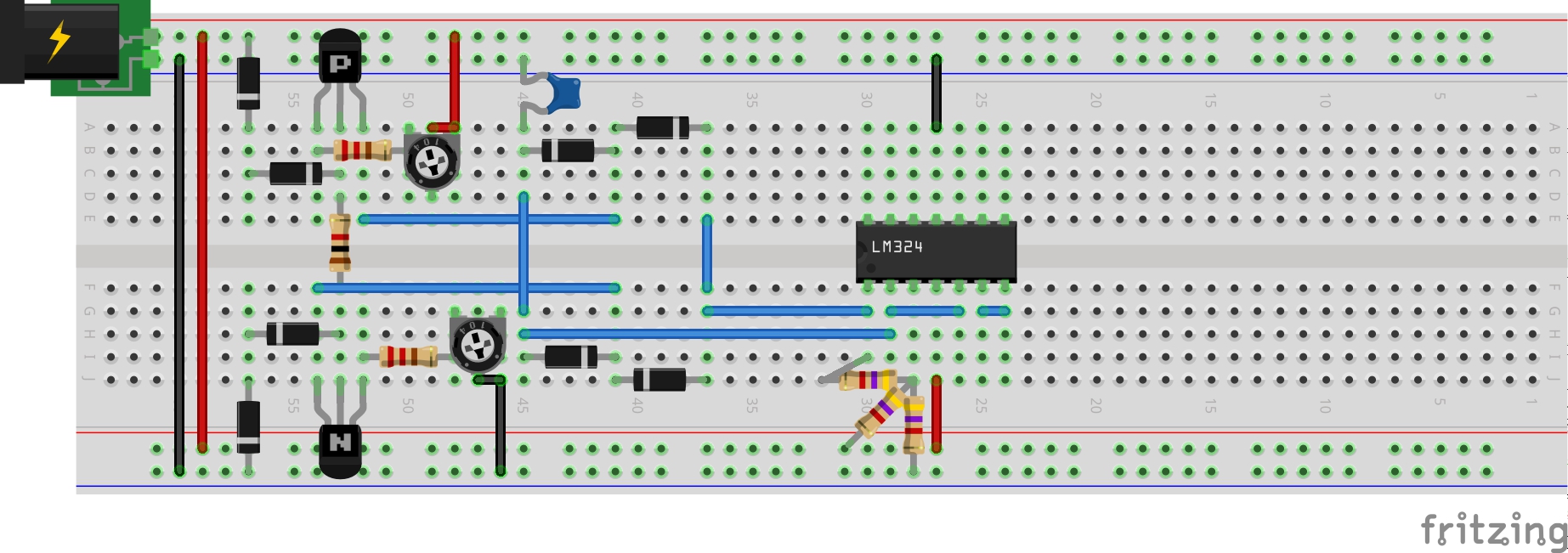

Breadboard

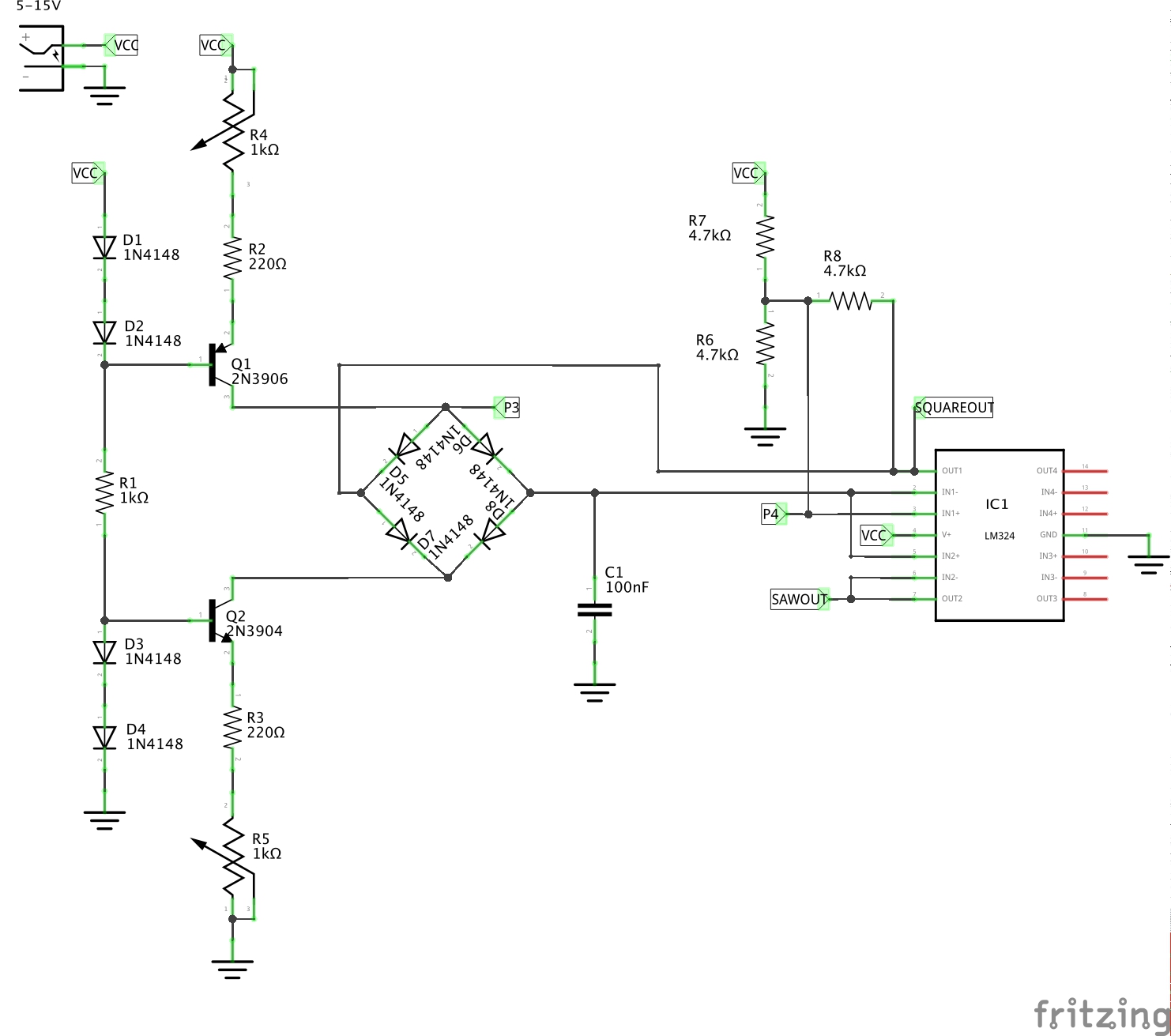

The Schematic

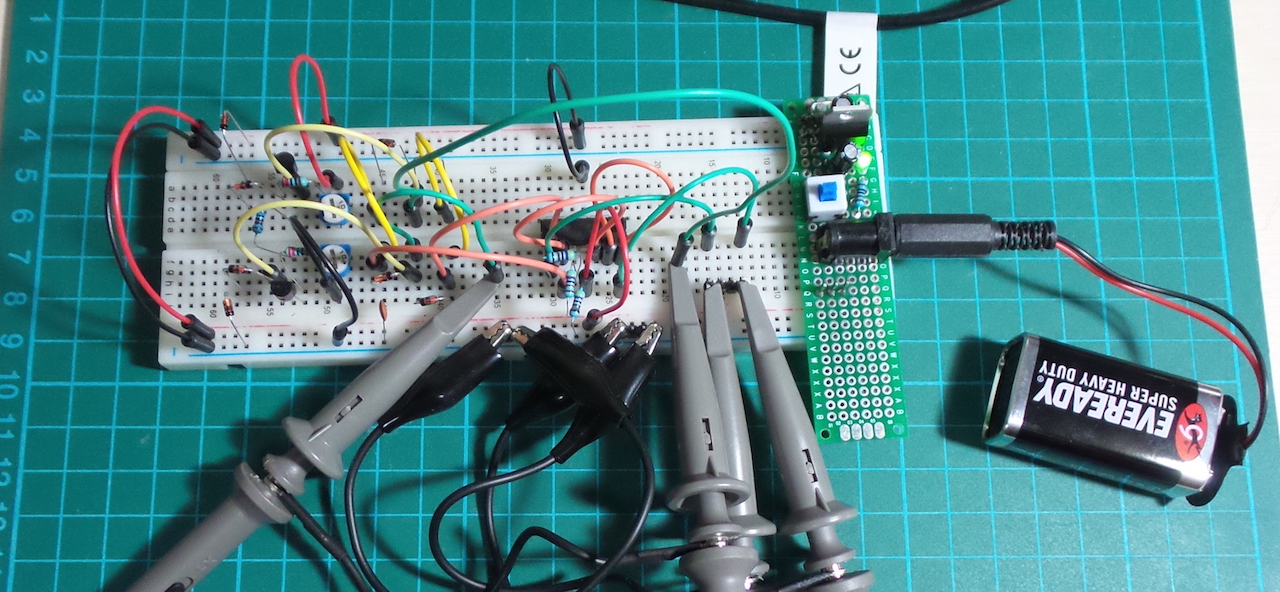

The Build

Credits and References
