#861 SX1308 Boost Converter Module
A small boost converter module based on the SX1308 IC, with output adjustable up to 28V from input 2V~24V DC.
Notes

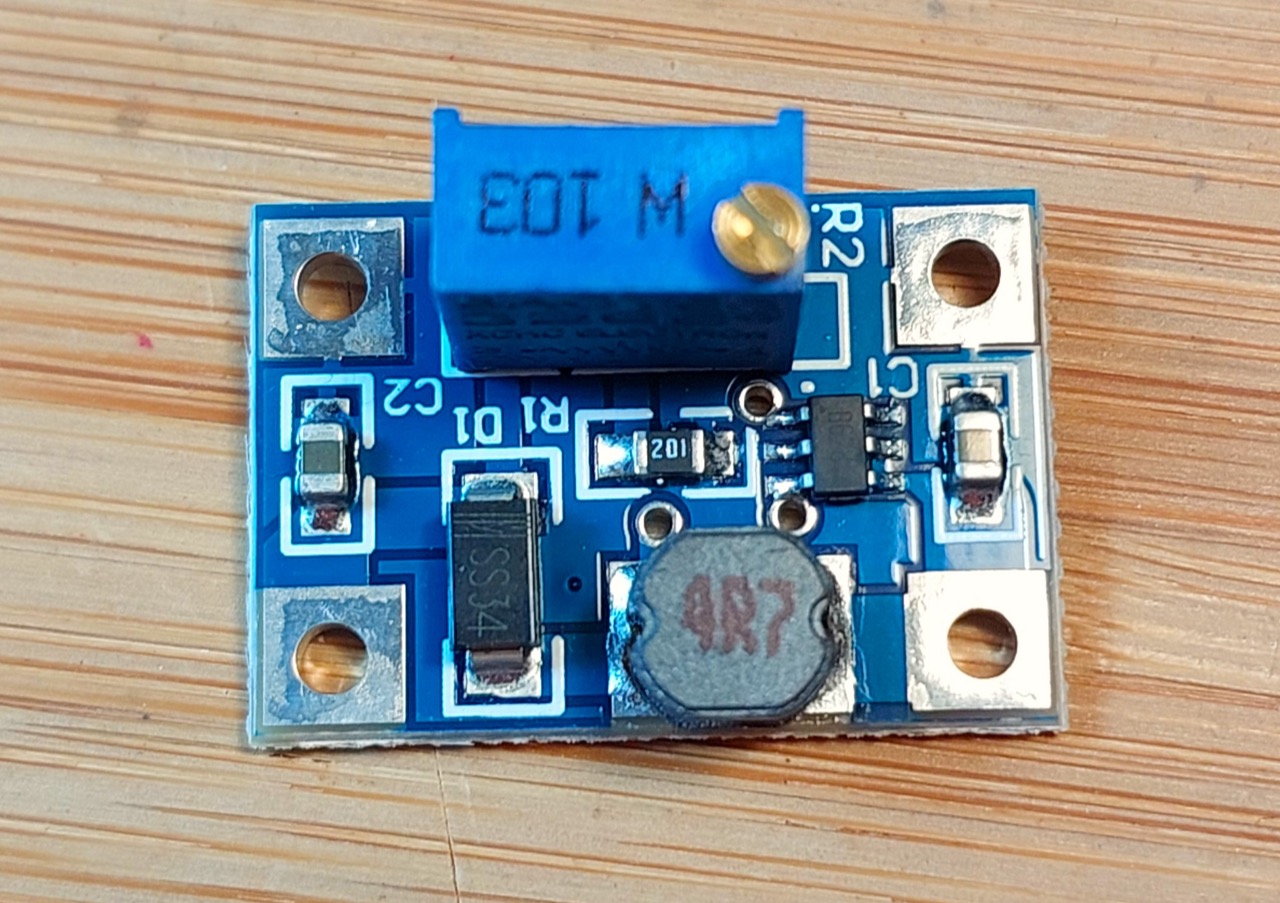

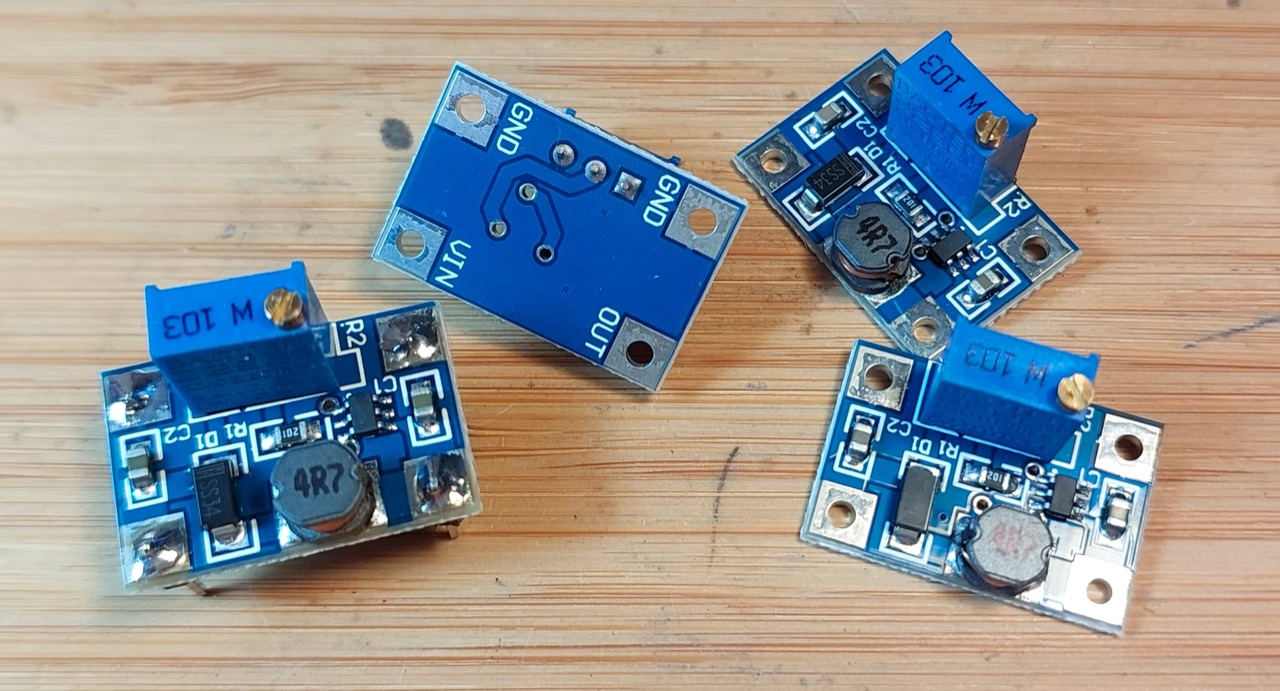

SX1308-based boost converter modules are available from many sources. The aliexpress seller I purchased from offers the module in a small form factor with no input or output connectors, suitable for wiring into any circuit.

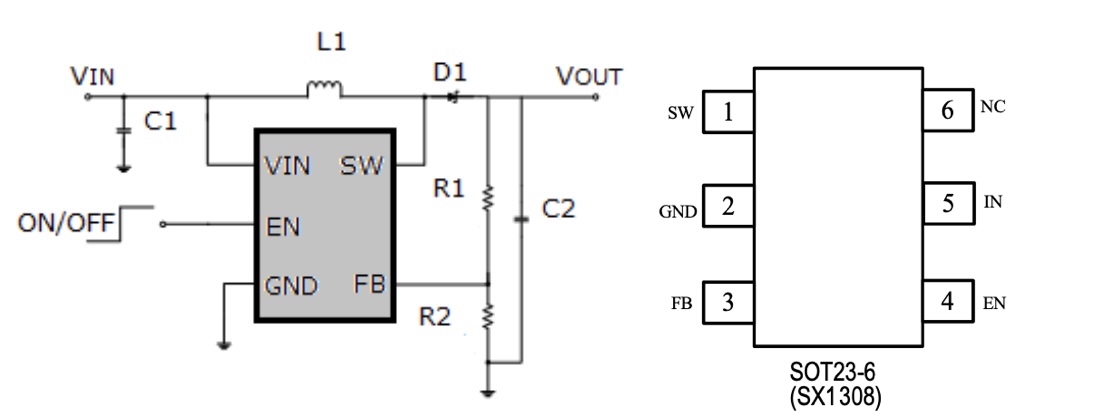

About the SX1308
The SX1308 Boost Converter is a tiny, high-efficiency DC-DC step-up adjustable power module that turns a lower voltage into a higher voltage
- Input Voltage: 2V to 24V DC
- Output Voltage: Adjustable up to 28V (or ~31V max depending on the specific breakout board)
- Maximum Output Current: Up to 2A (internal switch limit)
- Switching Frequency: Fixed 1.2 MHz
- Efficiency: Up to 95%–96%
Quick Test

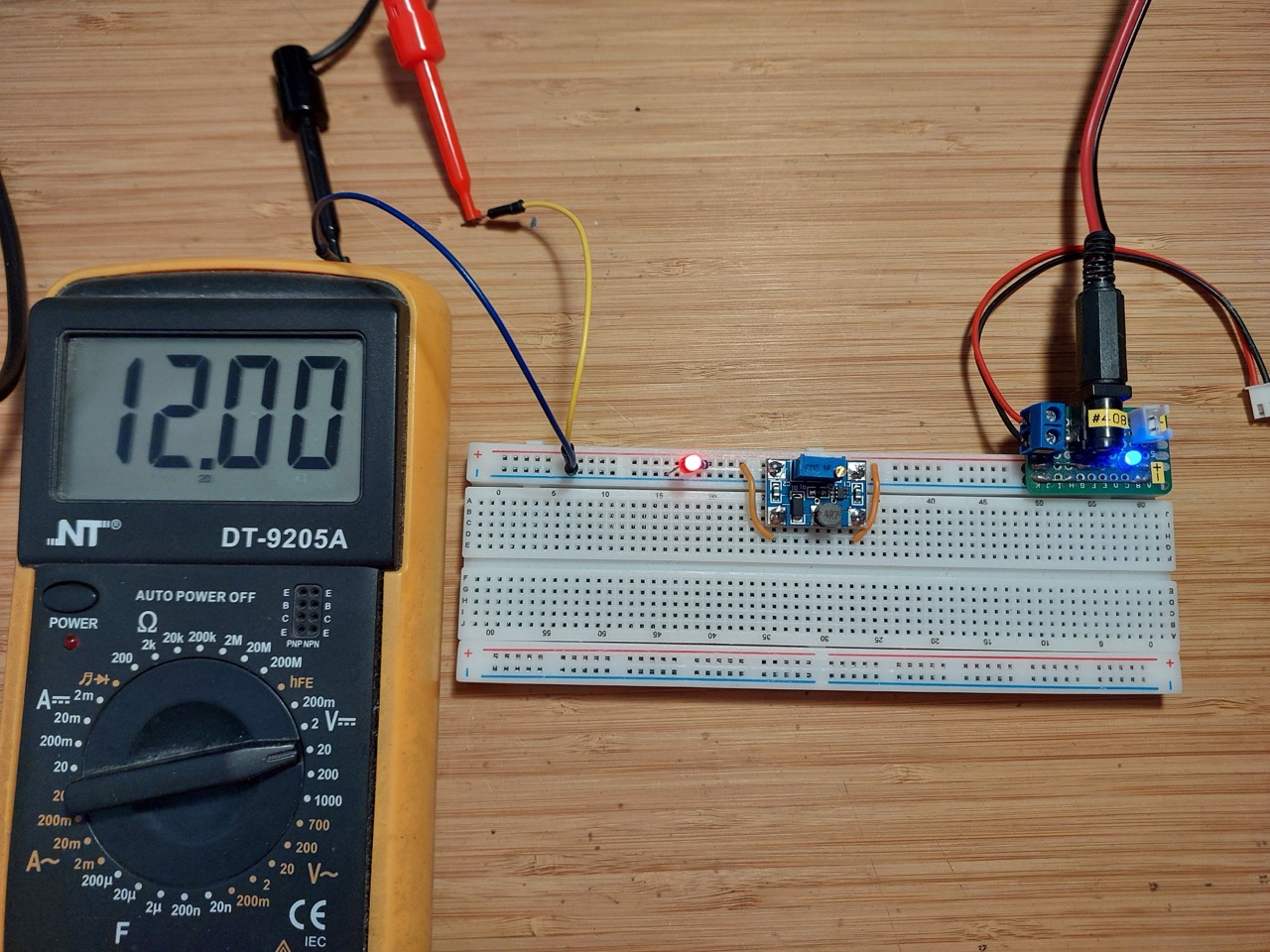

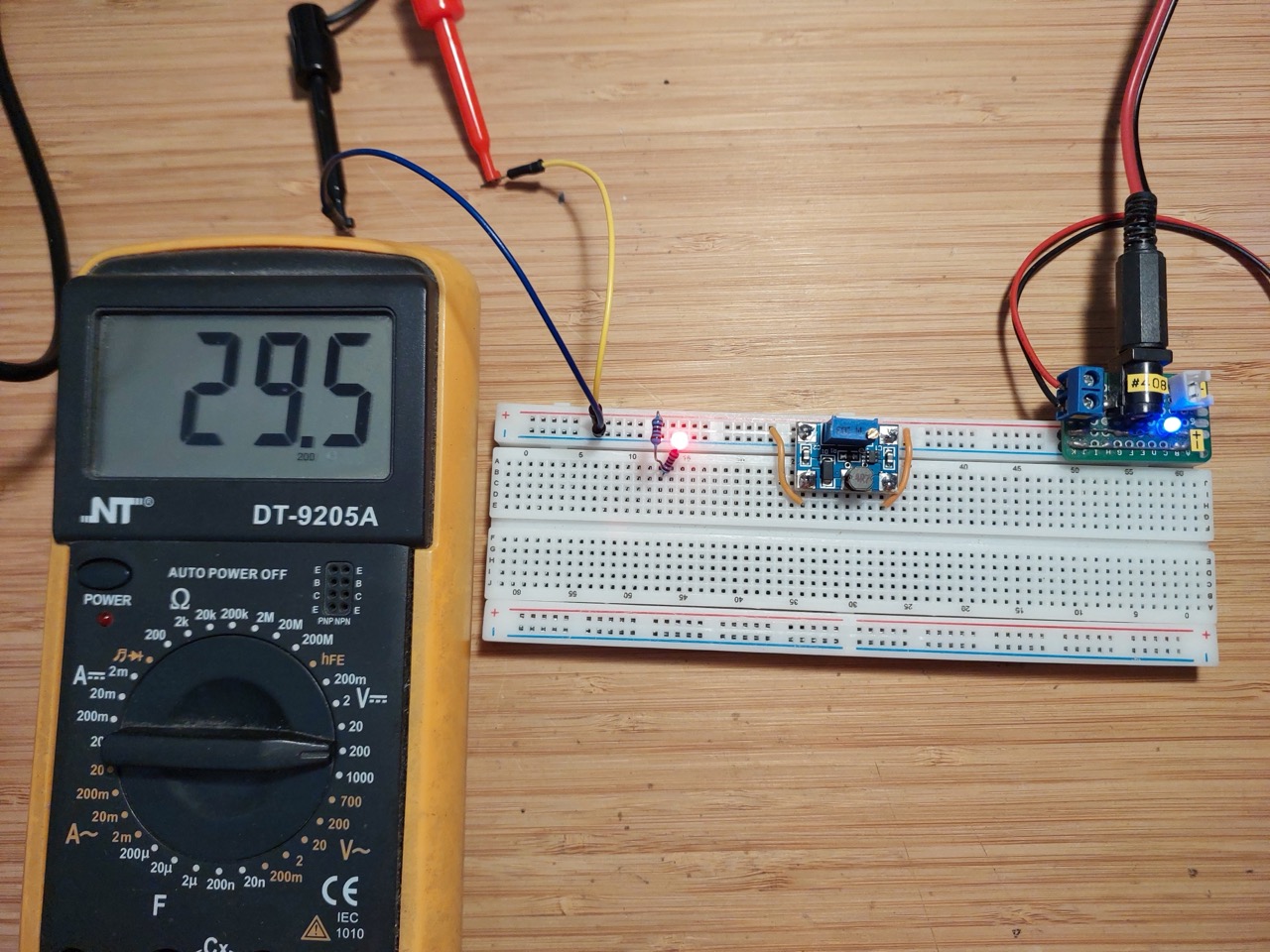

With 5V input, testing regulation at 12V and 30V output:
Credits and References
- “5PCS MT3608 DC-DC Step Up Converter Booster Power Supply Module Boost Step-up Board MAX output 28V 2A” (aliexpress seller listing)
- Purchased the SX1308 variant for SG$2.14 for 5 pieces (Jun-2023)
- SX1308 datasheet
