#864 Boost Converter Modules

Reviewing a range of low-cost boost converter modules that can generally supply up to 30V.

Build

Notes

There are many super-cheap boost converter modules available. I have collated the notes on many devices I’ve tried here. See the individual project pages for each device for full details.

Module 1 - ME2108 5V Boost Converter Module

See LEAP#863 ME2108 Boost Converter Module.

A micro boost converter module based on the ME2108 IC, with a fixed 5V output from operating input range of 0.9V~6.5V.

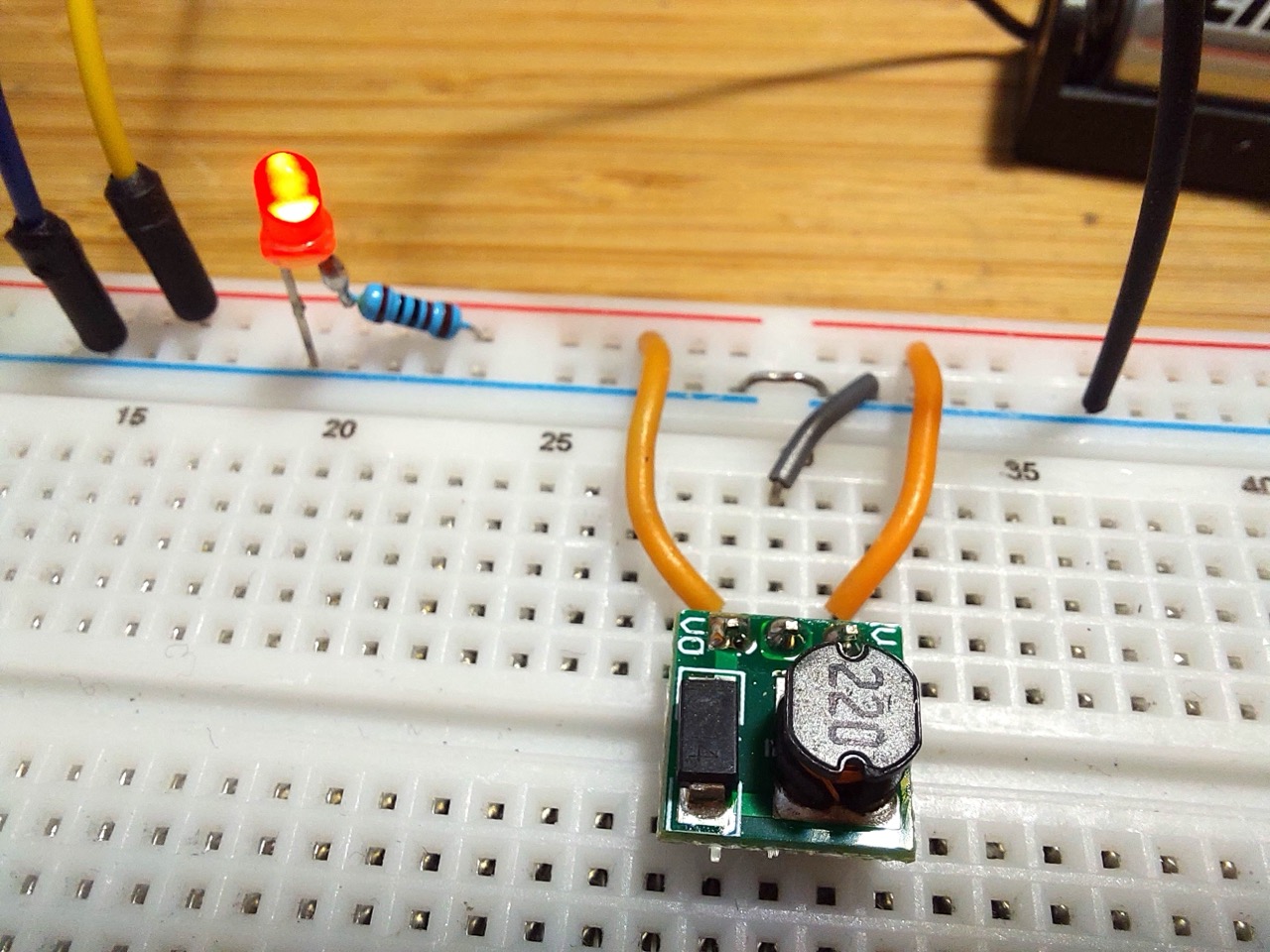

ME2108Module1_build

Module 2 - SX1308 Boost Converter Module

See LEAP#861 SX1308 Boost Converter Module.

A small boost converter module based on the SX1308 IC, with output adjustable up to 28V from input 2V~24V DC.

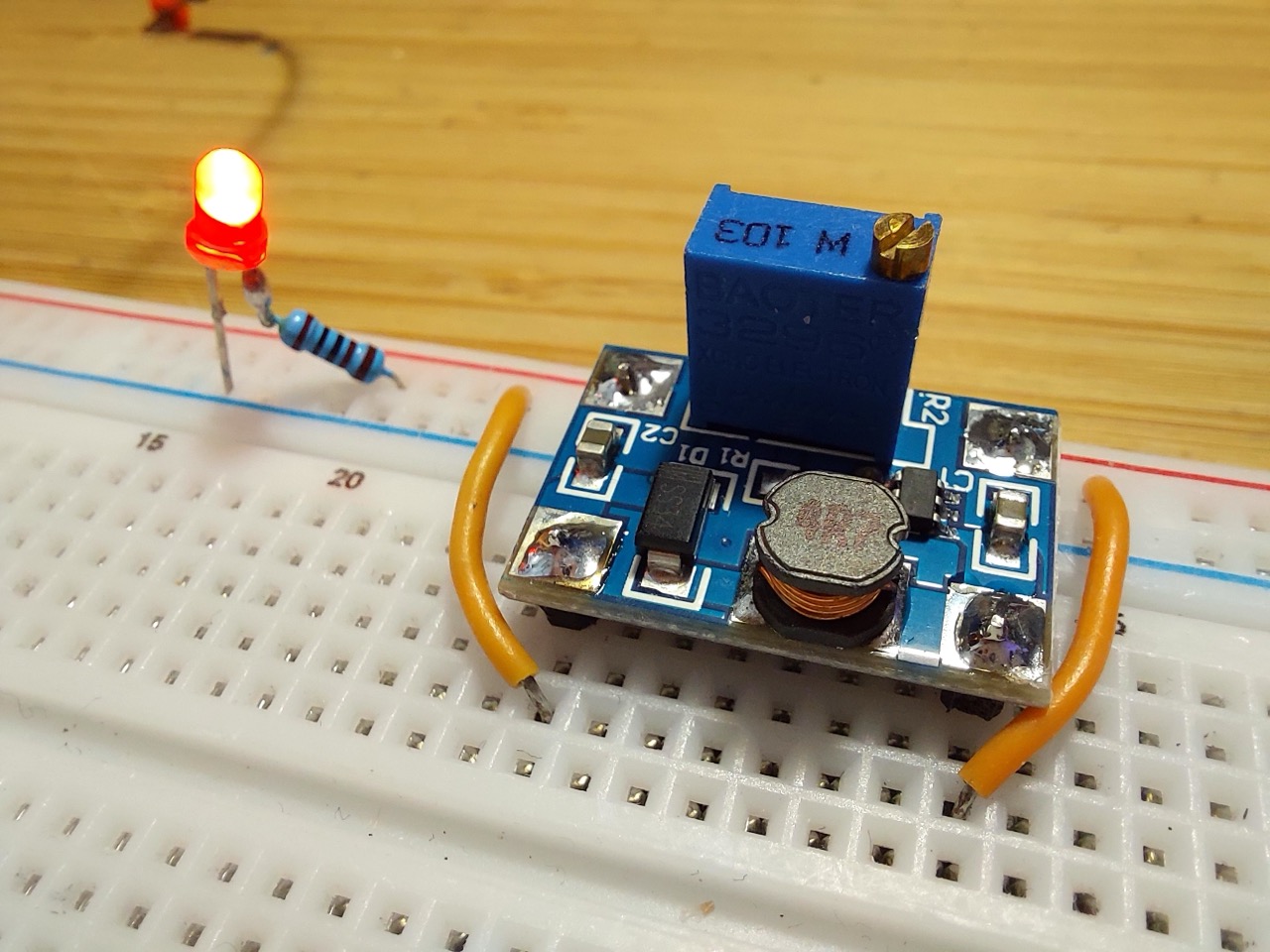

SX1308Module1_build

Module 3 - MT3608 Boost Converter Module

See LEAP#862 MT3608 Boost Converter Module.

Low-cost boost converter modules based on the MT3608 IC, with optional USB input connectors, and output adjustable up to 28V from input 2V~24V DC.

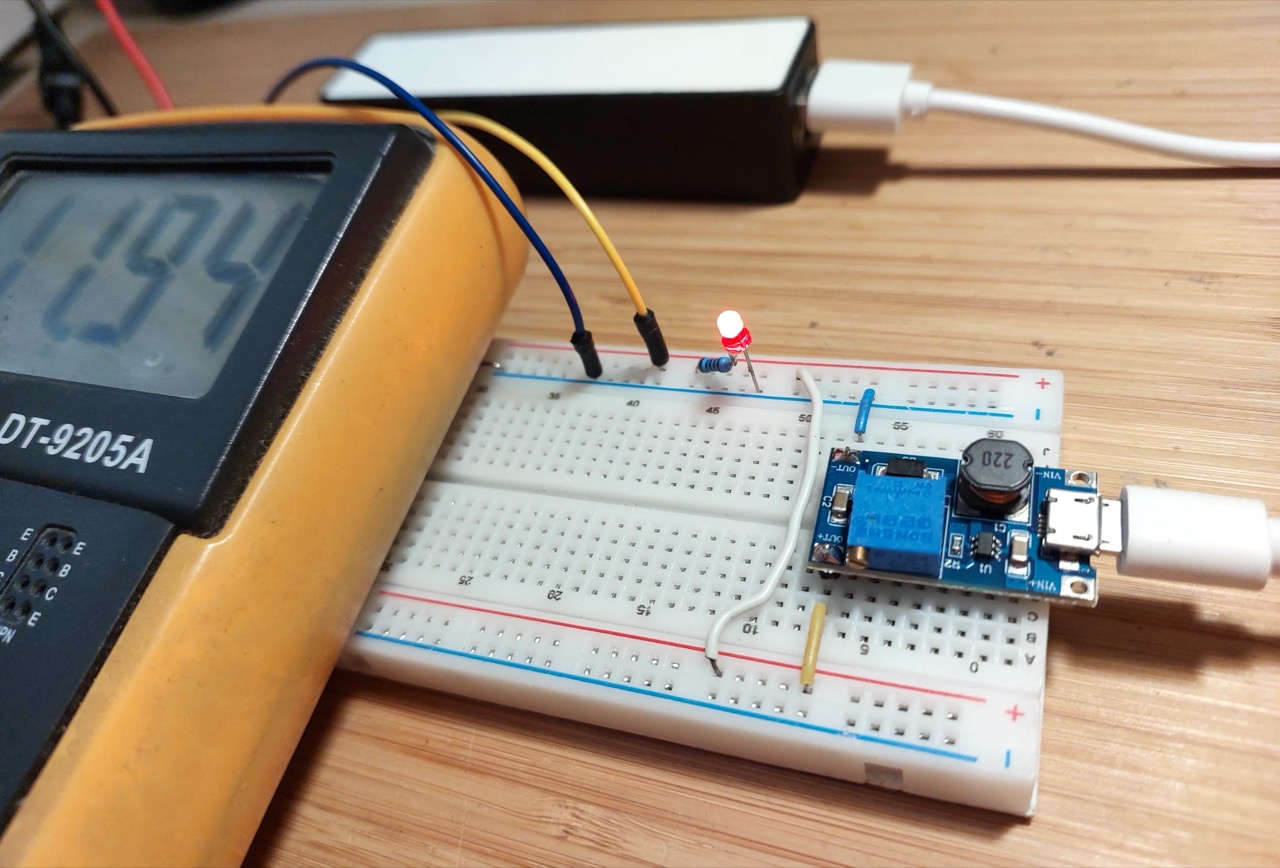

MT3608Module1_build

Credits and References

About LEAP#864
PowerSMPSBoost ConverterStep-up Converter
