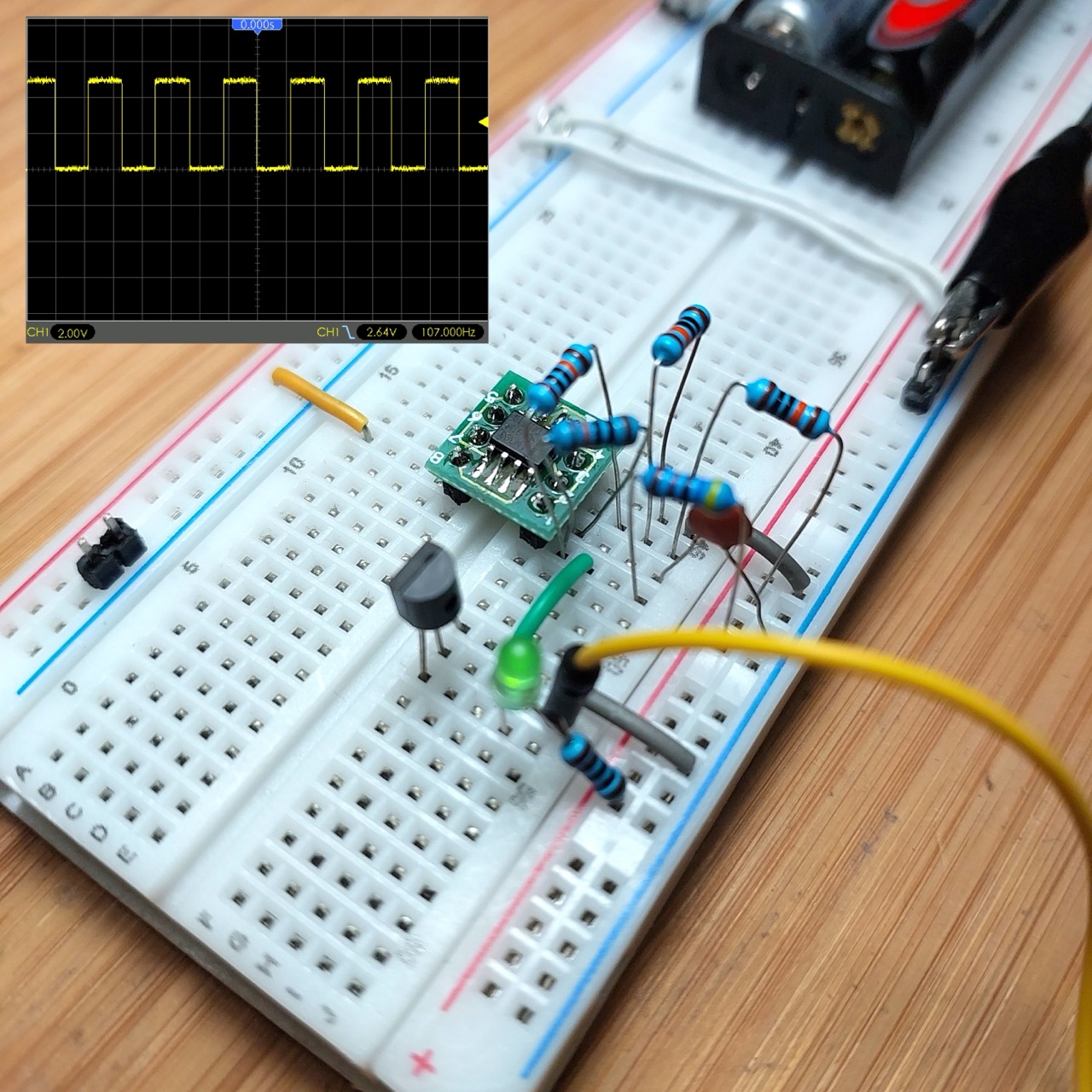

#807 LM393 Square-wave Oscillator
Demonstrating a free-running square wave oscillator circuit using an LM393 comparator.
Notes

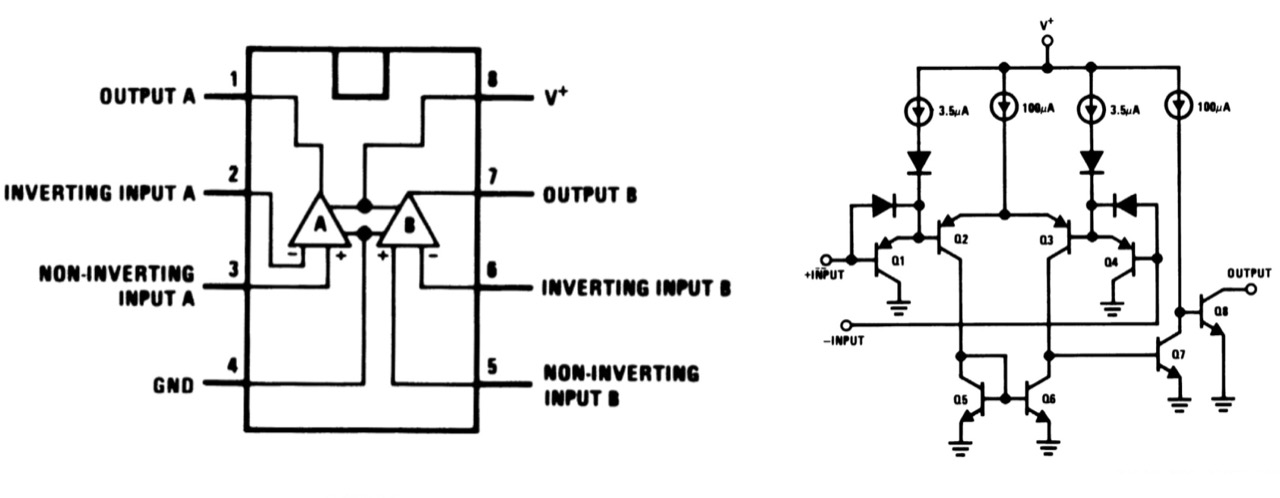

The LM393 is a dual voltage comparator IC containing two independent, high-gain comparators designed for single-supply operation. Each comparator compares two input voltages and drives an open-collector output that pulls low when the inverting input exceeds the non-inverting input, allowing easy interfacing with a wide range of logic levels via a pull-up resistor. The LM393 operates from a broad supply range (typically 2V to 36V), has low power consumption, and features an input common-mode range that includes ground, making it well suited for low-voltage and single-supply designs.
Because of its open-collector outputs and stable performance, the LM393 is widely used in threshold detectors, window comparators, zero-crossing detectors, oscillators, and sensor interfaces. It is essentially the dual version of the LM339, offering similar electrical characteristics in a smaller package, and is a common choice in mixed-signal, industrial, and embedded applications where reliable voltage comparison is required.

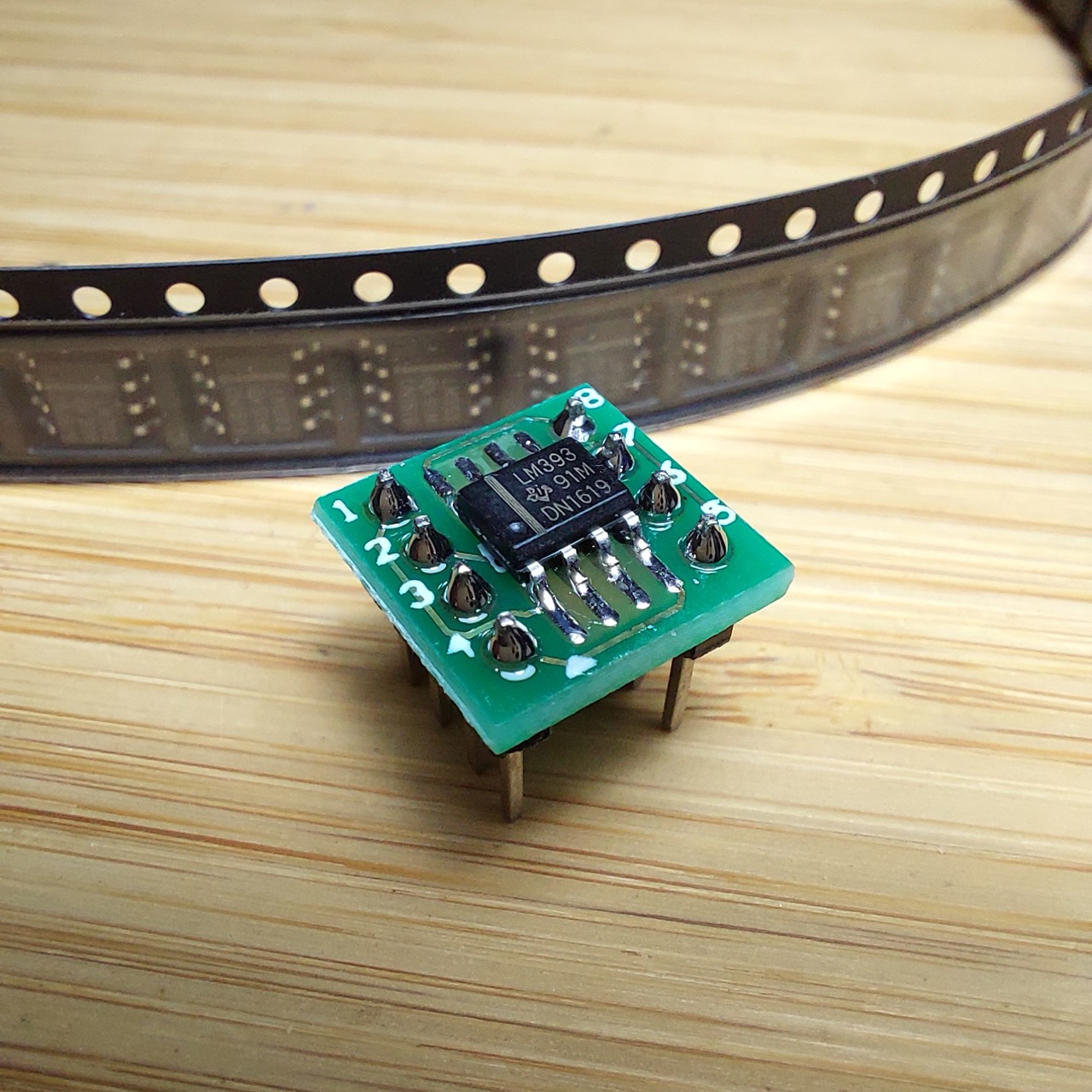

I have some LM393 chips in a SOP-8 package, so I put one on a DIP adapter for breadboard testing.
Circuit Design

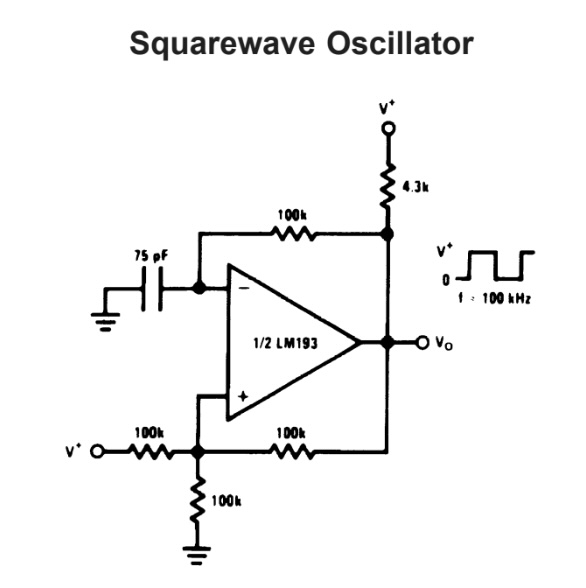

The National Semiconductor datasheet for the LM393 provides a reference design for a square wave oscillator.

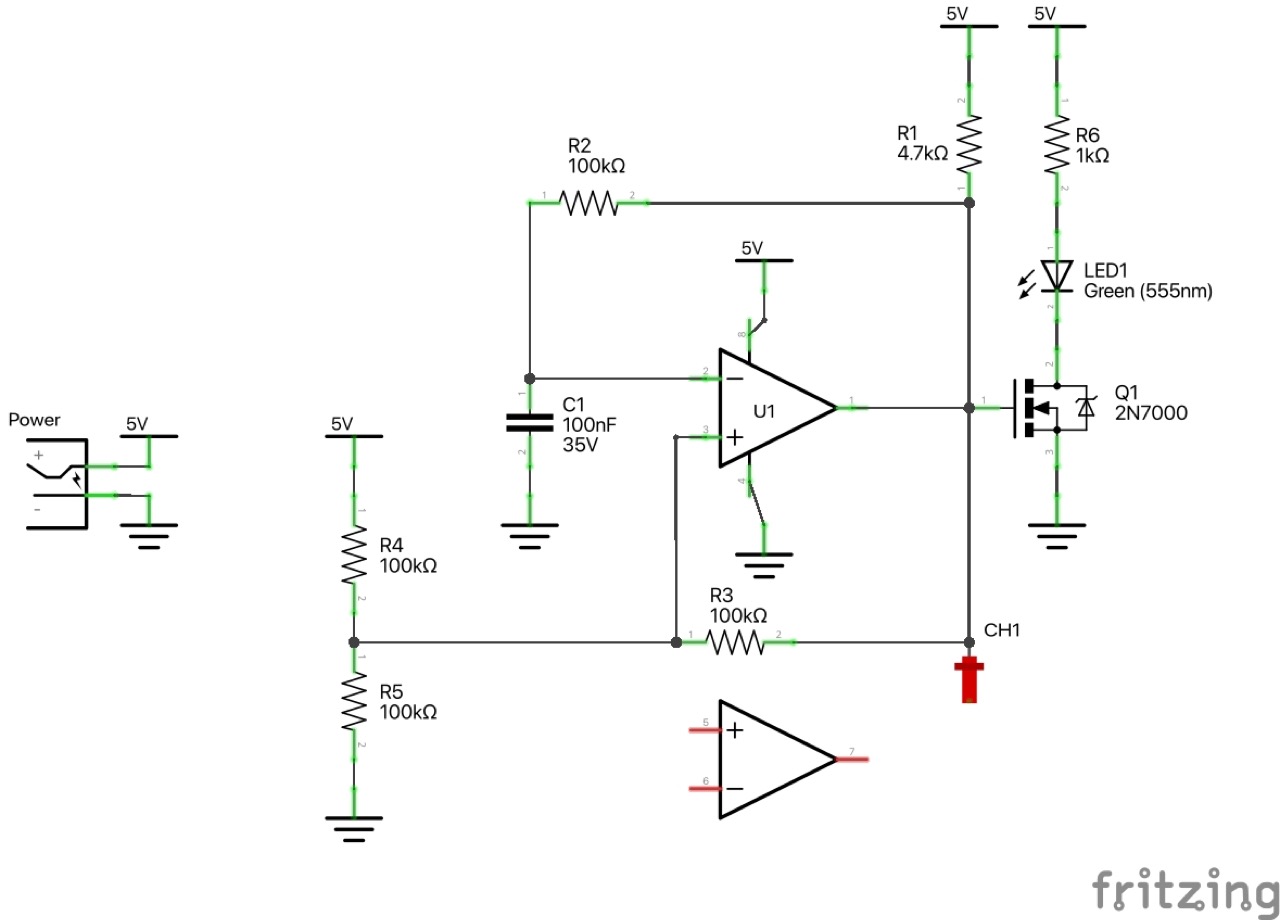

Let’s translate that to a practical experiment:
- I’ve increased the capacitor value to 100nF to slow down the oscillator.

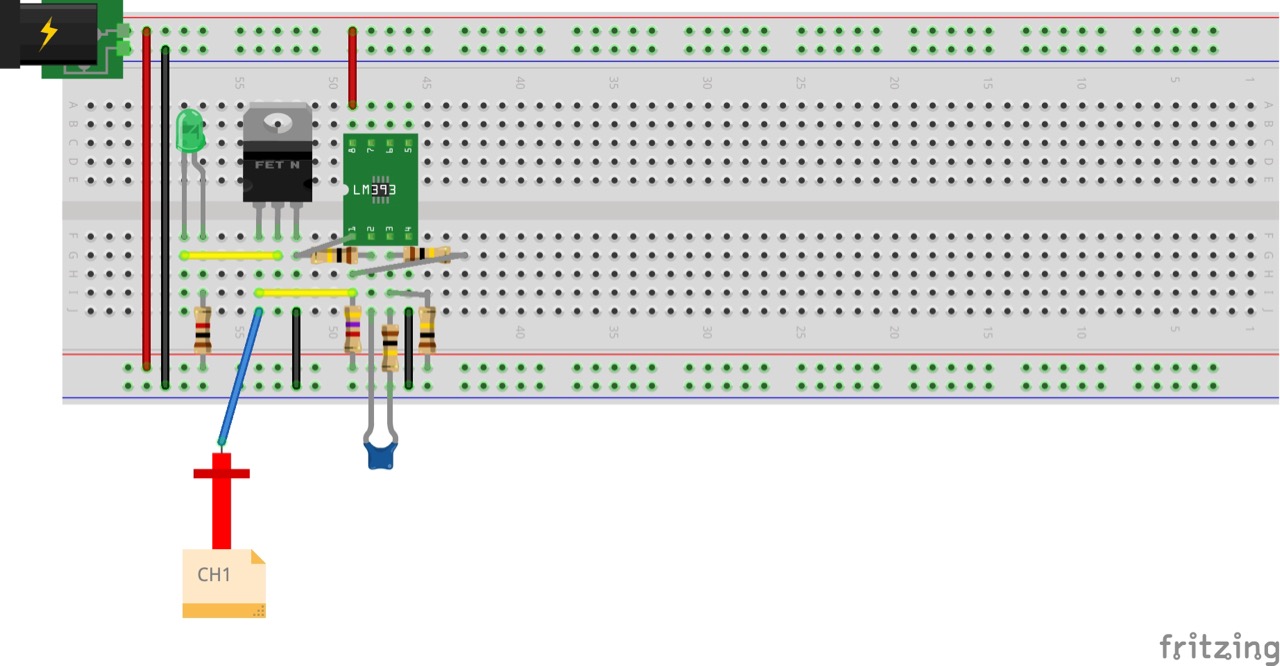

Designed with Fritzing: see SquareWaveOscillator.fzz.

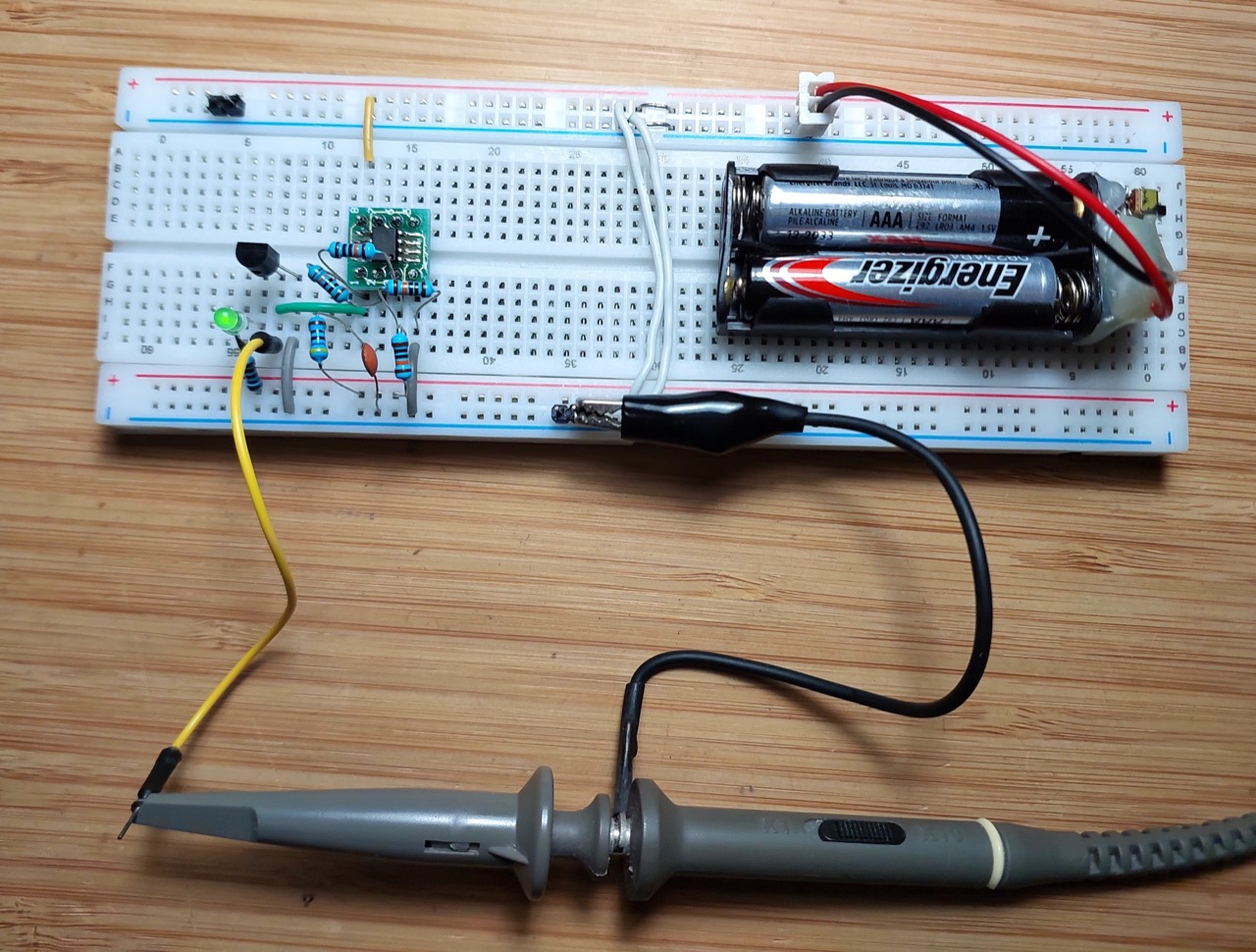

Putting the basic circuit on a breadboard:
Test Results

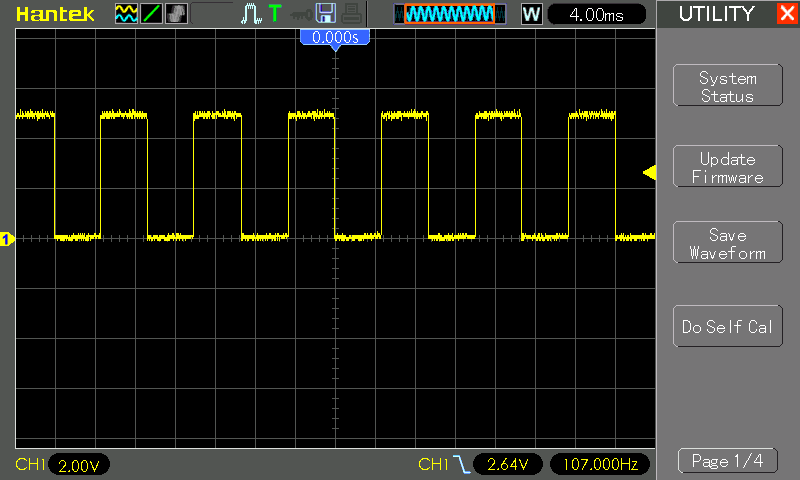

An it is oscillating nicely:
