#719 Voltage Controlled LED Dimmer

Demonstrating a voltage-controlled LED current source with a triangle wave generator.


Here’s a quick demo..



The brightness of an LED is proportional to the current, not the voltage.

Adjusting LED brightness is best achieved by controlling the current. PWM techniques “trick” the eye into seeing different levels of brightness by rapidly switching the LED on and off.

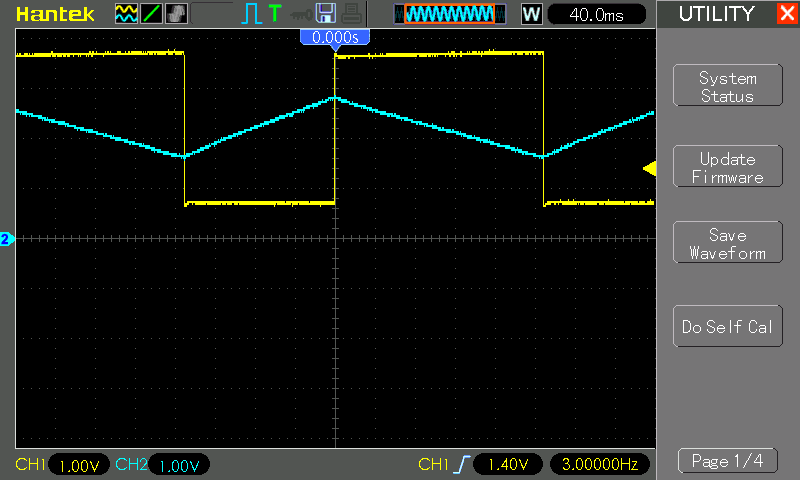

The circuit presented here demonstrates an FET current-mirror with current determined by input voltage. For demonstration purposes, it uses an Op-amp triangle wave generator as a source.

The circuit is similar to the Arduino-controlled LEAP#608 LED Current Control

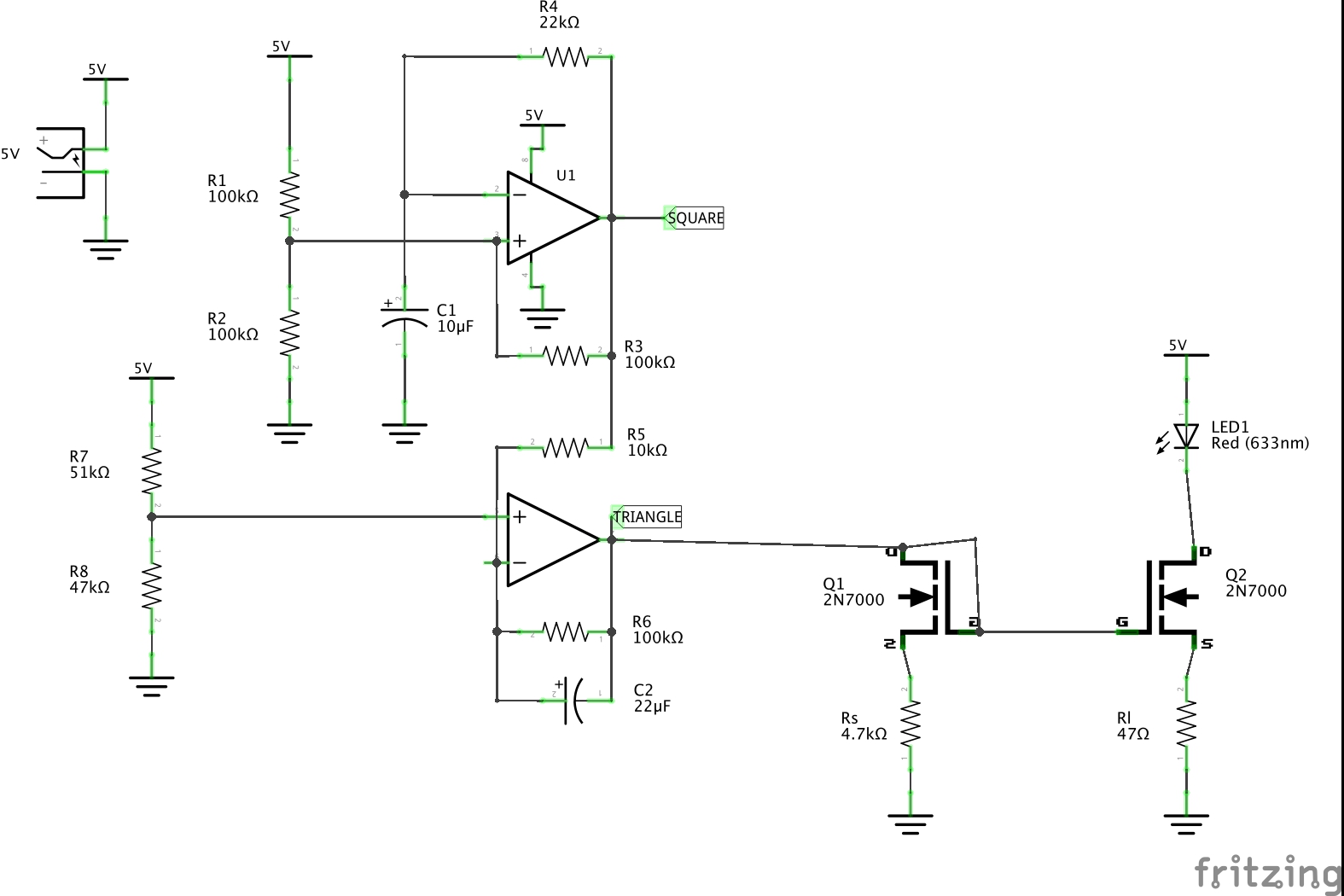

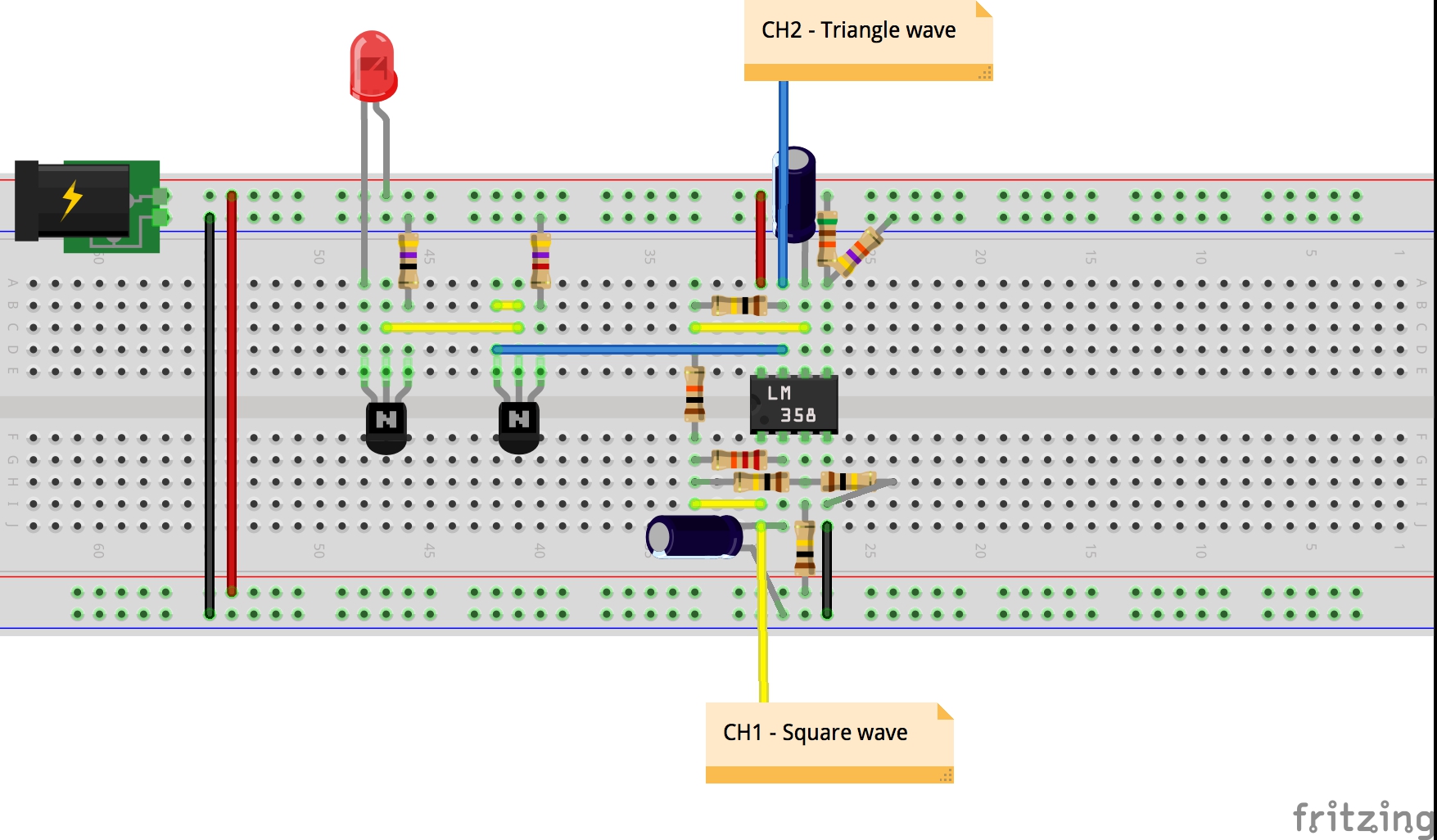

Circuit Design




Uses two op-amp units:

  • first configured as a Square Wave Generator
  • with the output fed into a second unit configured as an integrating amplifier, resulting in a triangle wave


Current Mirror

The basic current mirror provides a 1:1 current source. Dissimilar resistors in the tail of the input/output current source set up proportional current control. Essential current is proportional to the input/out source resistor values.

I’ve tested an output source resistor of 46Ω with input source resistors of both 4.7kΩ and 47kΩ. Results are tabulated below.

4.7kΩ : 47Ω

V(cl) I(cl) V(rl) I(rl)
200mV 0.043mA 64mV 1.36mA
400mV 0.085mA 176mV 3.745mA
600mV 0.128mA 328mV 6.979mA
800mV 0.170mA 500mV 10.600mA

47kΩ : 47Ω

200mV 0.004mA 40mV 0.851mA
400mV 0.009mA 104mV 2.213mA
600mV 0.013mA 232mV 4.936mA
800mV 0.017mA 384mV 8.170mA
