#231 LED Current Regulator

Test a current-regulator style LED dimmer circuit.



I’m looking at some alternatives for dimming a 12V LED strip. This circuit is by Jim Keith at electroschematics. Rather than using PWM, this circuit controls the current and theoretically should provide better flicker-free lighting even when dimmed.

LED Strip Specifications

I’m using this (very) cheap 3014 Led Strip Light. According to the seller specs:

Attribute Specification
Length 5m
LED Density 60 LED/m
Color cold white
View angle 120°
Working Voltage 12V DC
Power consumption 20W, 4W/m, ~67mW/LED
Working Temperature -40 to 70°
Luminous Flux 880-1080 Lumens/Meter
Size L500cm (5M) x W0.5cm x T0.20cm
lifespan >100,000 hours

LED Load and Power Supply

I’m using a 1m length strip for testing. At maximum load, that should be about 4W according to the specs.

Running the LED strip direct from a 12V supply, I actually measure 270mA or 3.24W.

The 12V/1.5A/18W power supply I’m using is quite adequate for this.

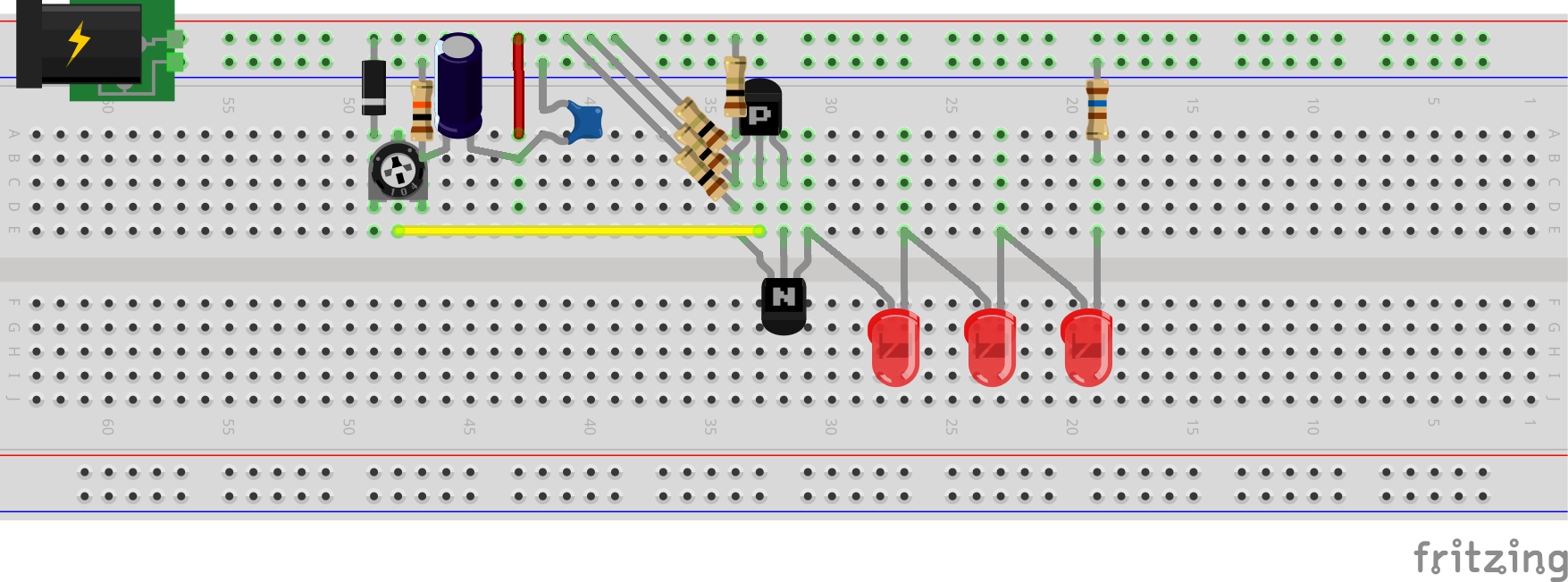

Dimmer Circuit

The dimmer circuit is essentially a high-gain PNP (NPN + PNP combo) with a 0.25Ω (1Ω x 4 in parallel) shunt resistor.

A 1kΩ pot controls the PNP current. The 1N5819 diode offsets the pot so it has little dead zone yet can still turn the LEDs “off”. The voltage divider necessarily means there’s at least 1.1mA leakage even when the LEDs are off.

The PNP control and shunt resistor means there’s also ~1.3V knowcked off the supply. So a 12V supply will never drive the LEDs to max brightness. For my purposes, they are bright enough already.

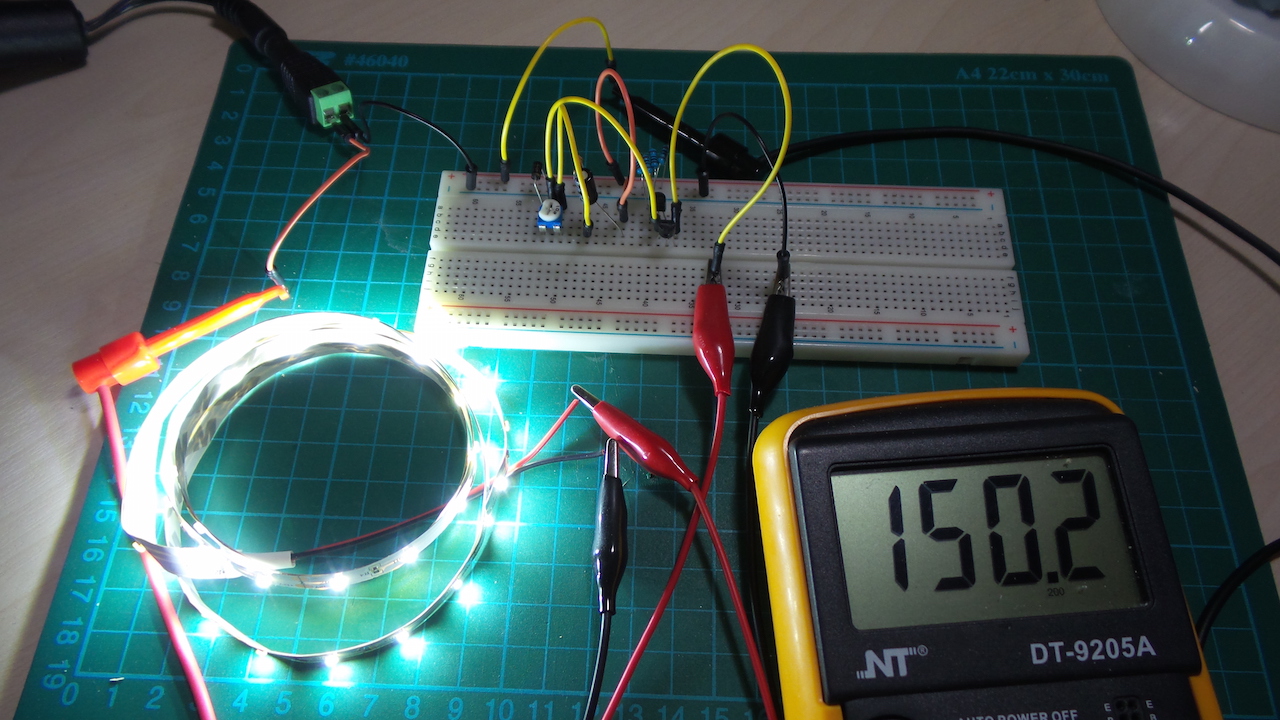

I’m measuring ~150mA on max brightness with this circuit and a 12V supply so 1.8W power consumption.

At that current, I was able to get away with an A42 NPN (rated for 500mA), but higher currents would need something beefier.



The Schematic

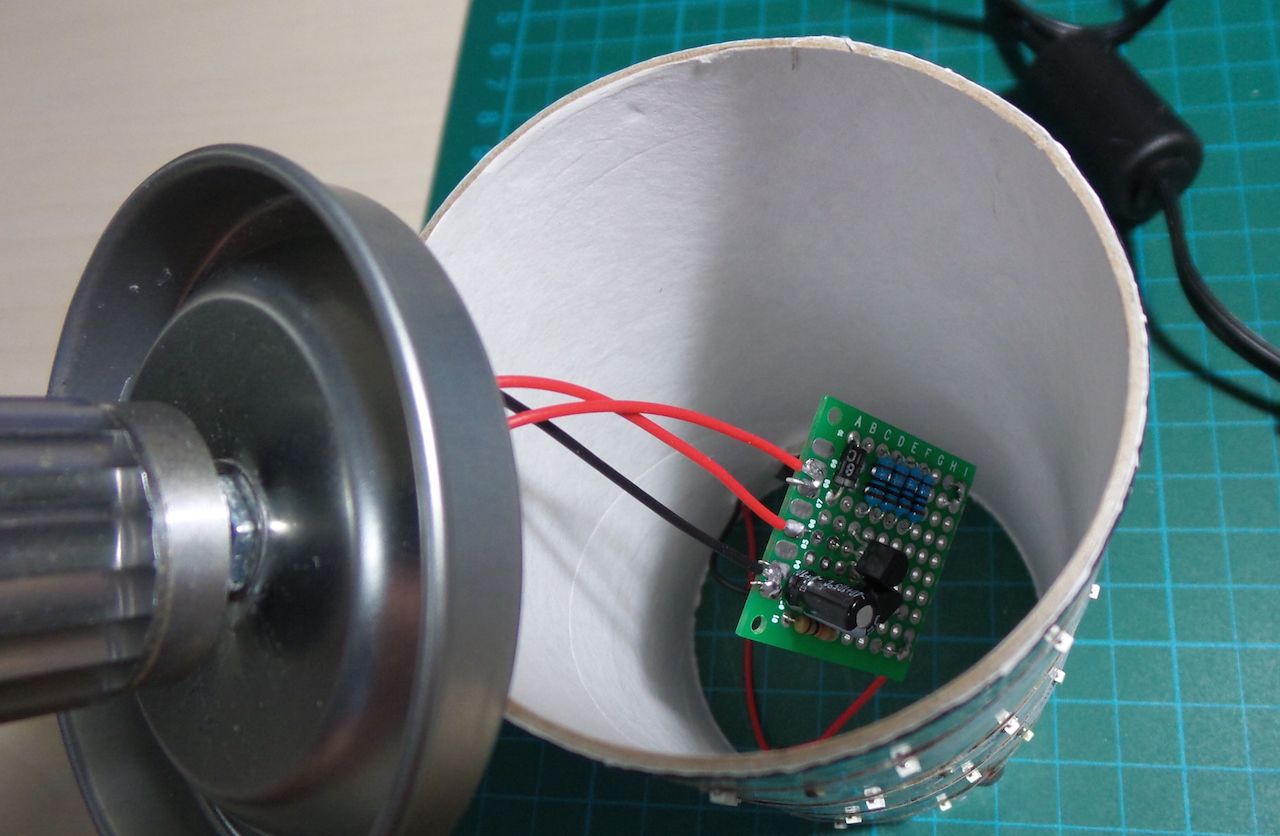

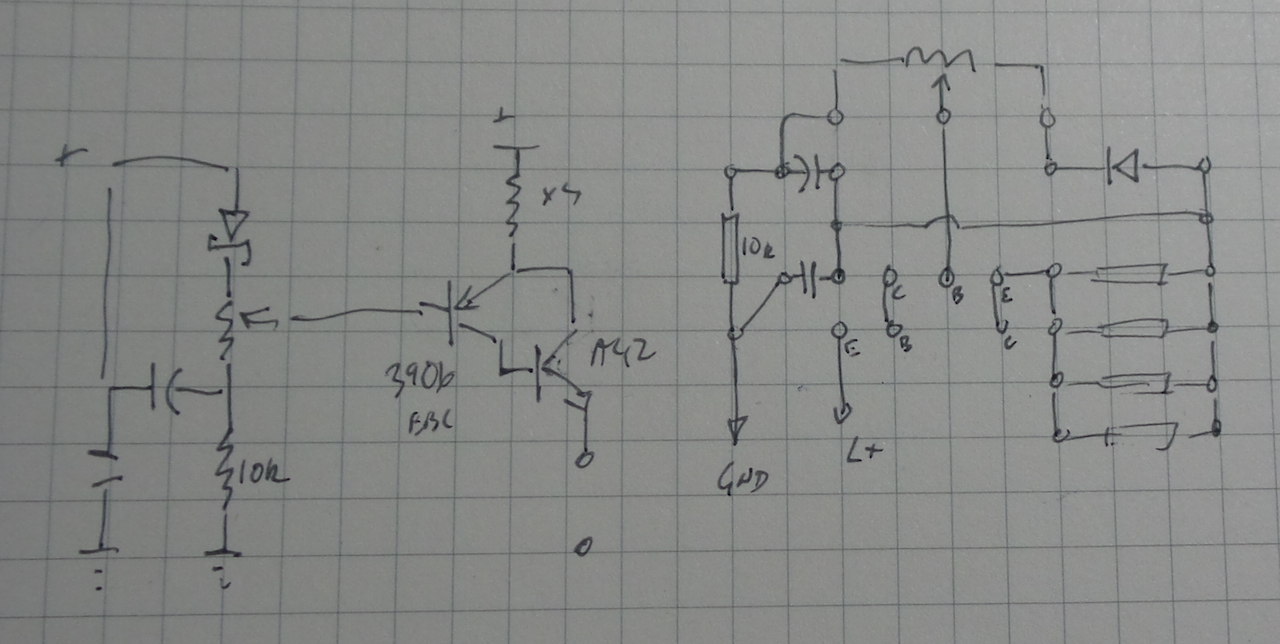

Protoboard Layout:




Credits and References
