#716 Decorative Flashing LED

A quick investigation of some decorative flashing LEDs that were scattered around a restaurant feed presentation(!)

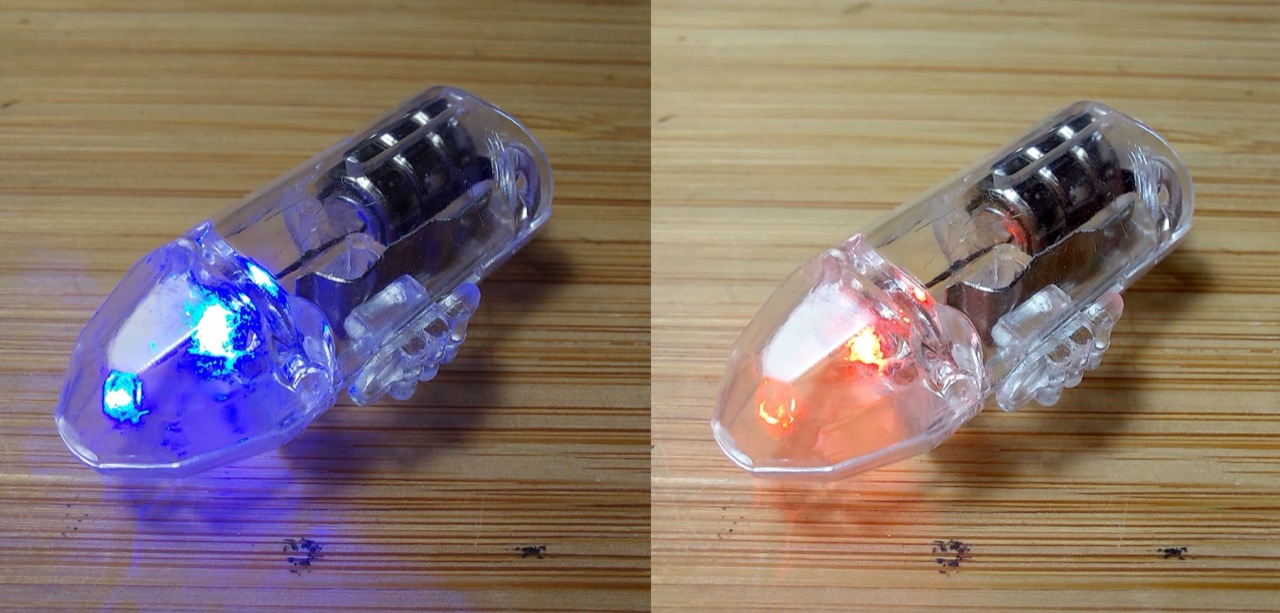

Build

Here’s a quick demo..

clip

Notes

I first saw these at a restaurant, where the RGB flashing units were scattered around the the base of some “special” dishes. I was curious, so I borrowed one, and found them listed on aliexpress, for example, this listing: 12pcs white mini led balloon lamp LED balloon Light Paper Lantern Balloon Floral for Wedding Party Decoration

At first I couldn’t see if the flashing circuit as separate or integrated with the LED. After disassembly, I was able to confirm that the LED is just a standard “RGB Fast Flash” LED. These are widely available, for example, from this seller on aliexpress: 100PCS F3 F5 3MM 5MM RGB 7 color Fast flash/Slow flash LED light-emitting diode (LED) 3mm RGB 7 color fast flash LED Slow flash

Circuit Design

The units simply comprise:

  • RGB Fast Flash LED
  • a switch mechanism
  • 3 x 1.5V LR41 battery in series (4.5V total)

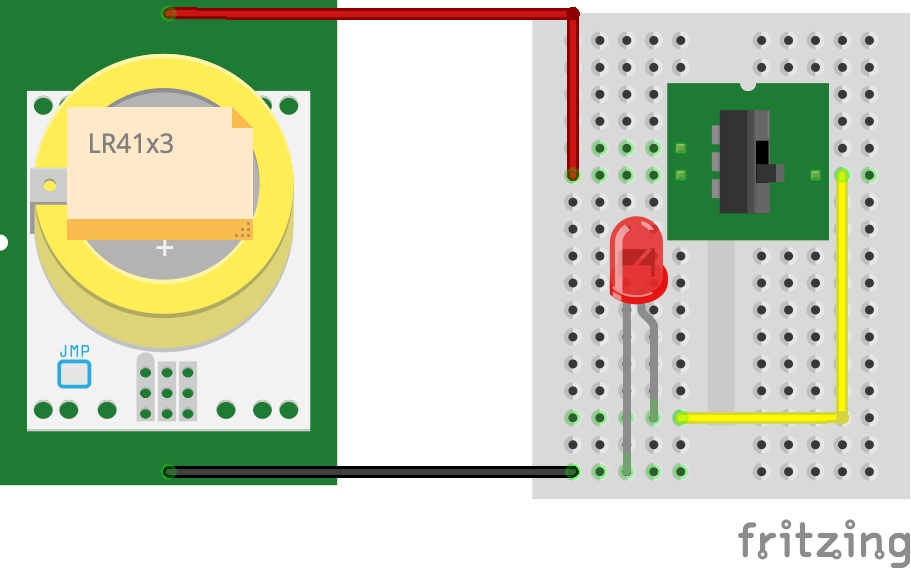

bb

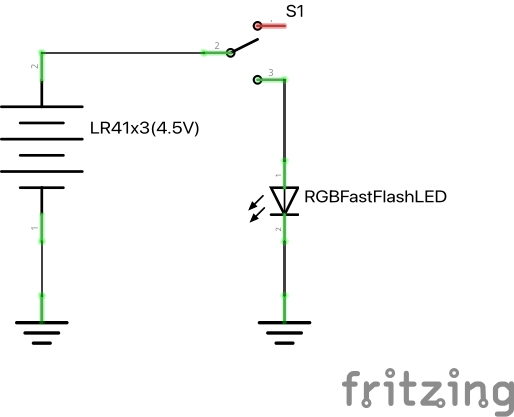

schematic

Disassembly and Test

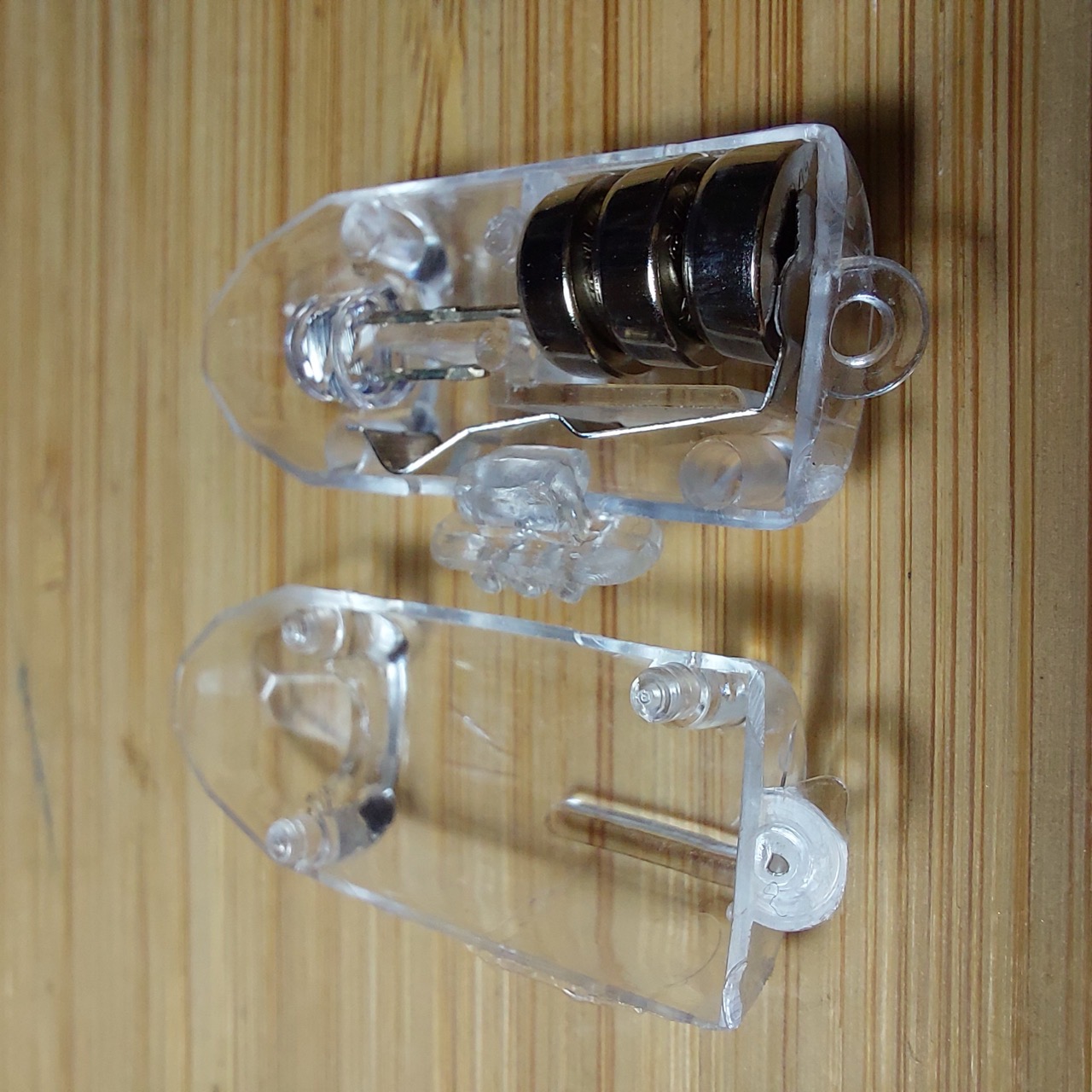

parts1

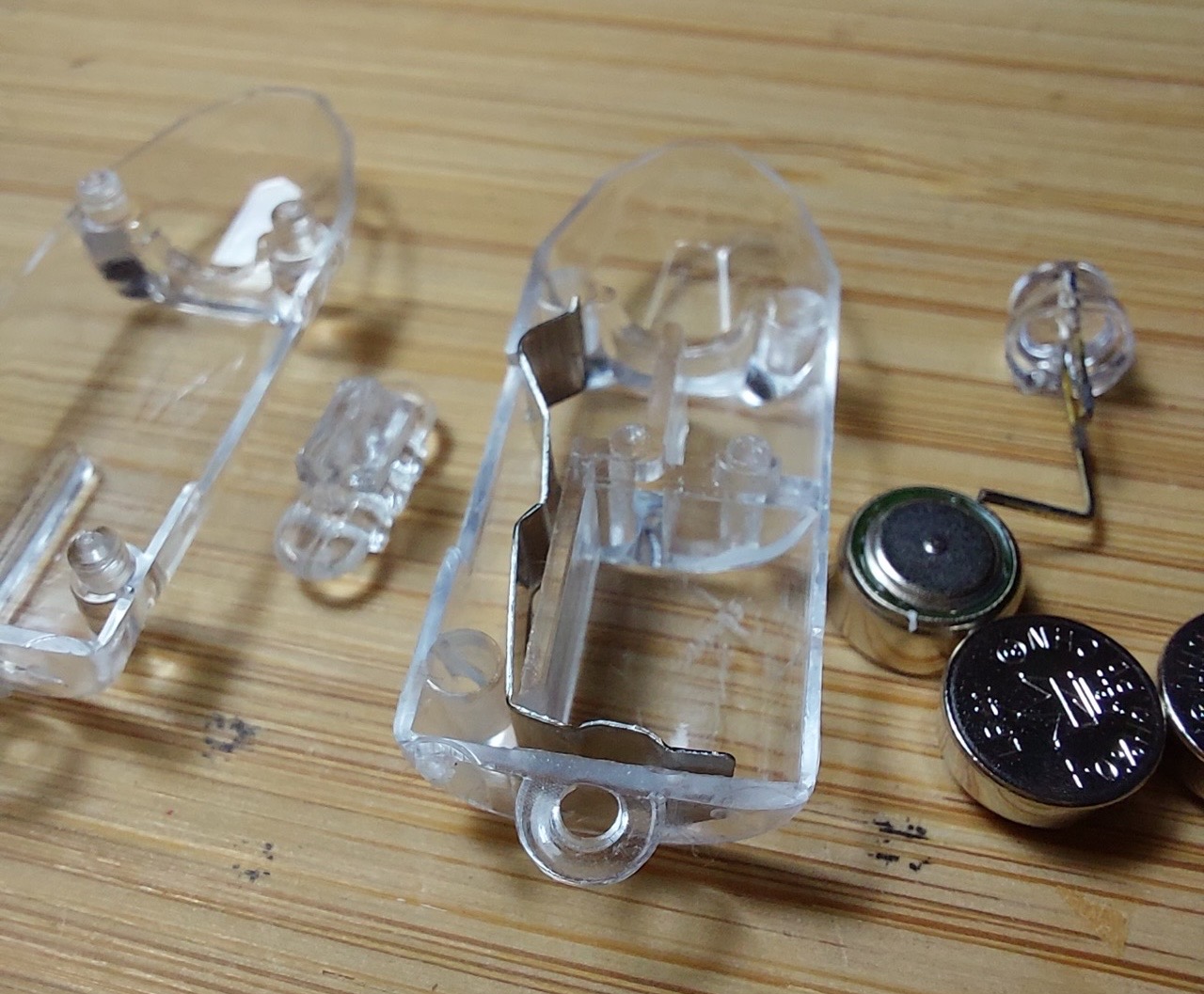

parts2

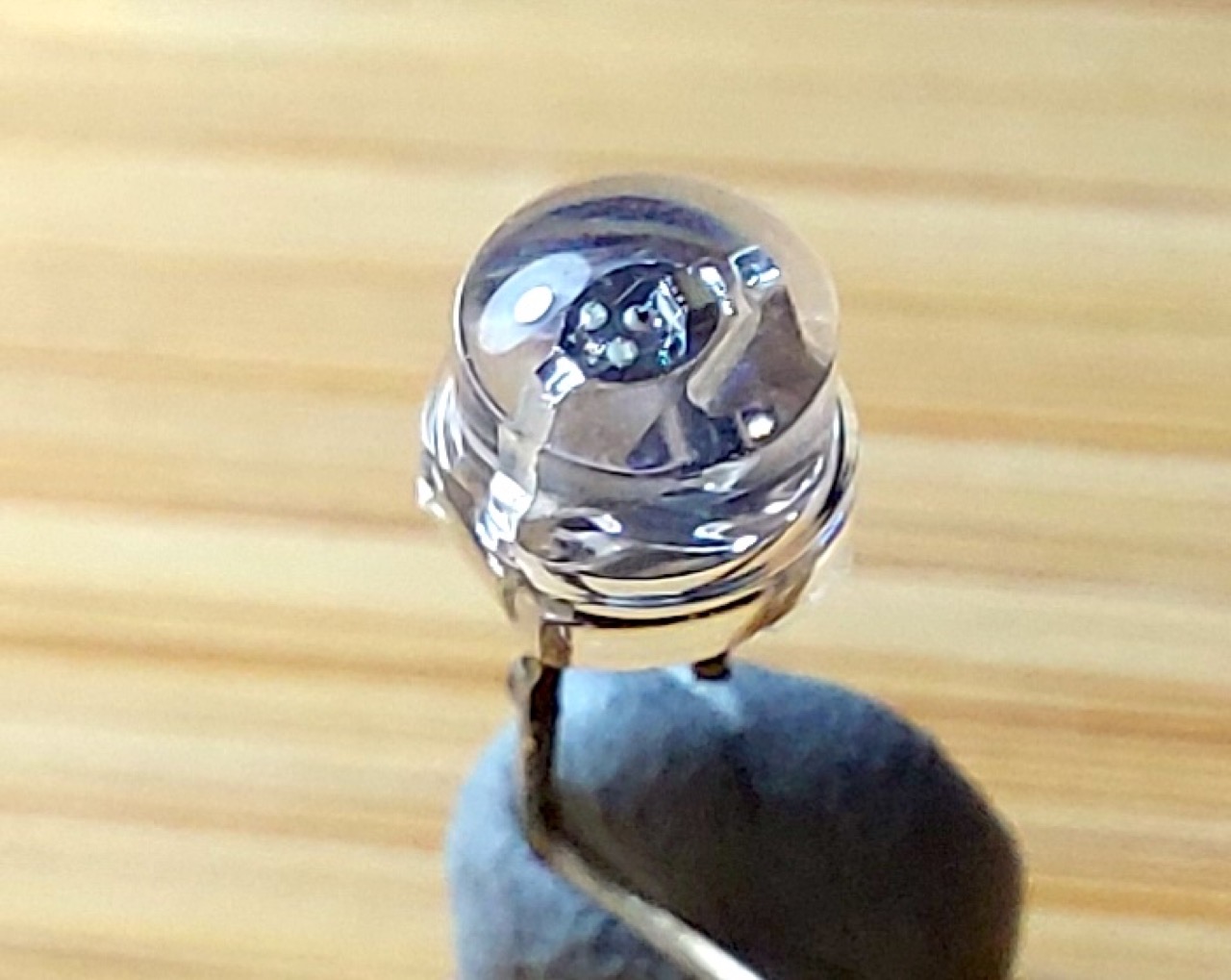

Verifying the RGB Fast Flash LED:

parts3

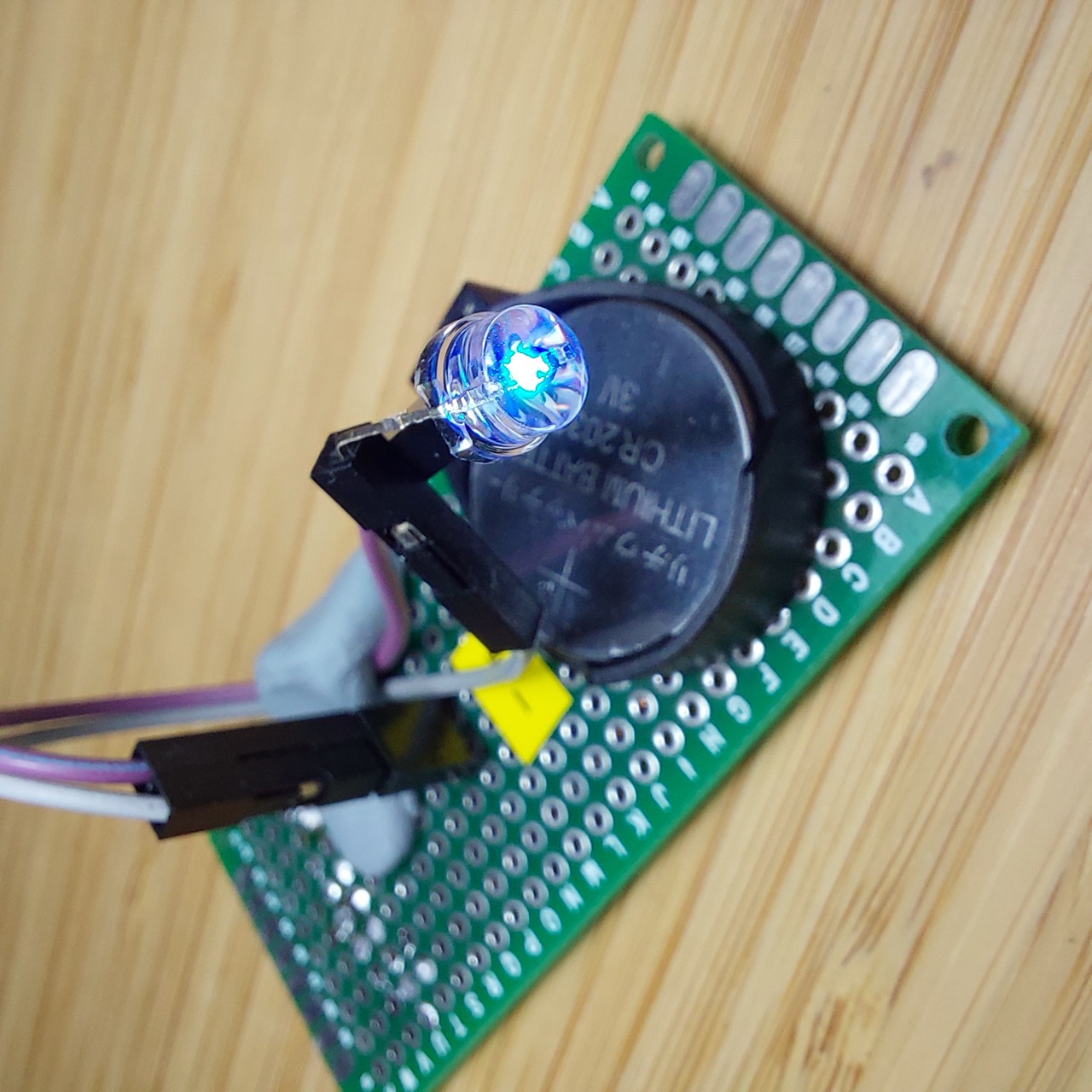

bb_build
