#582 74LS14 Schmitt Oscillator

About the 74LS14 Hex Inverter with Schmitt Trigger Inputs, and testing its behaviour as a relaxation oscillator square wave generator.

Build

Notes

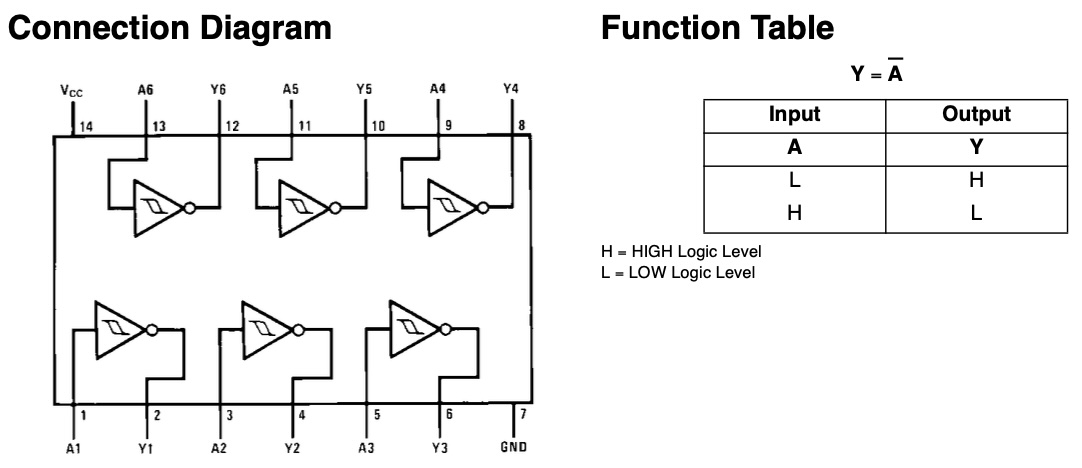

The 74LS14 is a popular hex inverter IC (integrated circuit) that belongs to the 74LS (low-power Schottky TTL) series of logic chips. It contains six independent Schmitt-trigger inverters, each of which takes an input signal and outputs its logical inverse. The Schmitt-trigger design provides hysteresis, making the 74LS14 particularly effective at cleaning up noisy signals and ensuring sharp transitions between logic states. It operates with a standard 5V power supply and is widely used in digital circuits for signal conditioning, waveform shaping, and debouncing switches. The 74LS14 is known for its reliability, ease of use, and compatibility with other TTL (Transistor-Transistor Logic) devices.

Key Specifications:

Supply Voltage: 5.00 V (4.75 V to 5.25 V)
Input Hysteresis: 0.8V
HIGH output voltage: 3.4V typical (2.7V min)
LOW output voltage: 0.35V typical (0.5V max)
Propagation delay LOW-HIGH: 5-25ns
Propagation delay HIGH-LOW: 5-33ns

Test Circuit: The Schmitt Oscillator

Note: I’ve covered this circuit before in LEAP#022 Square Wave - Schmitt Oscillator, but this is an updated and more detailed treatment.

An inverter Schmitt oscillator circuit is a simple and widely used configuration for generating square wave signals, typically built using a Schmitt-trigger inverter (like the 74LS14) along with a resistor and capacitor. The circuit works by exploiting the hysteresis property of the Schmitt-trigger, which causes the inverter to switch states at different voltage thresholds. The capacitor charges and discharges through the resistor, creating a time delay that determines the oscillation frequency. When the capacitor voltage reaches the upper threshold, the inverter switches to a low output, causing the capacitor to discharge; when it falls to the lower threshold, the inverter switches back to a high output, repeating the cycle. This results in a continuous square wave output whose frequency is determined by the RC time constant (f = 1 / (1.2 * R * C)). The circuit is valued for its simplicity, reliability, and ability to produce stable oscillations, making it useful in applications like clock generation, tone generation, and timing circuits.

Circuit Design

One inverter unit of the 74LS14 Hex Inverter with Schmitt Trigger Inputs is used as an oscillator. The input and output levels are read with analog input pins, and the values is echoed to the Arduino serial port for plotting.

All unused outputs on the 74LS14 are left open circuit. Unused inputs are grounded, as is recommended to avoid unstable operation.

A second inverter unit is chained on the output and used to drive an indicator LED via an NFET switch.

For R1=1kΩ, and C1=100nF, the frequency of the oscillation is calculated as 8333 Hz:

f = 1 / (1.2 * R * C)
f = 1 / (1.2 * 1kΩ * 100nF)
f = 8333 Hz

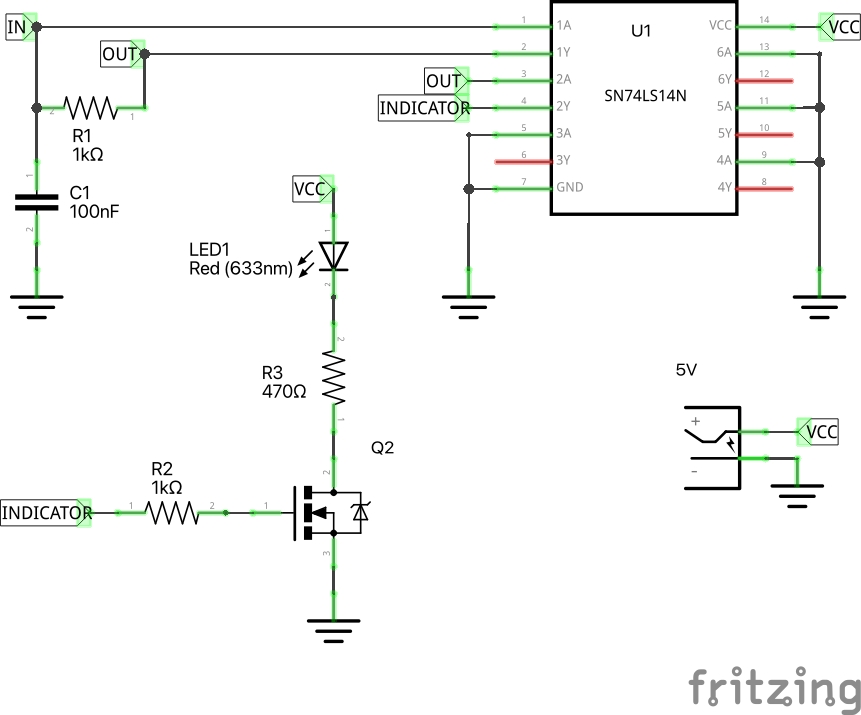

schematic

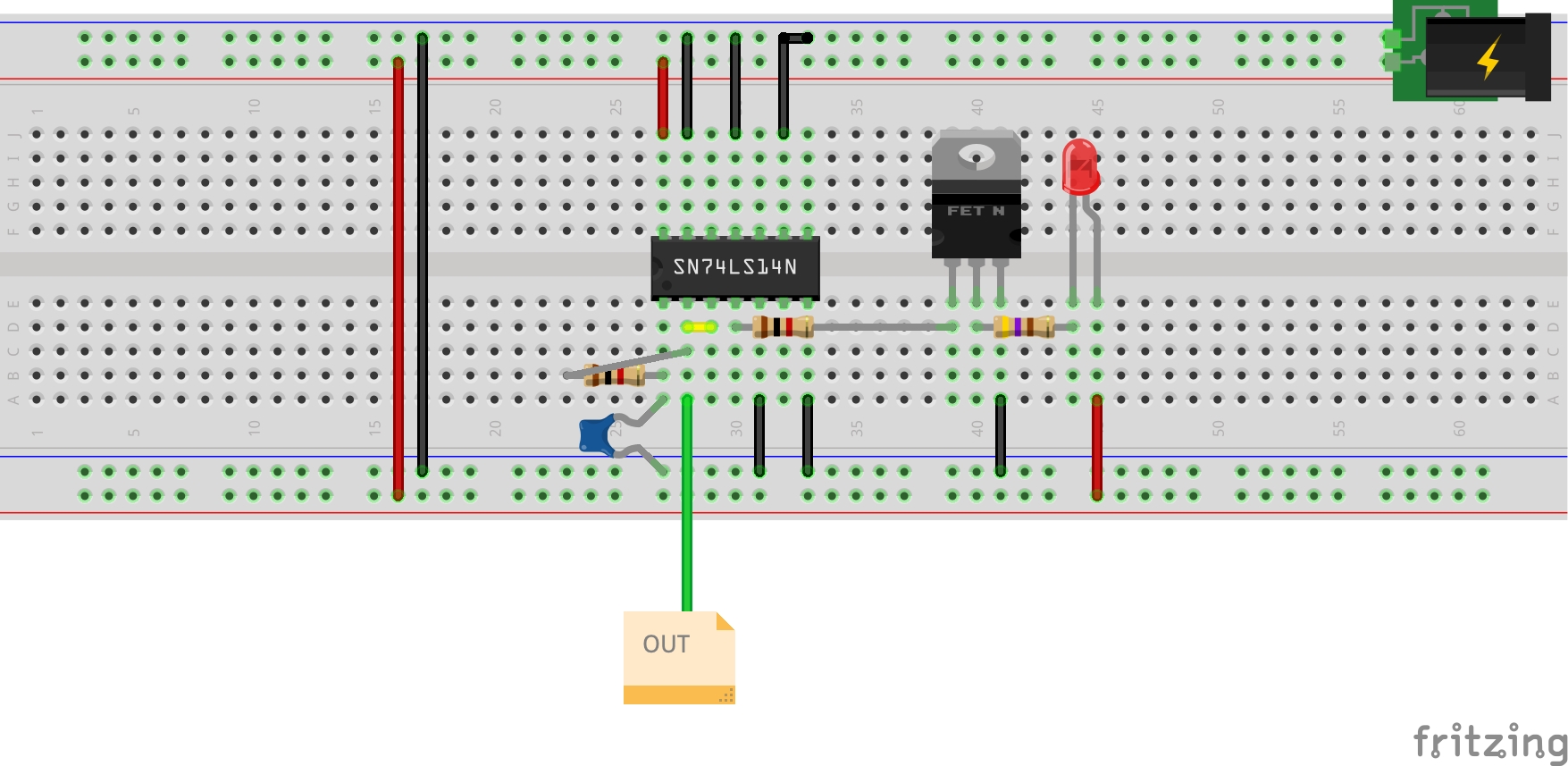

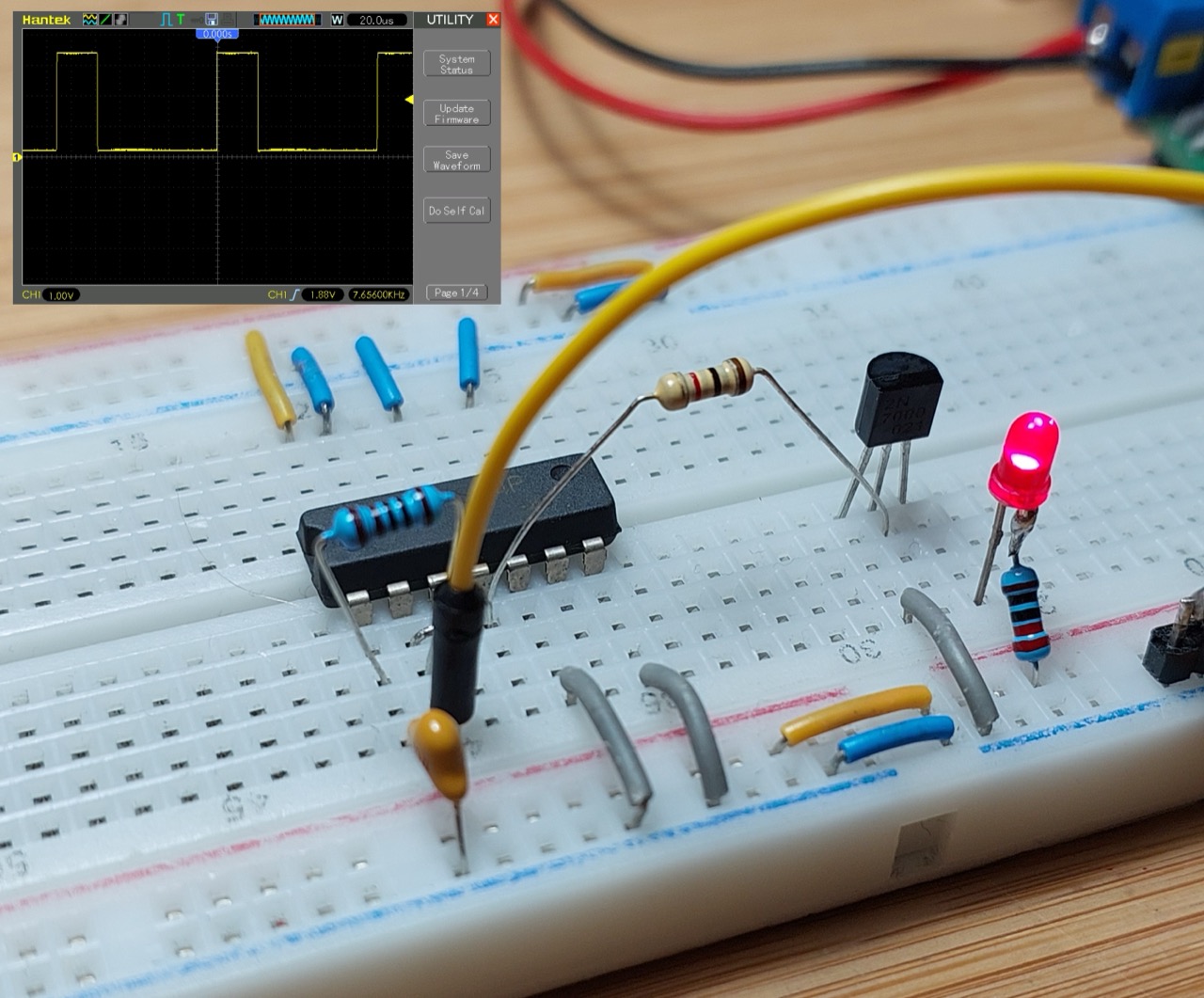

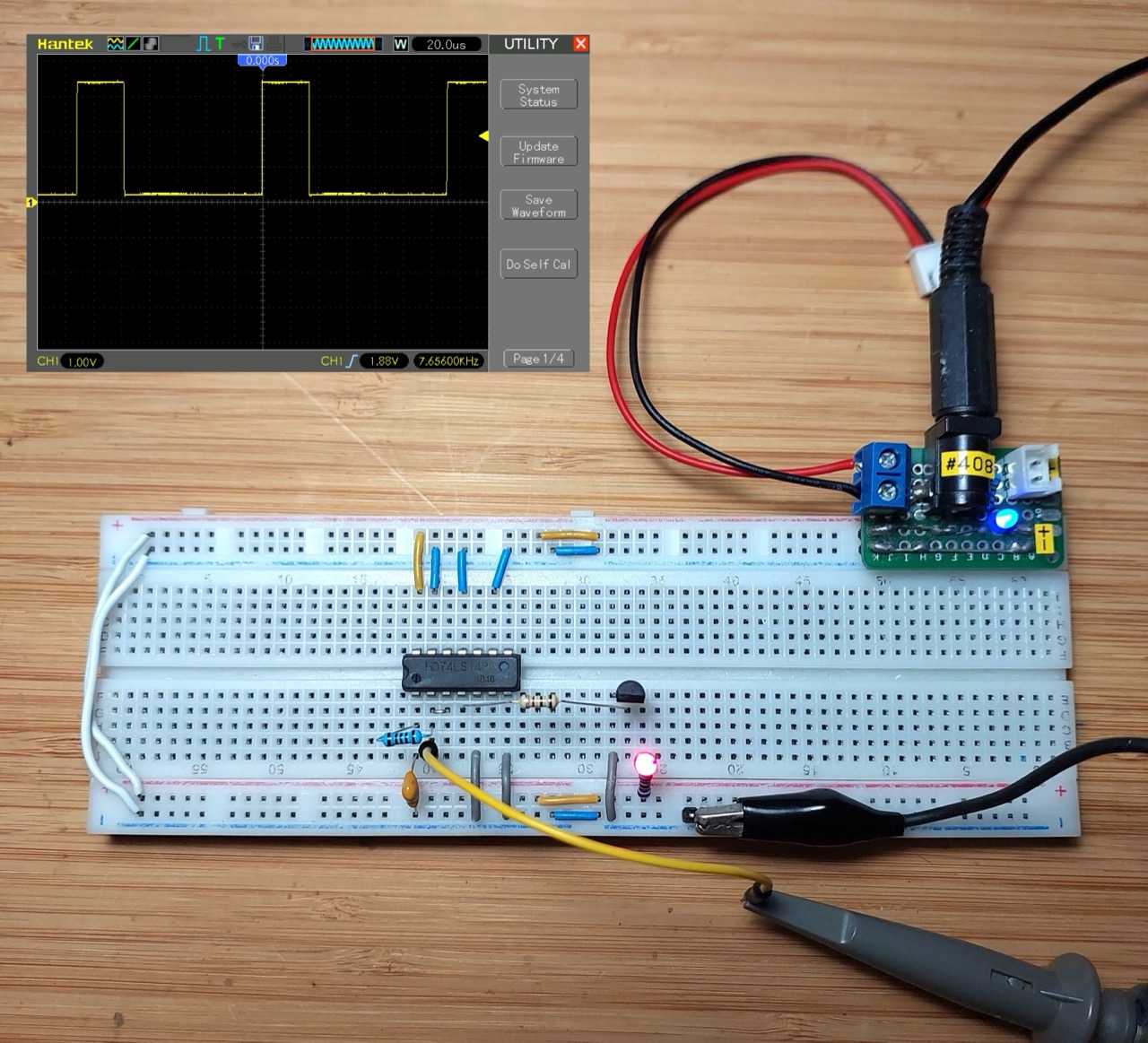

bb_build

Test Results

Schmitt inverters produce a non-symmetrical waveform. The duty cycle is about 33%, and levels not very stable. This is particular to the LS (low-power Schottky) version of the 7414.

To oscillate at all, R values are recommended to be kept between 100Ω and 1kΩ, and C between 1nF and 1000µF. In practice on my bench, I was able to push the limits a bit:

R=2.2kΩ works, fails with R=4.7kΩ (C=100nF)
still working with C=20pF (R=1kΩ), though the waveform is quite distorted
still working with C=2200µF (R=1kΩ), with a good waveform

Note: in these tests, capacitors >=1µF are electrolytic, and < 1µF are monolithic ceramic.

As can be seen, actual frequencies are quite far from predicted values especially for lower capacitances where running on a breadboard is not helping.

R1	C1	Calc Frequency	Measured Frequency	+duty%	Waveform Quality

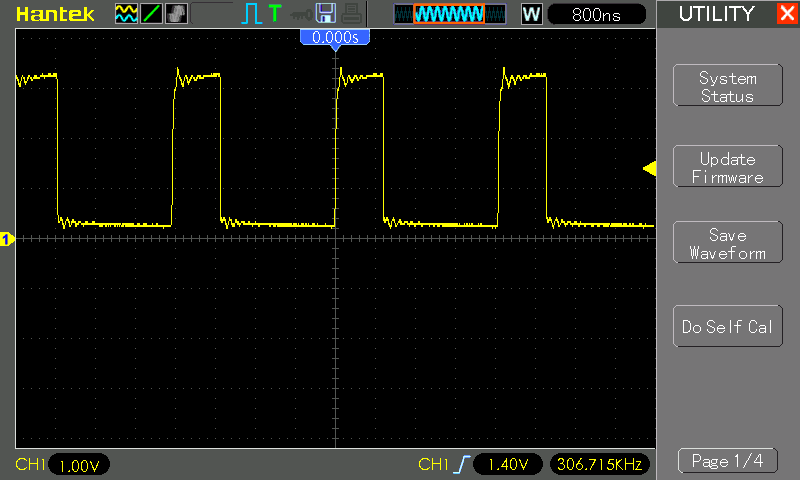

220Ω	10nF	378.8 kHz	306.7 kHz	29.4%	square but significant ringing
220Ω	100nF	37.88 kHz	34.3 kHz	28.8%	ok, but a rising top
1kΩ	20pF	41.67 MHz	12.50 MHz	30.9%	very poor
1kΩ	100pF	8.333 MHz	4.85 MHz	26.1%	poor
1kΩ	330pF	2.525 MHz	2.04 MHz	24.6%	poor

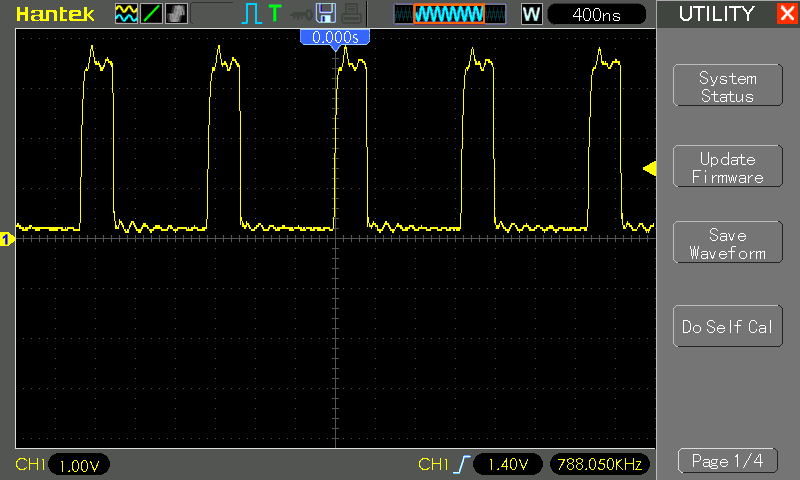

1kΩ	1nF	833.3 kHz	788.0 kHz	25.0%	square but significant ringing
1kΩ	10nF	83.33 kHz	69.83 kHz	25.1%	square, a little ringing
1kΩ	33nF	25.25 kHz	20.42 kHz	25.4%	square, a little ringing

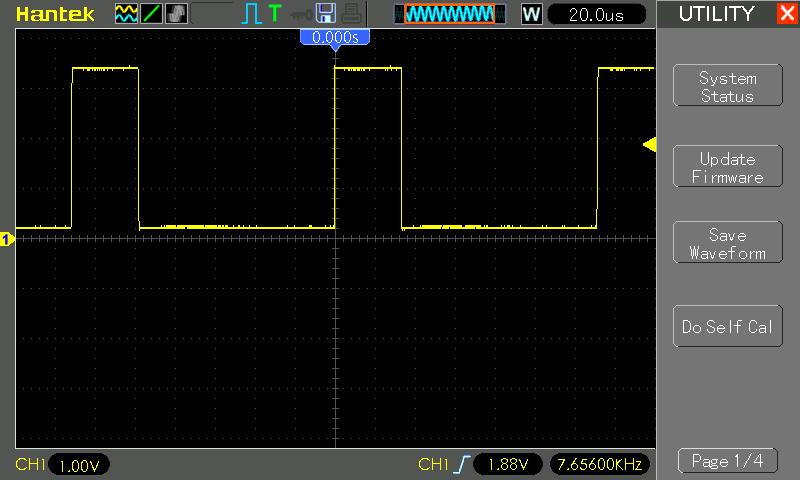

1kΩ	100nF	8.333 kHz	7.61 kHz	25.4%	good, square
1kΩ	330nF	2.53 kHz	2.18 kHz	25.3%	good, square
1kΩ	1µF	833.3 Hz	980 Hz	23.6%	good, square
1kΩ	10µF	83.33 Hz	63 Hz	25.1%	good, square
1kΩ	100µF	8.333 Hz	6.6 Hz	25.3%	good, square
1kΩ	1000µF	0.833 Hz	0.8 Hz	25.1%	good, square
1kΩ	2200µF	0.378 Hz	0.3 Hz	25.6%	good, square
2.2kΩ	10nF	37.88 kHz	26.98 kHz	18.9%	square, a little ringing
2.2kΩ	100nF	3.788 kHz	2.92 kHz	29.1%	good, square
