#739 Nucleo-64 Case

Testing various 3D printed bases and cases for the STM32 Nucleo-64 development board with STM32U385RG.

Build

Notes

The following are the designs I have checked out so far, printed at the library.

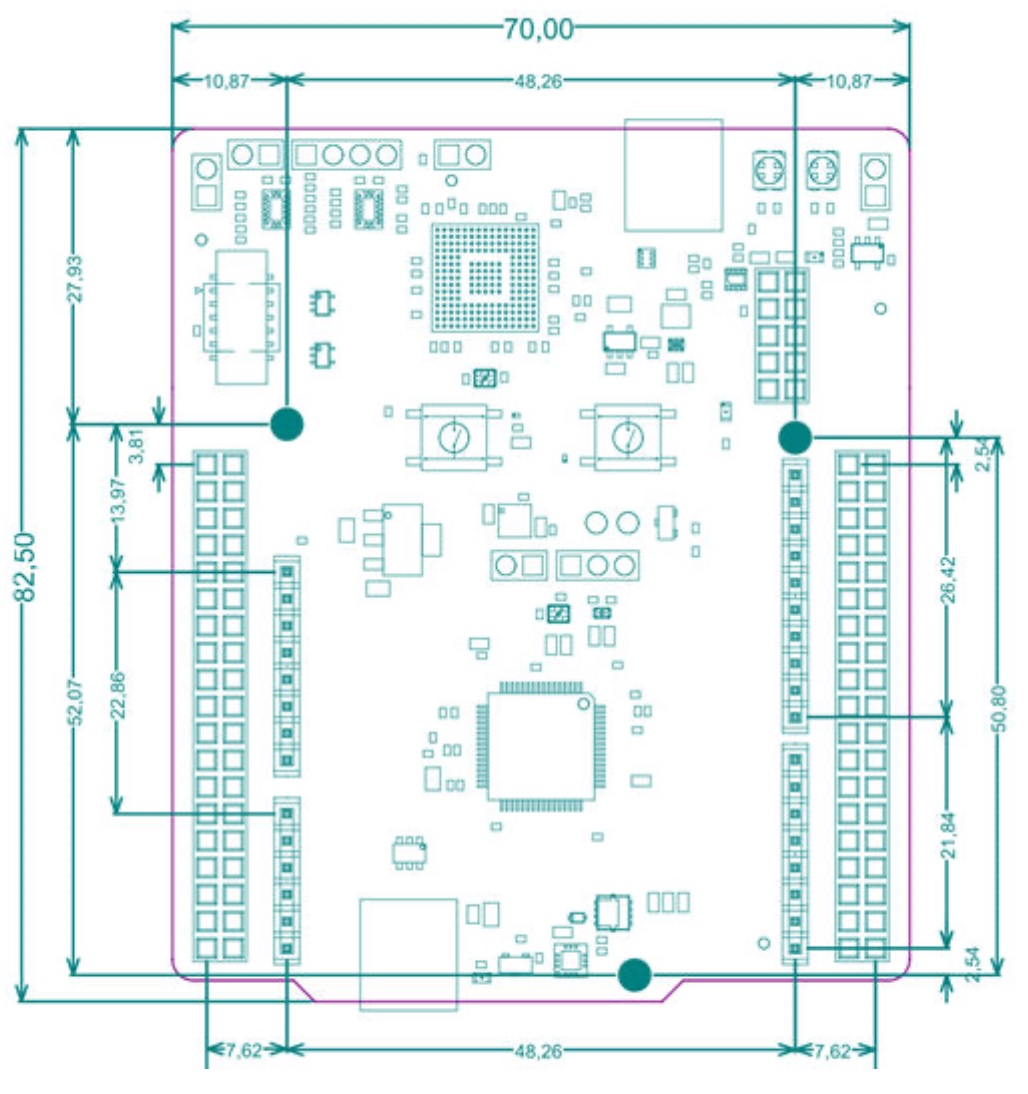

STM32 Nucleo-64 Board Dimensions

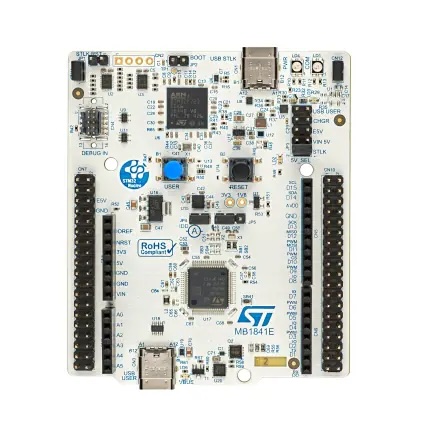

NUCLEO-U385RG-Q STM32 Nucleo-64 development board with STM32U385RG, supports Arduino and ST morpho connectivity

nucleo-u385rg-q

Board reference MB1841

MB1841-board-dimensions

Base 1: STM32 Nucleo coaster

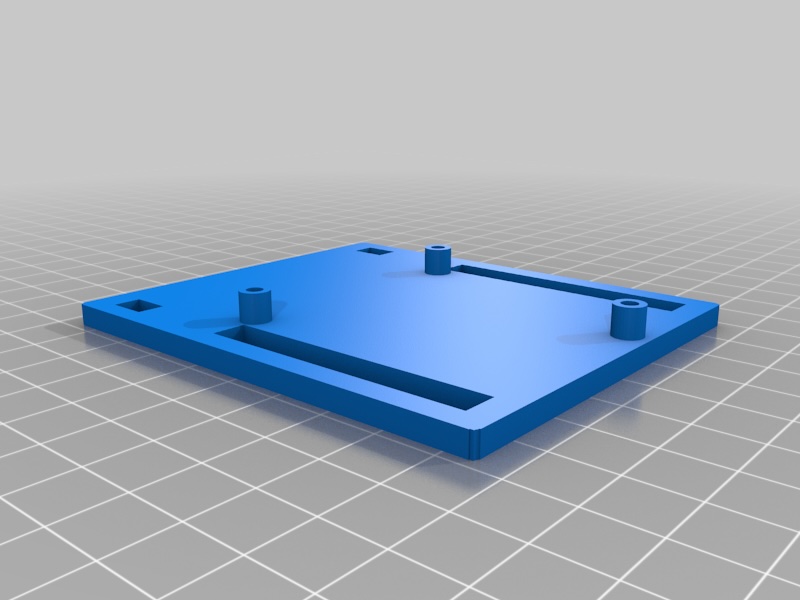

A basic mounting plate - ideal for protecting the board on the workbench without inhibiting access.

1589714

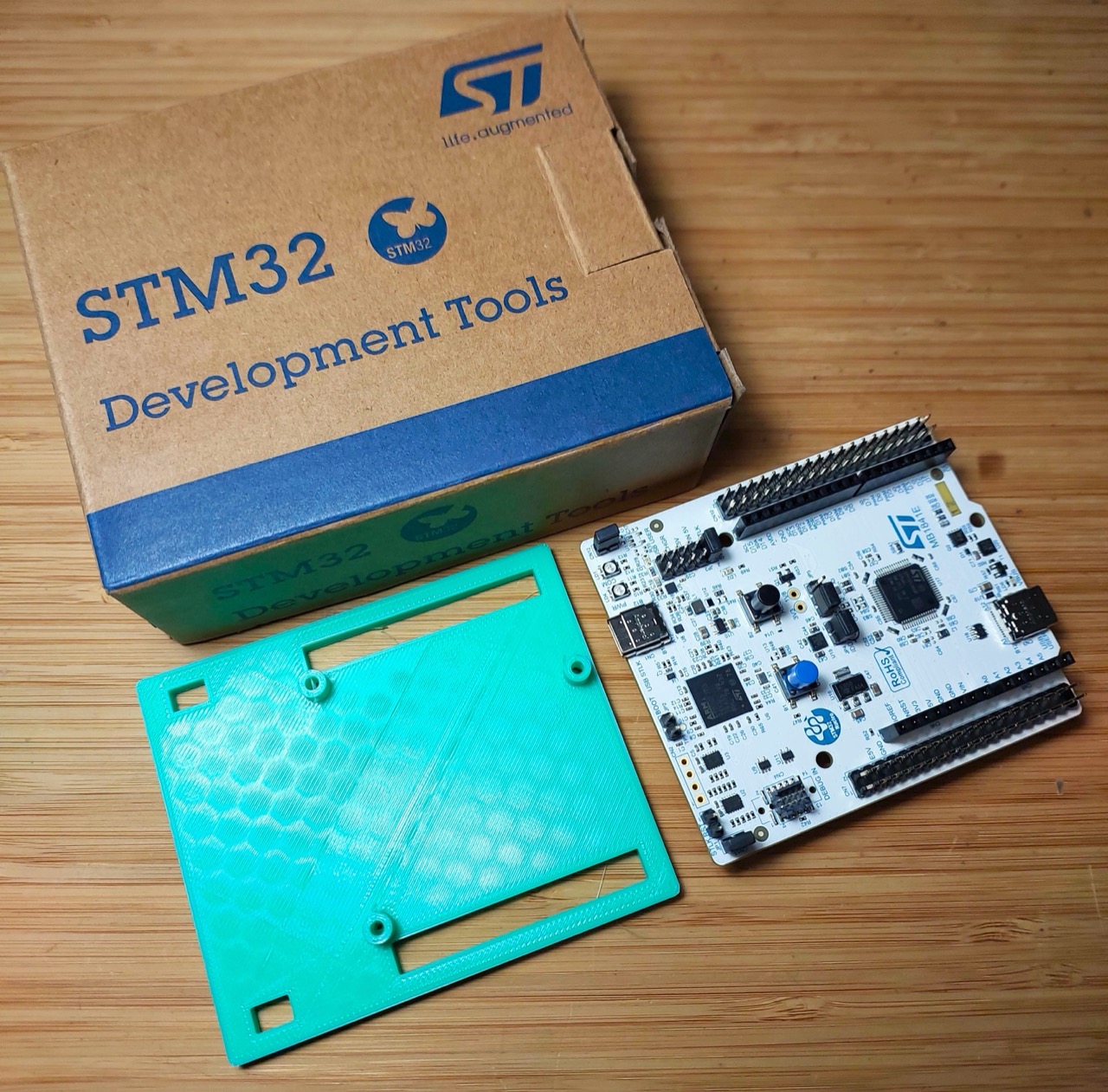

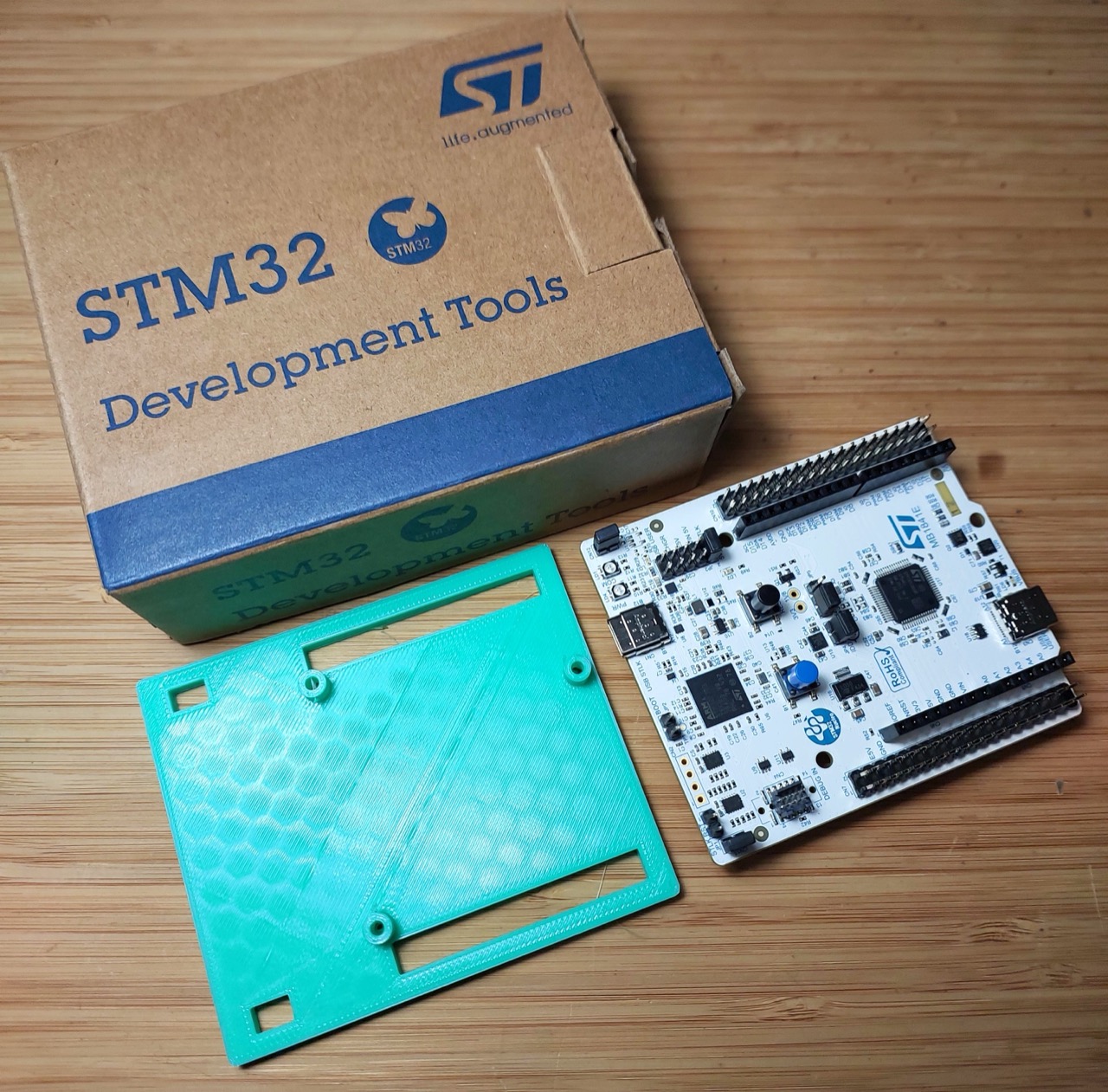

Printed and ready to mount the STM32U385RG:

1589714_build01a

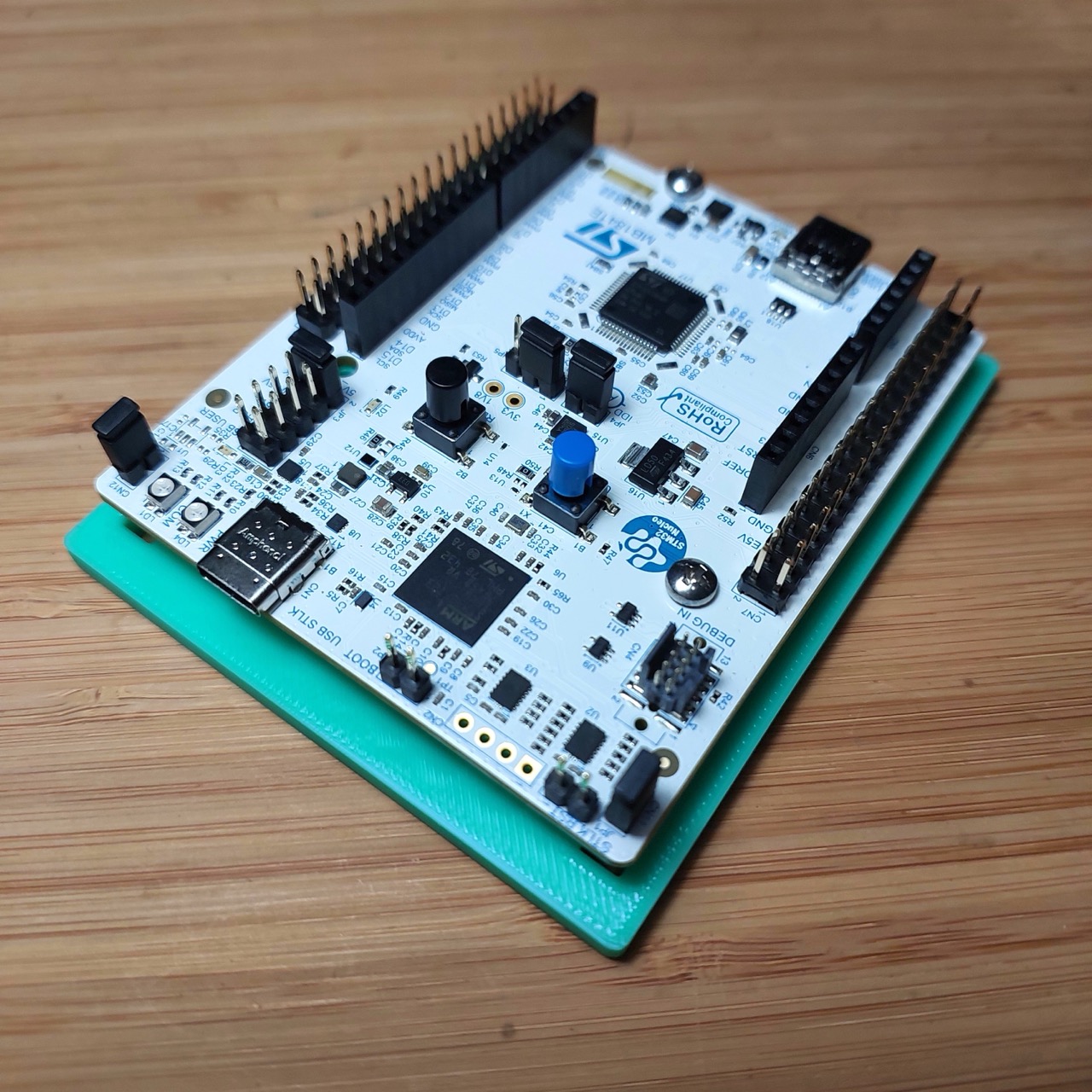

Attached with M2.9x6.5 screws - only used 2, the third is unnecessary and little too tight a fit against the D15 header.

1589714_build01b

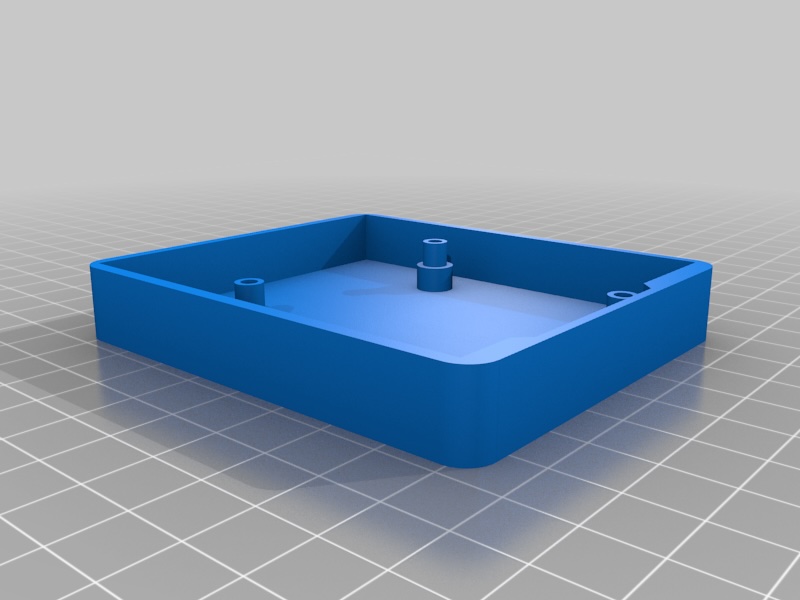

Base 2: Nucleo Case Openscad by ChrisDSA

Not tried yet. A more substantial base; should not require screws to attach the board.

Source: https://www.thingiverse.com/thing:1859561

1859561

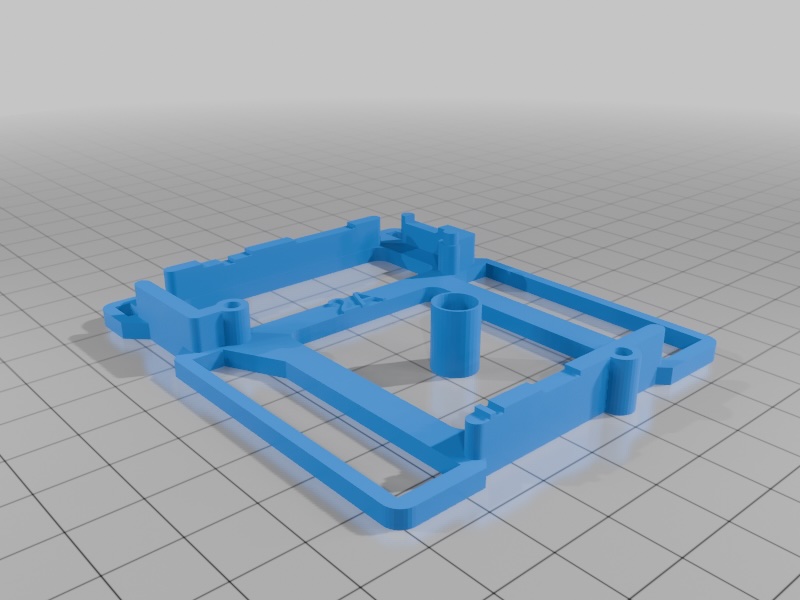

Base 3: Nucleo-64 development board base

Not tried yet. Minimal mounting frame. Seems to be an issue with the central cylinder - seems redundant.

Source: https://www.thingiverse.com/thing:2918243

2918243
