#475 ANENG ANG860B+ Digital Multimeter

Specifications and notes on the ANENG ANG860B+ digital multimeter

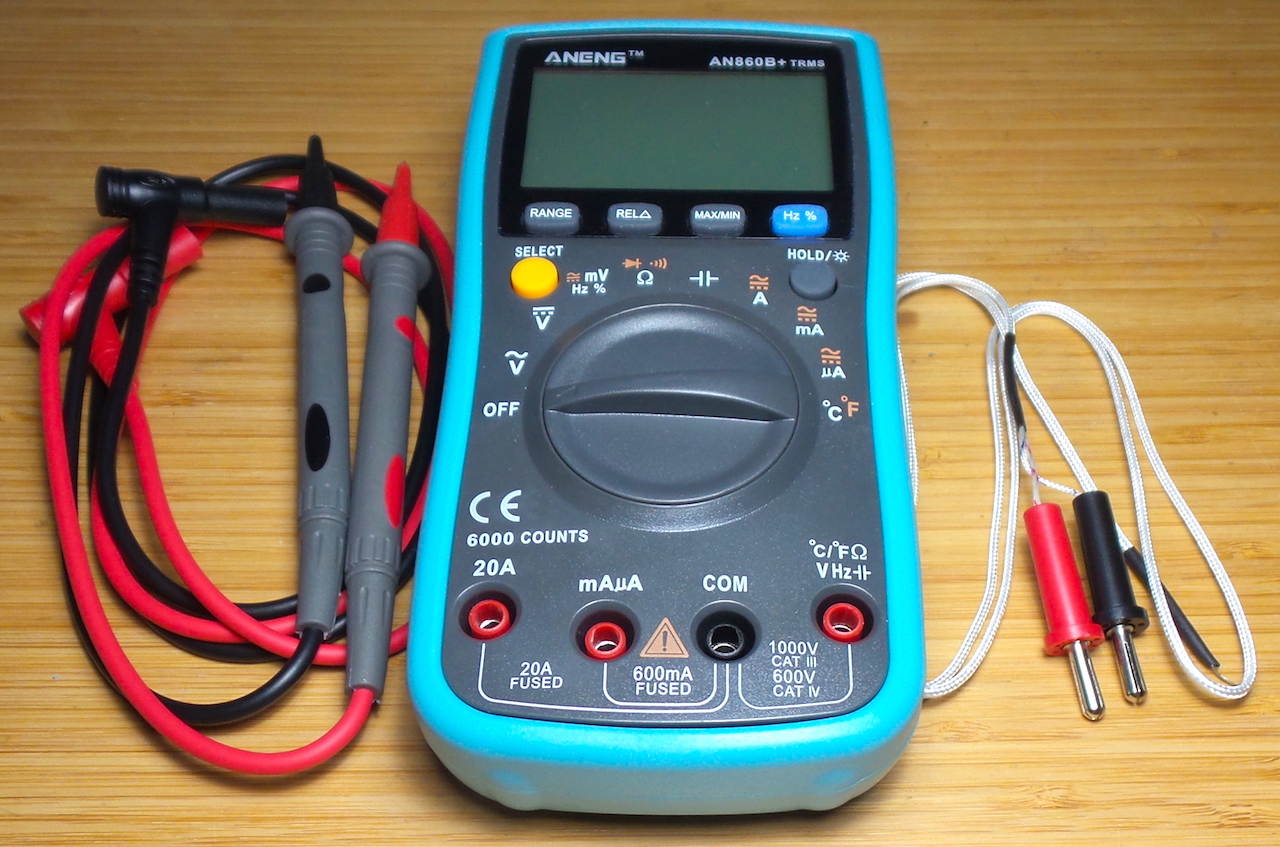

Build

Notes

I wanted another DMM for bench, and took a punt on the ANENG ANG860B+ Digital Multimeter. It’s available at a very nice price, and includes some more advanced features not always found on models in the same price range (µA, frequency, temperature). It doesn’t include transistor tester or inductance measurement (but I have other tools for this).

Thoughts after some initial testing:

  • very nice display
  • appears to be very accurate
  • I don’t like having the off switch on the measurement selection dial:
    • clunking it around every time to turn on the device is not very efficient, and I worry the switch selector will be the first thing to fail
    • I’d prefer a separate on/off switch, allowing the measurement selector to be left in the same position most of the time

Specifications

Features:

  • Auto/manual ranges
  • True RMS measurement
  • 550V protection in resistance and capacitance ranges
  • Large LCD display,MAX display 6000 counts
  • Sample rate: 3 times per second
  • backlight
  • MAX/MIN data hold
  • Polarity identification
  • Low voltage indication
  • 20A high current measurement is available
  • Auto power off can be cancelled manually
  • Main measurements:AC/DC Voltage, AC/DC Current, Resistance, Capacitance,
  • Diode and Continuity Testing,Temperature, Frequency and duty cycle.
  • Weight: 420g
  • Measurement mode: Double-integral style A/D transform
  • Over range indication: OL
  • Working environment: 0~40°, relative humidity < 80%
  • Supply power: 3V (1.5V AA batteries * 2 Pcs not include )
  • Dimension: 18090.545mm
  • Accessories: User’s manual, a shockproof cover, a pair of test leads, a TP01K thermocouple
Measurement Specification Range/Tolerance
Temperature -20° to 1000°(-4° to 1832°) ﹤400° ±(1.0%+5),≥400°±(1.5%+15), ﹤752° ±(1.0%+5),≥752°±(1.5%+15)
Capacitance 10pF to 6000uF 10nF(±5.0+20),100nF/1uF/10uF/100uF(±2.0%+5),1000uF/10000uF(±5.0%+5)
AC volts 0.1mV to 750V 600mV(±3.0%+3),6V/60V/600V/750V(±1.0%+3)
DC volts 0.1mV to 1000V 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
AC current 0.1uA to 20A 600uA/6000uA(±1.5%+3),60mA/600mA/20A(±1.5%+3)
DC current 0.1uA to 20A 600uA/6000uA(±1.5%+3),60mA/600mA/20A(±1.5%+3)
Resistance 0.1Ω to 60MΩ 600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
Duty cycle 1% to 99% 1% to 99%(±1%)
Frequency 1Hz to 20MHz 5/50/500/5k/50k/500k/5M/20M (±0.1+3)

Credits and References
