#862 MT3608 Boost Converter Modules

Low-cost boost converter modules based on the MT3608 IC, with optional USB input connectors, and output adjustable up to 28V from input 2V~24V DC.

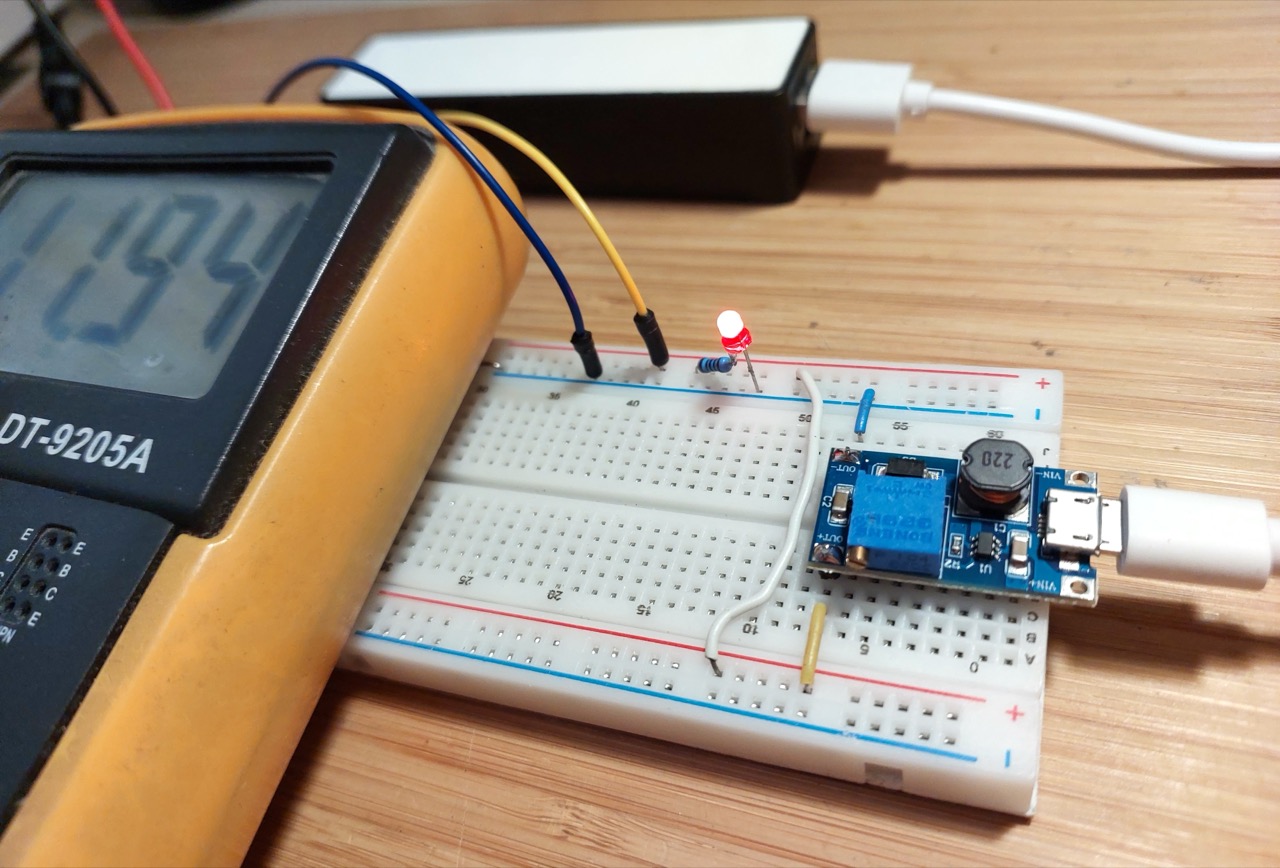

Build

Notes

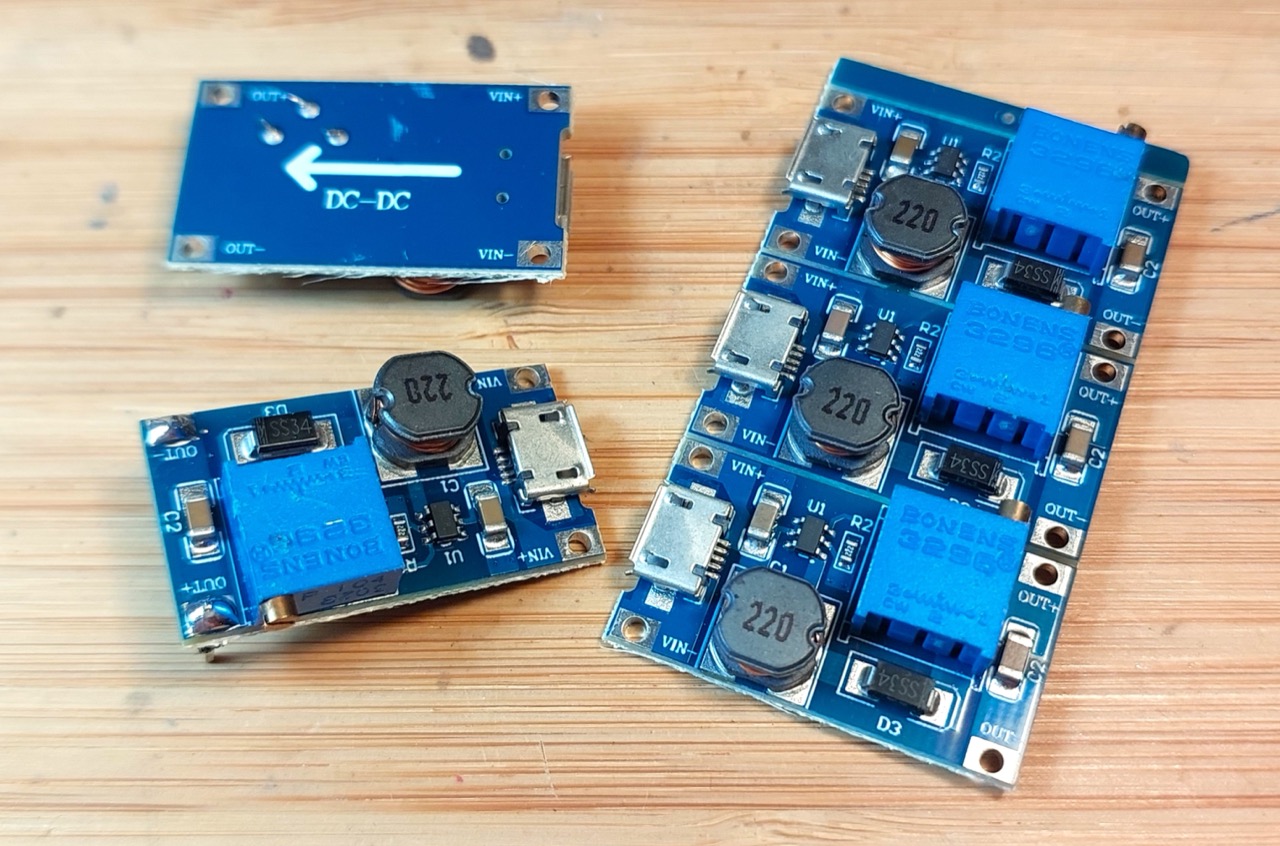

MT3608-based boost converter modules are available from many sources. The aliexpress seller I purchased from offers the module in 3 variants. It is the same board but with different input connectors:

  • input and output connector pads for solder or mechanical connection
  • micro USB input connector
  • USB-C input connector

modules

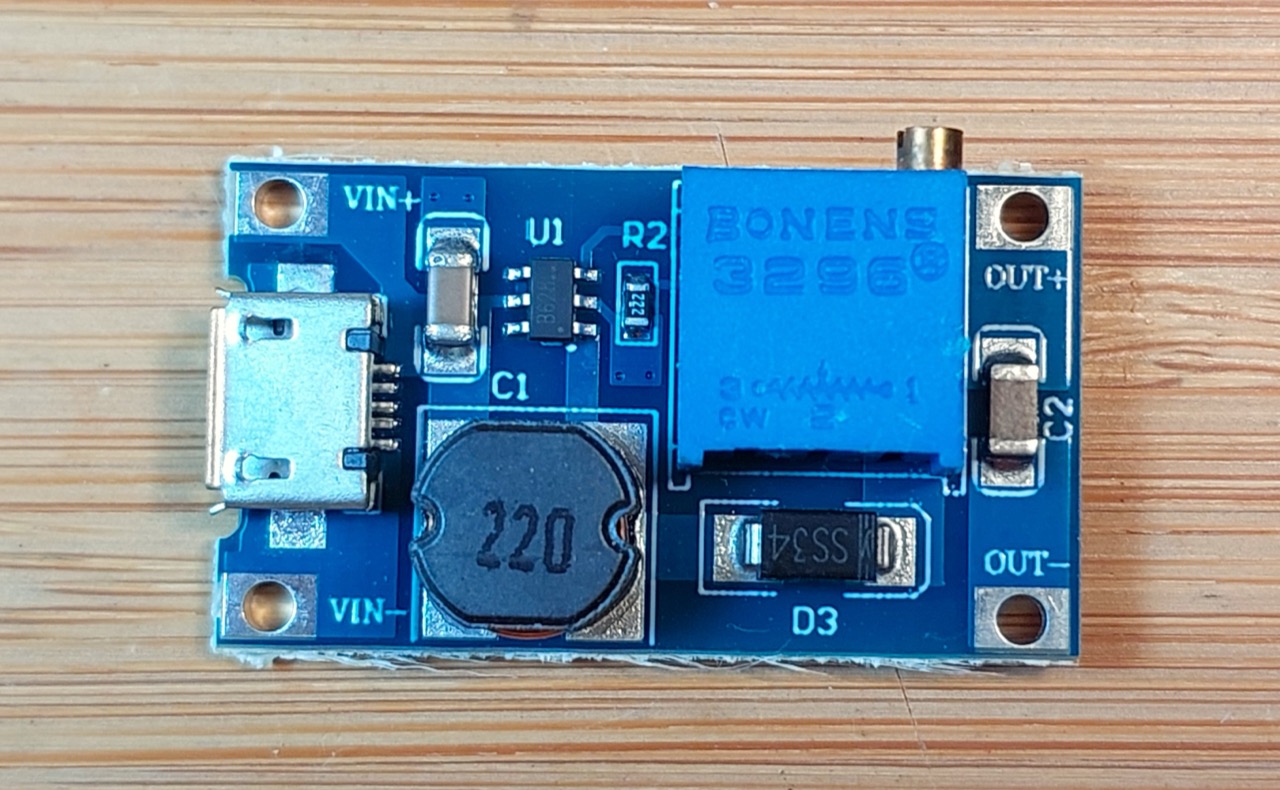

I am testing the module with the micro USB connector:

module

About the MT3608

The MT3608 (parts also produced as the B6286) is a very efficient boost converter that can deliver up to 24V at 4A. It requires only 6 external passive components, and is readily available as a complete module for as little as $0.40.

  • 2V to 24V Input Voltage
  • 1.2MHz Fixed Switching Frequency
  • Internal 4A Switch Current Limit
  • Internal Compensation
  • Up to 28V Output Voltage
  • Automatic Pulse Frequency Modulation Mode at Light Loads
  • up to 97% Efficiency
  • SOT23-6 package

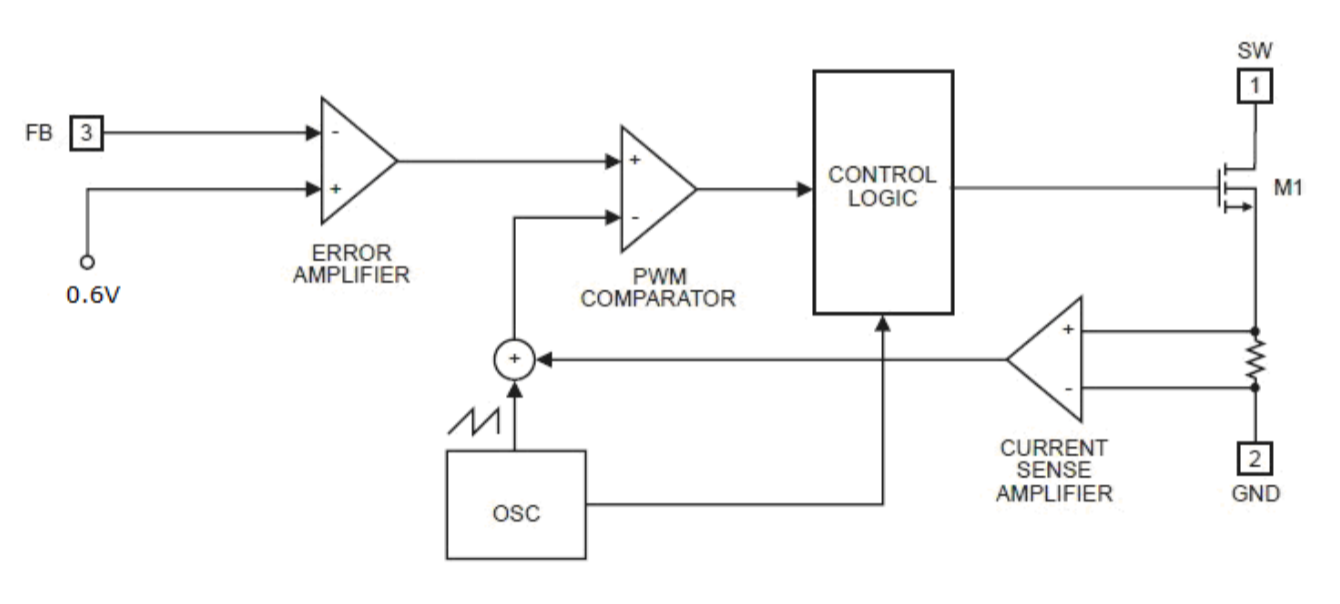

MT3608_functional

Quick Test

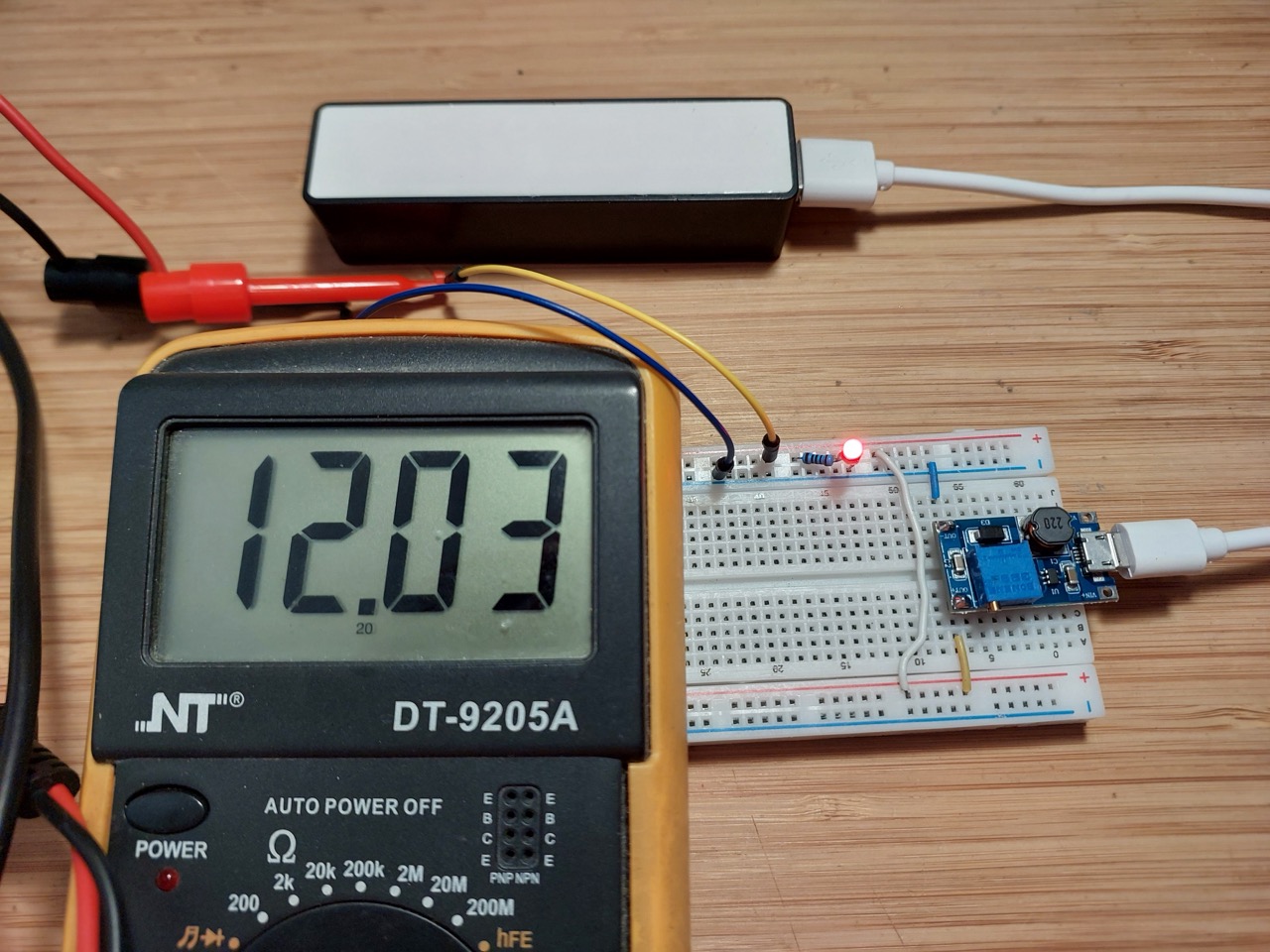

With 5V input, testing regulation at 12V output:

bb-test-12v

Credits and References

About LEAP#862
PowerSMPSBoost ConverterStep-up ConverterMT3608
