#819 74LS161 Binary Counter

About the 74LS161 4-bit Binary Counter with Asynchronous Reset, illustrated with a simple counter demonstration.

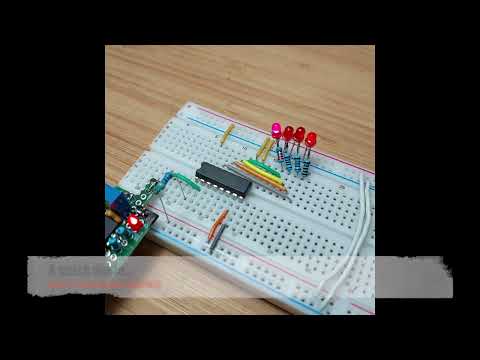

Here’s a quick demo..

Notes

The 74LS161 is a synchronous 4-bit binary counter from the Low-Power Schottky (LS) TTL family. It counts upward on each rising edge of the clock when enabled, with all flip-flops clocked simultaneously to ensure glitch-free operation. The device includes synchronous parallel load inputs, allowing a specific 4-bit value to be preset, as well as asynchronous clear to reset the counter to zero.

Operating from a 5 V supply, the 74LS161 offers fast switching speeds and predictable timing, making it suitable for high-speed counting, frequency division, and timing applications. It has been widely used in digital clocks, counters, state machines, and control logic in classic TTL-based systems. Its synchronous design provides cleaner and more reliable operation than older ripple counters, which is why it became a staple in both educational and industrial digital electronics.

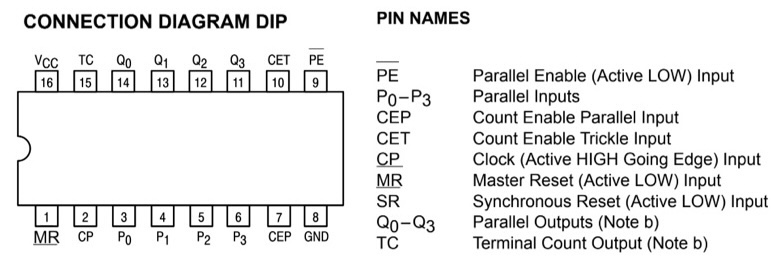

74LS161 Pinout

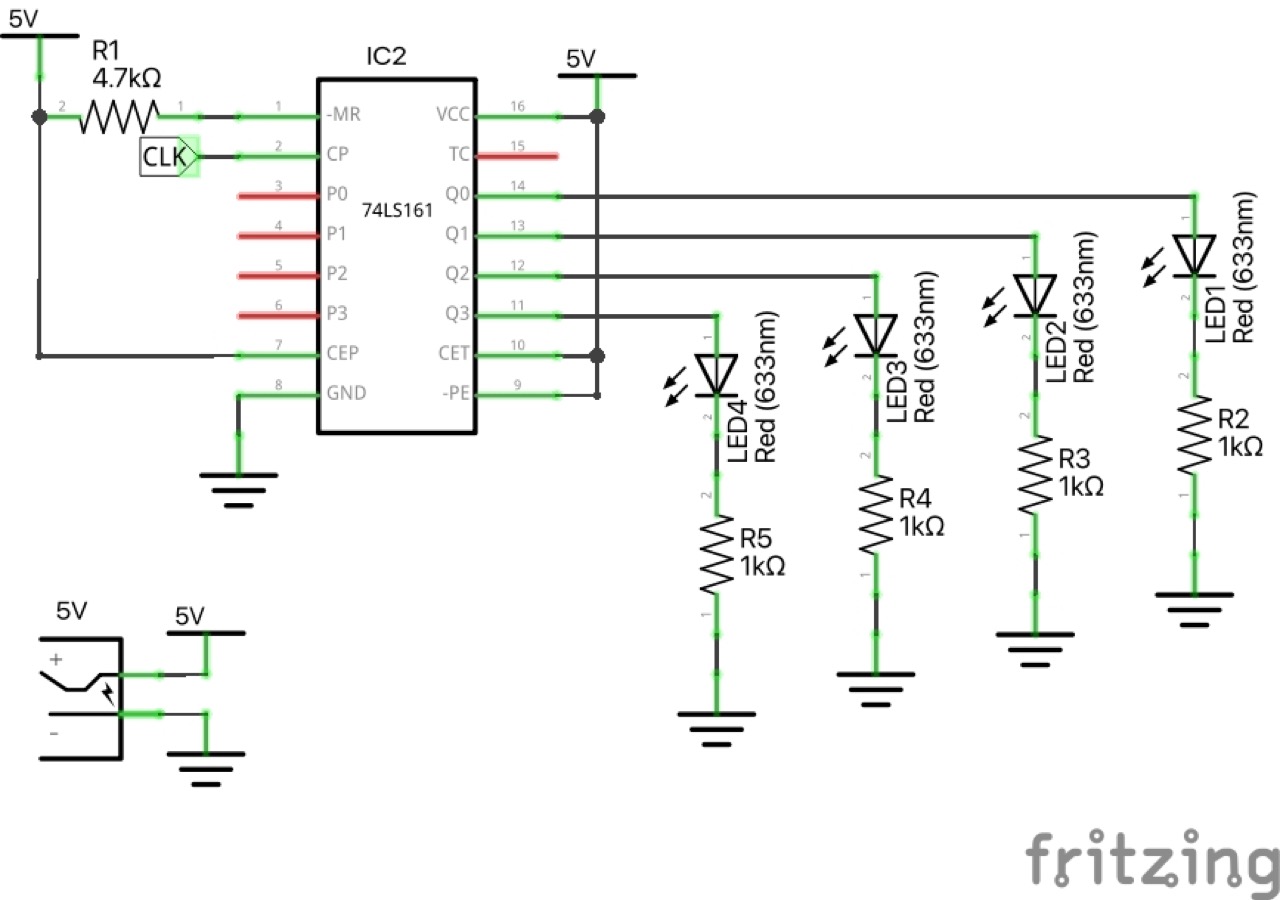

Circuit Design

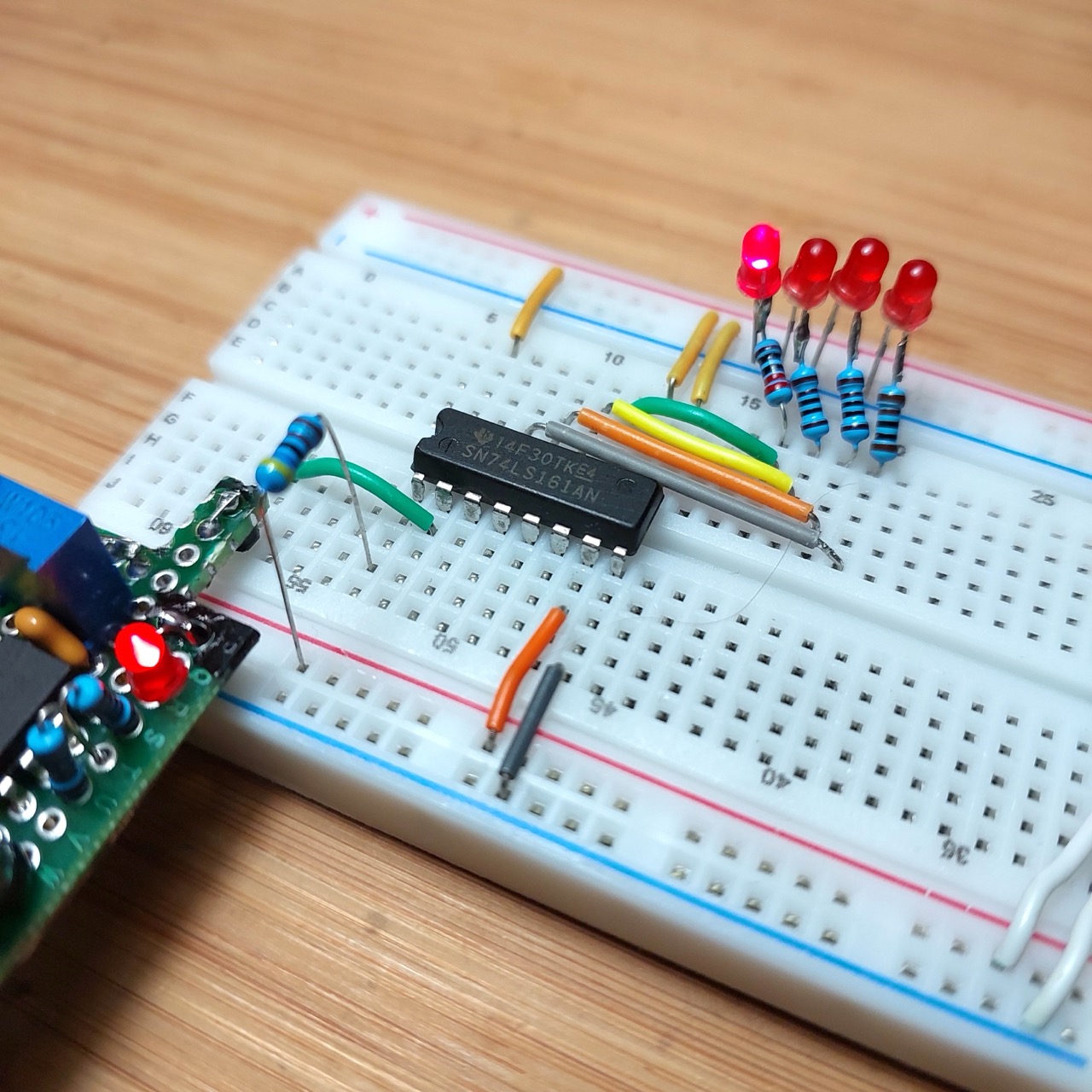

This is a basic demonstration of the 74LS161. Key features of the circuit:

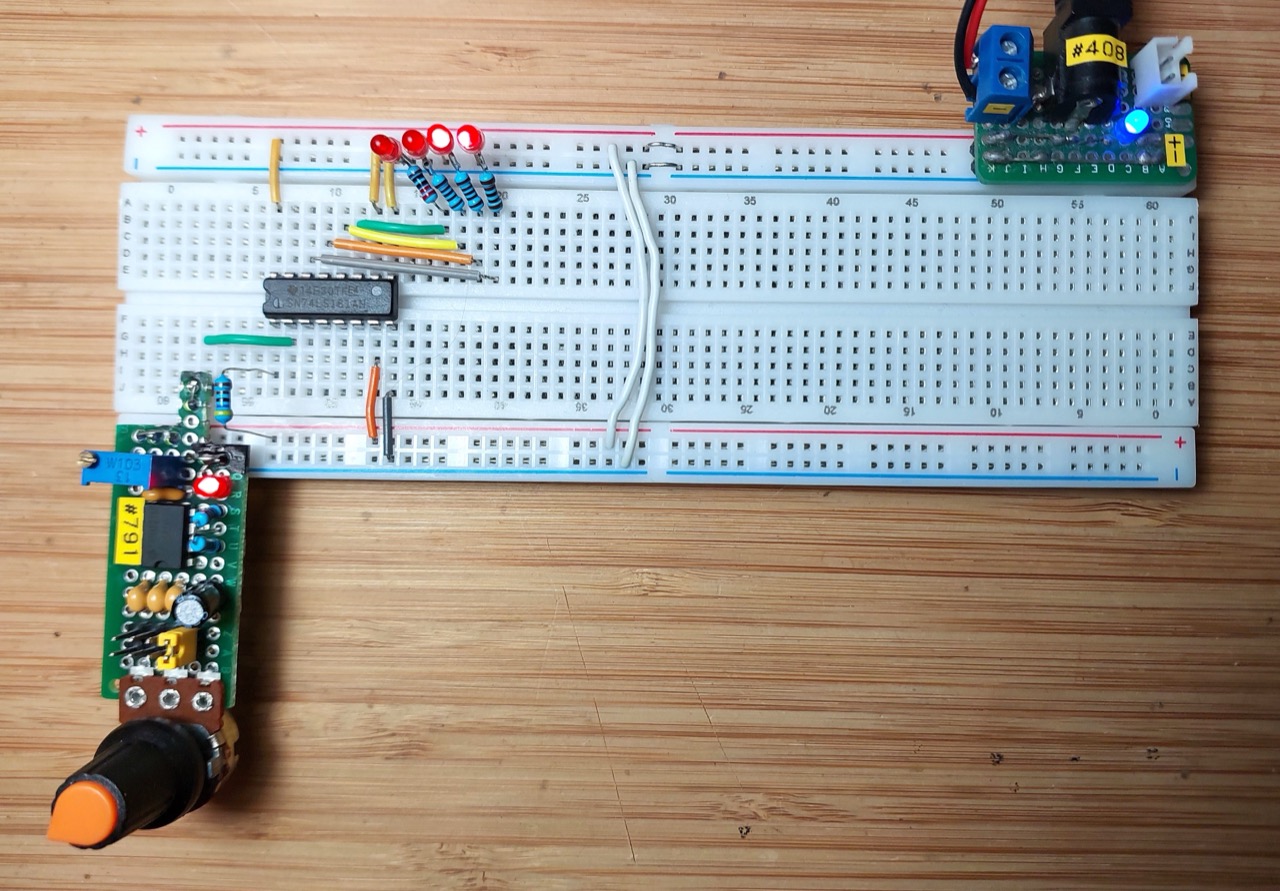

• clock pulse is provided by LEAP#791 555 Breadboard Pulse Generator
• the 74LS161 is configure to provide a sequential BCD count
  • Master Reset is pulled high with a resistor (as recommended in the datasheet)

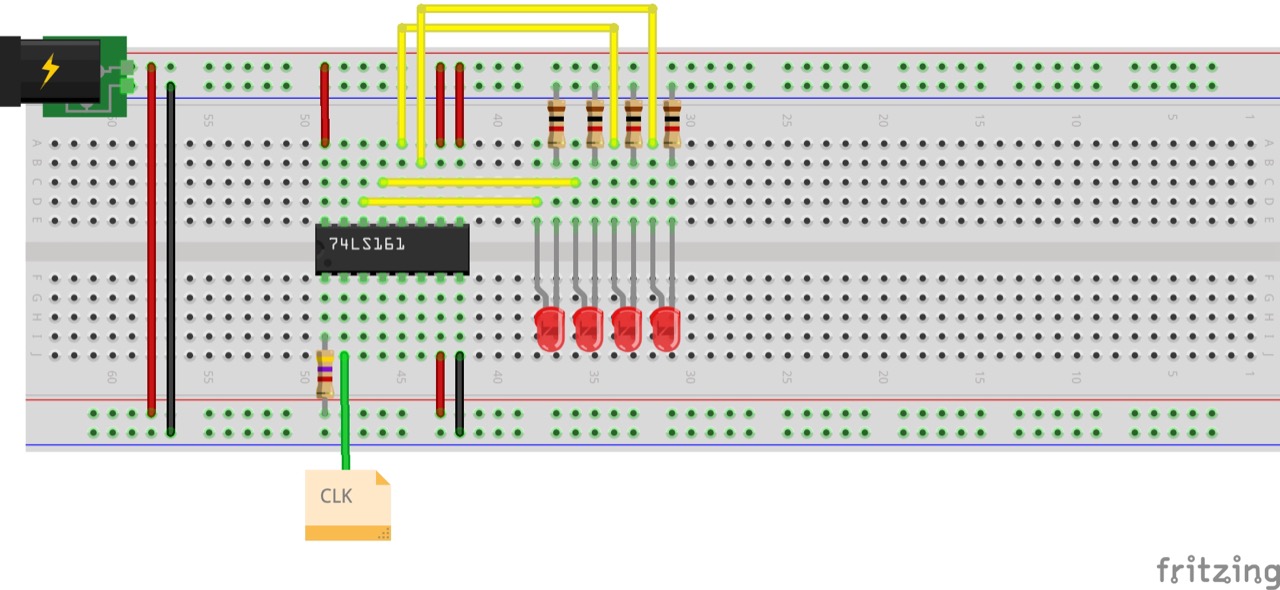

Designed with Fritzing: see BcdCounter.fzz.

Credits and References

• 74LS161 datasheet - 4-bit Binary Counter with Asynchronous Reset
