#434 krell

Building the Boldport Krell - a handheld DSP synthesiser built around a Microchip dsPIC and a design from madlab.

Build

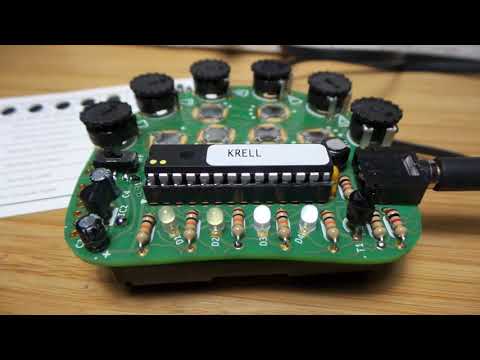

Here’s a quick demo..

clip

Notes

Krell is a handheld DSP synthesiser. Buttons and potentiometers dial up a range of sounds. The Boldport project is a remix of a soldering project by James Hutchby of MadLab.

At the core of the circuit is a Microchip dsPIC33EP128MC202-I/SP. It’s an interesting choice - a digital signal controller that is really designed for precision motor control, now put in service of creating music (or at least weird sounds).

Kit

Qty Description
x1 dsPIC microntroller, Microchip dsPIC33EP128MC202-I/SP
x1 3.3V Regulator, TI LP2950-33LPRE3
x1 NPN bipolar transistor, ON BC547CTFR
x1 220μF electrolytic capacitor, Multicomp MCUMR6V3227M6.3X5
x2 10μF electrolytic capacitor, Multicomp MCUMR16V106M4X5
x1 10μF tantalum capacitor, Suntan TS19001C100MSB0A0R
x3 100nF capacitor, Suntan TS170R1H104MSBFB0R
x6 47KΩ trimmer, Piher PT10MV10473A2020-I-PM-S
x6 Black thumbwheel, Piher 5034
x4 White LED, Valcon VDIFFLED-3mm-W
x2 100Ω resistor, Multicomp MCF 0.25W 100R
x1 1KΩ resistor, Multicomp MCF 0.25W 1K
x6 10KΩ resistor, Multicomp MCF 0.25W 10K
x1 Battery holder, TruPower BH 431-1P
x1 3.5mm stereo jack socket, TruConnect 20-0137
x1 28-pin DIP socket, TruConnect 22-0114
x1 DPDT slide switch, C&K JS202011SCQN
x1 Button sheet, Snaptron Peel-N-Place™
x1 PCB

kit_parts kit_pcb_back kit_pcb_front

Circuit

My quick re-draw of the circuit..

Schematic

Construction

It’s a nice simple build this time for just an iron and my favourite 2% Ag solder.

The Snaptron buttons are an interesting construction variation: they come preset with clear adhesive strip. With careful alignment, all buttons stick in place with no soldering required. I can see this being super efficient for small batch assembly.

build_01_back

build_02_front

build_03_with_battery

The finished noise maker..
