#774 STM32U385RG Dev Board

About the STM32U385RG development board, installing STM32CubeIDE on macOS, and making a simple LED blinky demo from scratch.

Build

Notes

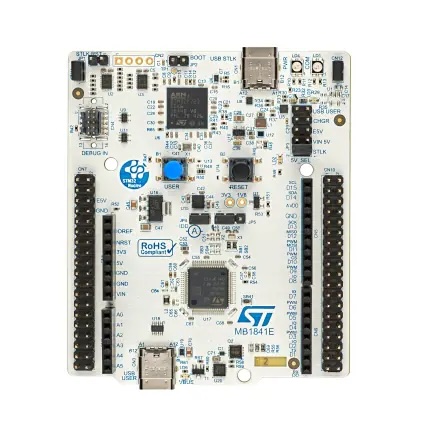

About the NUCLEO-U385RG-Q

The NUCLEO-U385RG-Q evaluation board is an STM32 Nucleo-64 development board with STM32U385RG, supports Arduino and ST morpho connectivity.

nucleo-u385rg-q

Features

  • STM32 microcontroller in an LQFP 64‑pin package
  • Internal SMPS to generate Vcore logic supply, identified by ‘-Q’ suffixed boards
  • USB Type-C® sink device FS
  • One user LED shared with ARDUINO® Uno V3
  • RESET and USER push-buttons
  • 32.768 kHz crystal oscillator
  • Board connectors:
    • USB Type-C®
    • ARDUINO® Uno V3
    • ST morpho extension pin headers for full access to all STM32 I/Os
  • Flexible power-supply options: ST-LINK USB VBUS, user USB connector, or external sources
  • On-board STLINK-V3EC debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
  • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

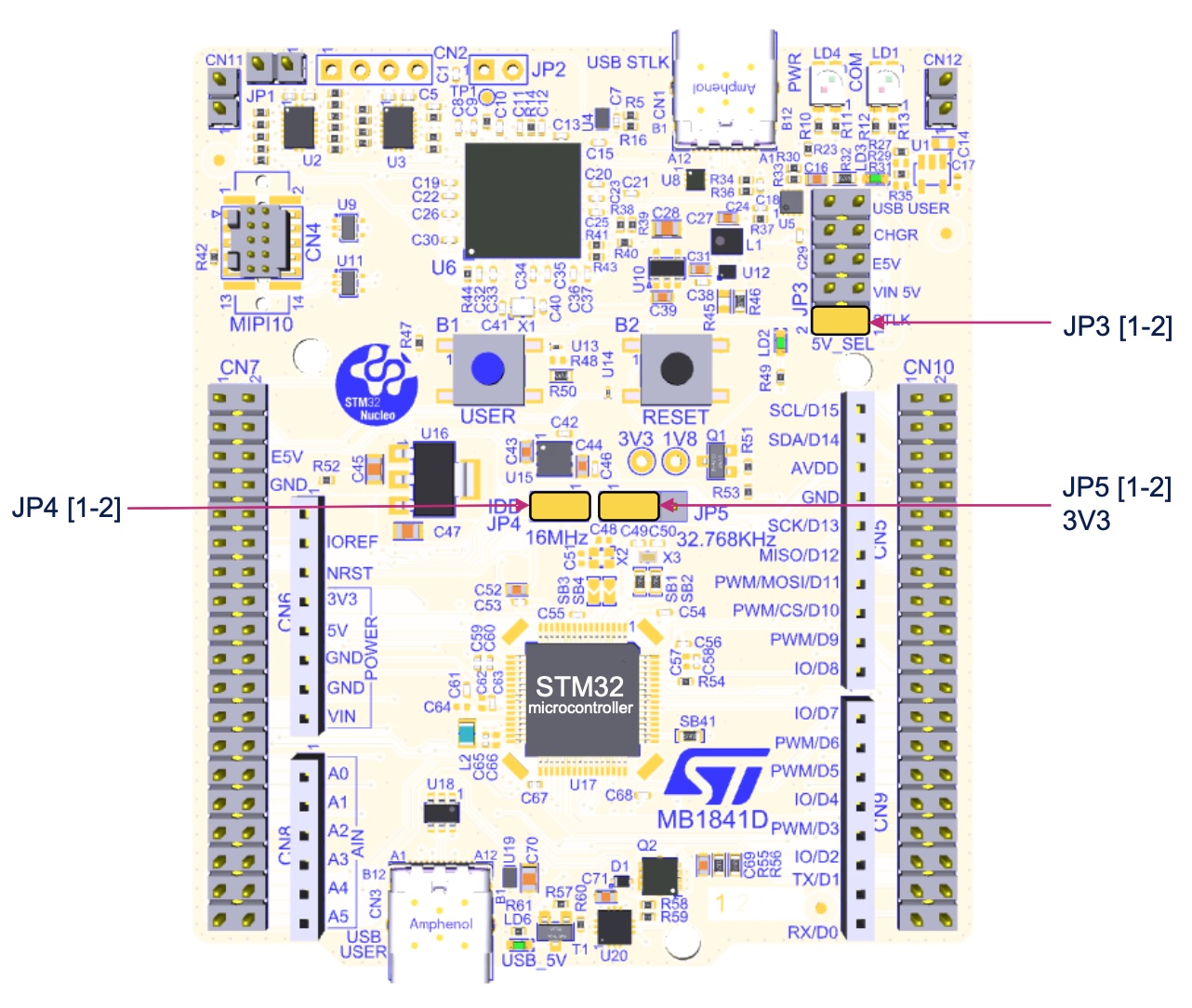

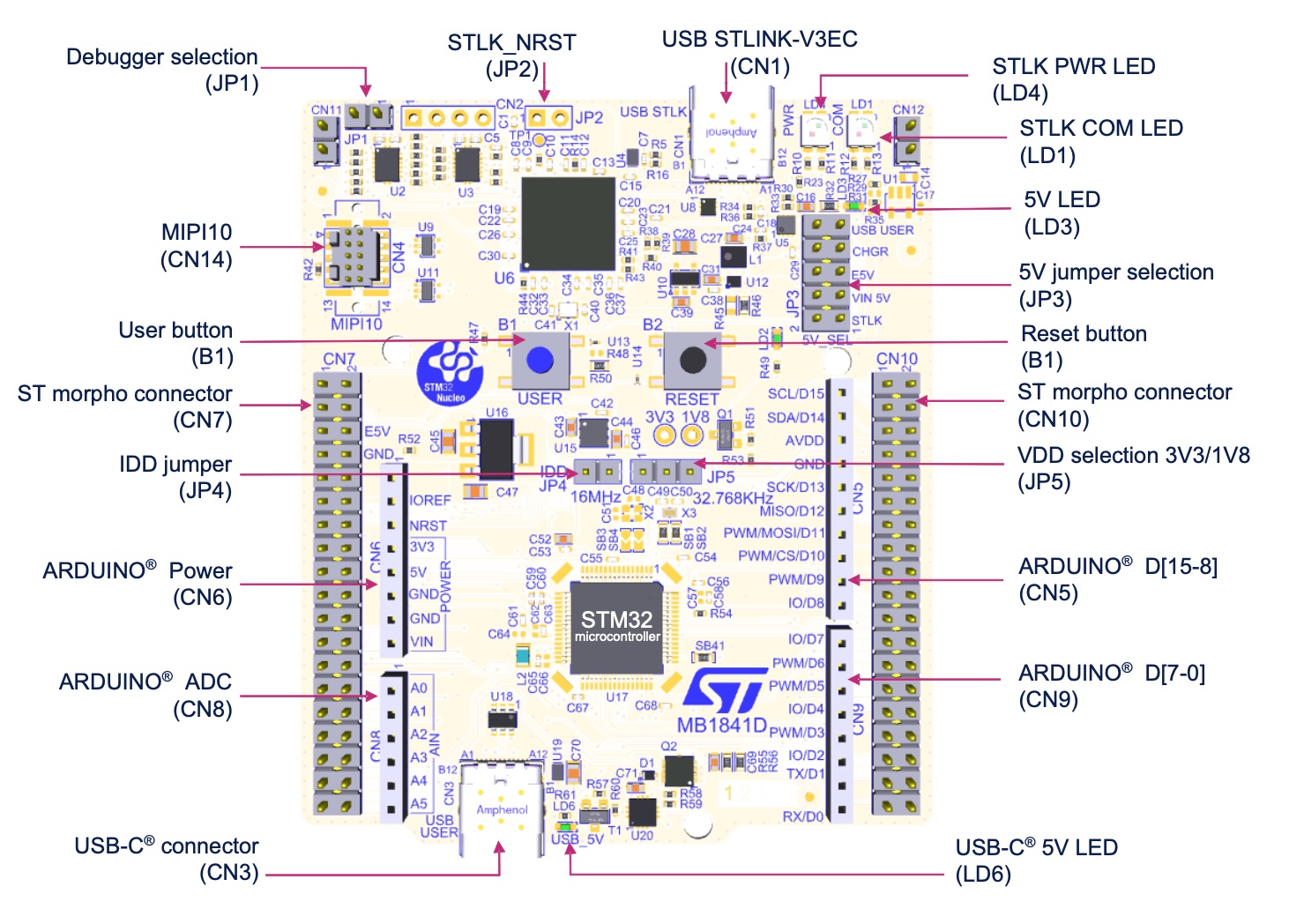

Board Features and Configuration

See https://www.st.com/resource/en/user_manual/um3062-stm32u3u5-nucleo64-board-mb1841-stmicroelectronics.pdf

board-layout

board-config

STM32 NUCLEO Features

clip

  • The LED is blinking red: the first USB enumeration with the PC is taking place. If an STLinkUpgrade application is running, the firmware is being programmed.
  • The LED is red: the ST-LINK is in the idle state (the USB enumeration with the PC is finished and the ST-LINK is waiting for an application to connect).
  • The LED is blinking green and red alternately: data is being exchanged between the target and the PC.
  • The LED is green: the last communication with the target has been successful.
  • The LED is orange: the last communication with the target has failed.
  • The LED is blinking red then orange: USB port detection failure. Check the USB connectors and cable.

Building a “blinky” Demo

To exercise the board, I’ll create a program to flash the onboard LED, using the STM32CubeIDE on macOS.

Installing STM32CubeIDE

STM32CubeIDE is an all-in-one multi-OS development tool, which is part of the STM32Cube software ecosystem.

The ID is available for free down download here.

More information about the IDE:

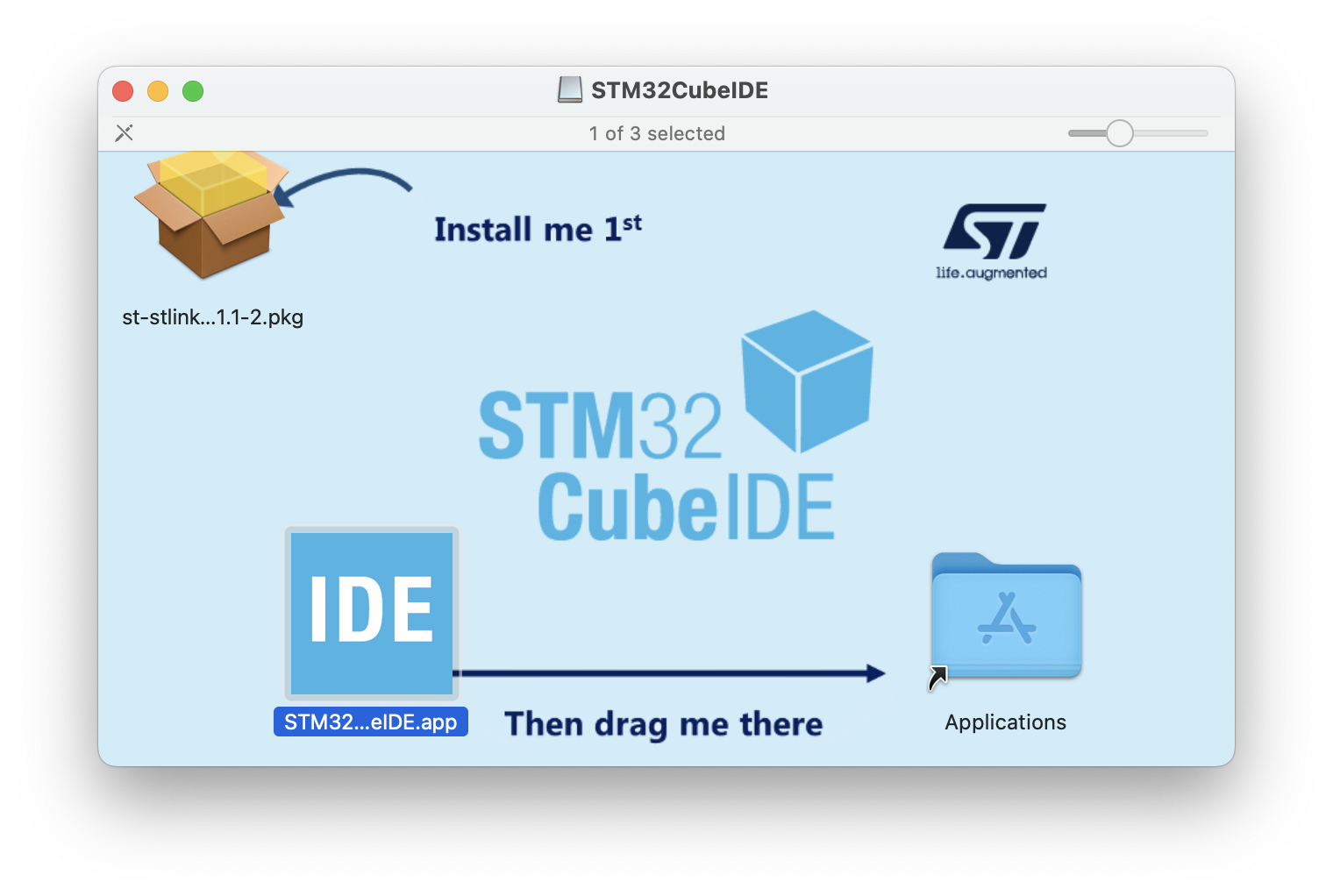

Installing on macOS:

ide-install

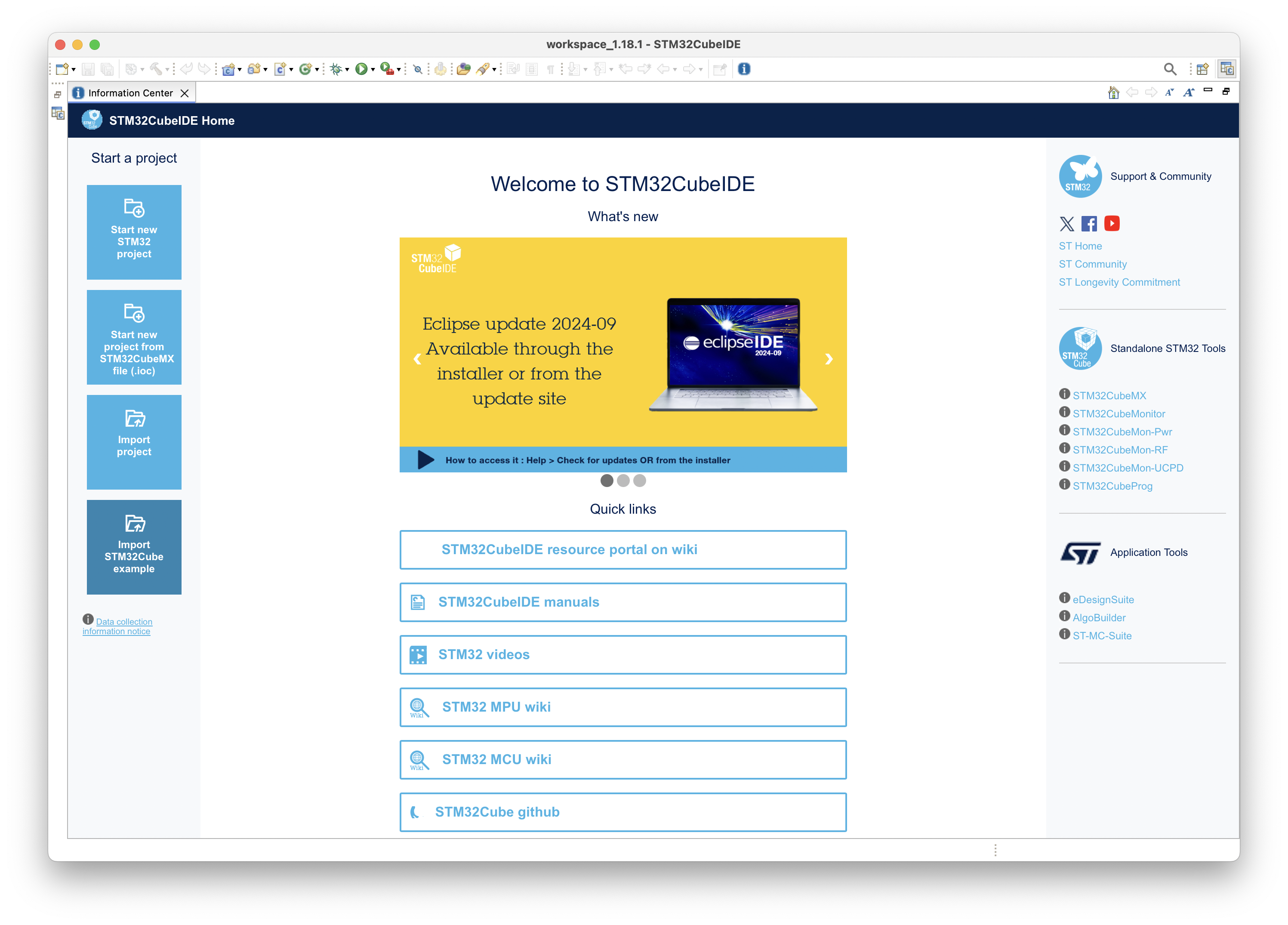

Welcome screen:

  • to enable updates and examples etc, sign into myST from “Help > STM32Cube Updates > connection to myST”

ide-welcome

Create new STM32 Project

Start new STM32 project in the blinky folder.

Adding STM32U3xx_Nucleo BSP Driver

To add specific board support for STM32U3xx_Nucleo, need to add the driver. I was a little surprised this is not handled through the IDE, but it seems we just need to copy the correct BSP files into our project.

The STM32U3xx_Nucleo BSP Driver fiels can be obtained from either:

I copyied and including the files as follows:

  • copied STM32U3xx_Nucleo drivers to blinky/Drivers/BSP/STM32U3xx_Nucleo/
  • “File > Refresh” the project to have the new files appear in the IDE
  • Right-click the blinky/Drivers/BSP/STM32U3xx_Nucleo/ driver folder and choose “Add/remove include path” add to debug and release
  • copy stm32u3xx_nucleo_conf_template.h from the BSP folder to the project includes as stm32u3xx_nucleo_conf.h. It did not need any modification - defaults work OK

Customizing the main function

A simple blinky in main.c (with boilerplate comments removed):

int main(void)
{
  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* Configure the system clock */
  SystemClock_Config();

  /* Initialize all configured peripherals */
  MX_ICACHE_Init();

   /* -1- Enable GPIO Clock (to be able to program the configuration registers) */
  LED2_GPIO_CLK_ENABLE();

  /* -2- Configure IO in output push-pull mode to drive external LEDs */
  GPIO_InitStruct.Mode  = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull  = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
  GPIO_InitStruct.Pin = LED2_PIN;
  HAL_GPIO_Init(LED2_GPIO_PORT, &GPIO_InitStruct);

  while (1)
  {
    /* Toggle LED2 with delay */
    HAL_GPIO_TogglePin(LED2_GPIO_PORT, LED2_PIN);
    HAL_Delay(500);
  }
}

Programming

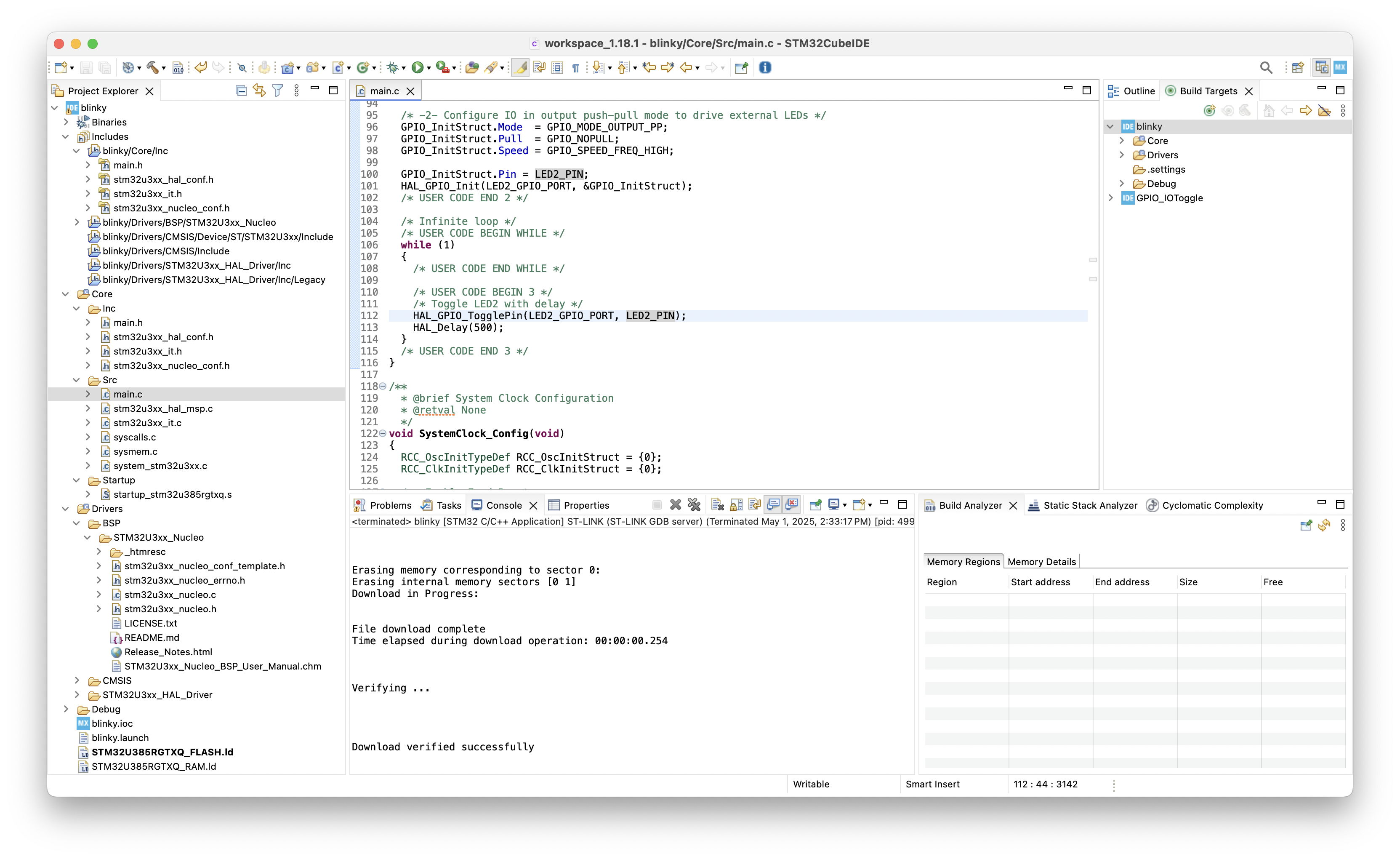

With the board connected with USB-C cable, build and run the project

ide-project

Transcript from the console:



STMicroelectronics ST-LINK GDB server. Version 7.10.0
Copyright (c) 2025, STMicroelectronics. All rights reserved.

Starting server with the following options:
        Persistent Mode            : Disabled
        Logging Level              : 1
        Listen Port Number         : 61234
        Status Refresh Delay       : 15s
        Verbose Mode               : Disabled
        SWD Debug                  : Enabled
        InitWhile                  : Enabled

Waiting for debugger connection...
Debugger connected
Waiting for debugger connection...
Debugger connected
Waiting for debugger connection...
      -------------------------------------------------------------------
                        STM32CubeProgrammer v2.19.0
      -------------------------------------------------------------------



Log output file:   /tmp/STM32CubeProgrammer_5XnD4q.log
ST-LINK SN  : 0027002F3333511731363730
ST-LINK FW  : V3J16M7
Board       : NUCLEO-U385RG-Q
Voltage     : 3.29V
SWD freq    : 8000 KHz
Connect mode: Under Reset
Reset mode  : Hardware reset
Device ID   : 0x454
Revision ID : Rev Z
Device name : STM32U3xx
Flash size  : 1 MBytes (default)
Device type : MCU
Device CPU  : Cortex-M33
BL Version  : 0xE2
Debug in Low Power mode enabled

      -------------------------------------------------------------------
        Choose flashing speed for Cortex M33 series.(default speed=Reliable)
      -------------------------------------------------------------------

Opening and parsing file: ST-LINK_GDB_server_myMFdf.srec


Memory Programming ...
  File          : ST-LINK_GDB_server_myMFdf.srec
  Size          : 6.11 KB
  Address       : 0x08000000



Erasing memory corresponding to sector 0:
Erasing internal memory sectors [0 1]
Download in Progress:


File download complete
Time elapsed during download operation: 00:00:00.256



Verifying ...




Download verified successfully


Shutting down...
Exit.

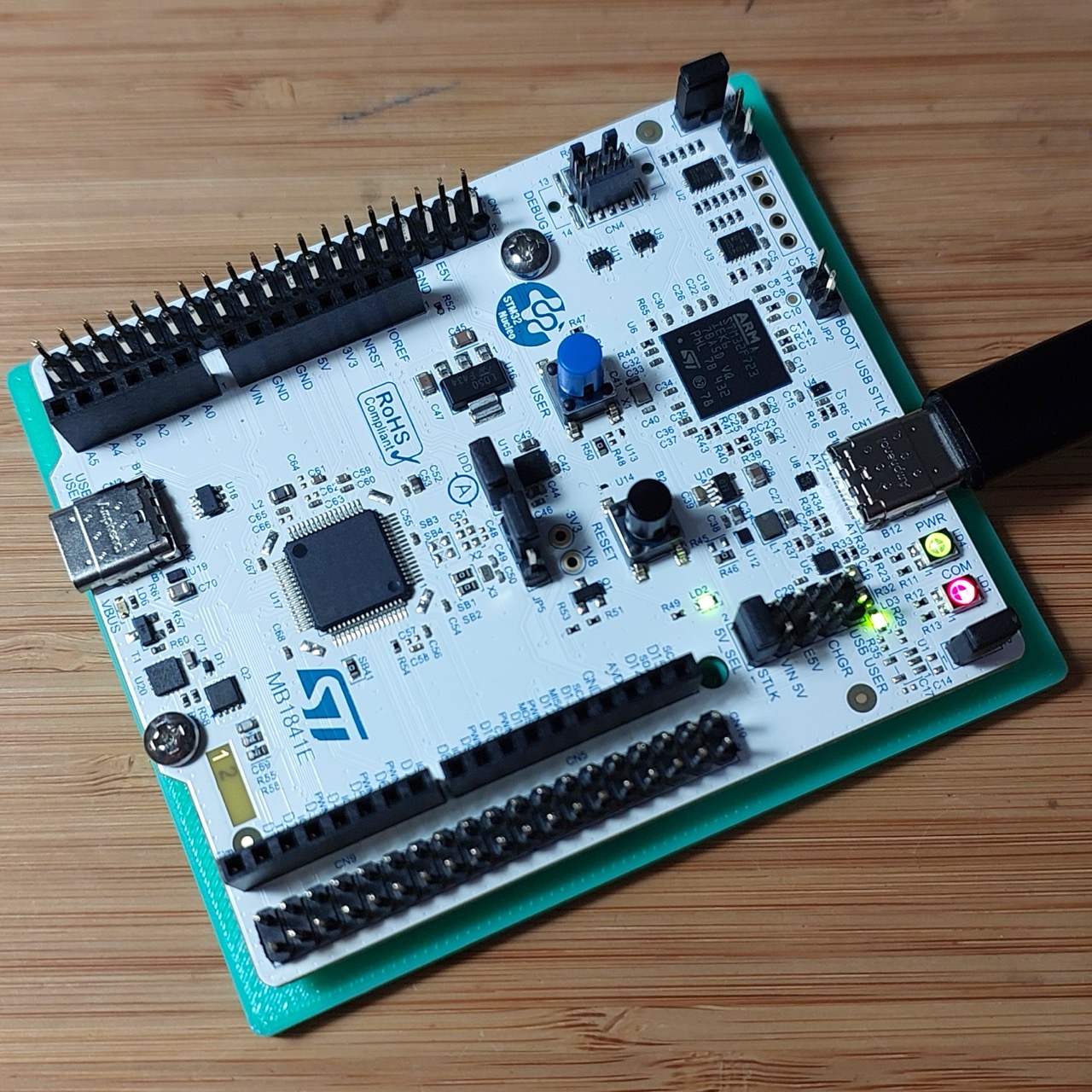

And now I have a blinking LED!
